Product Specifications

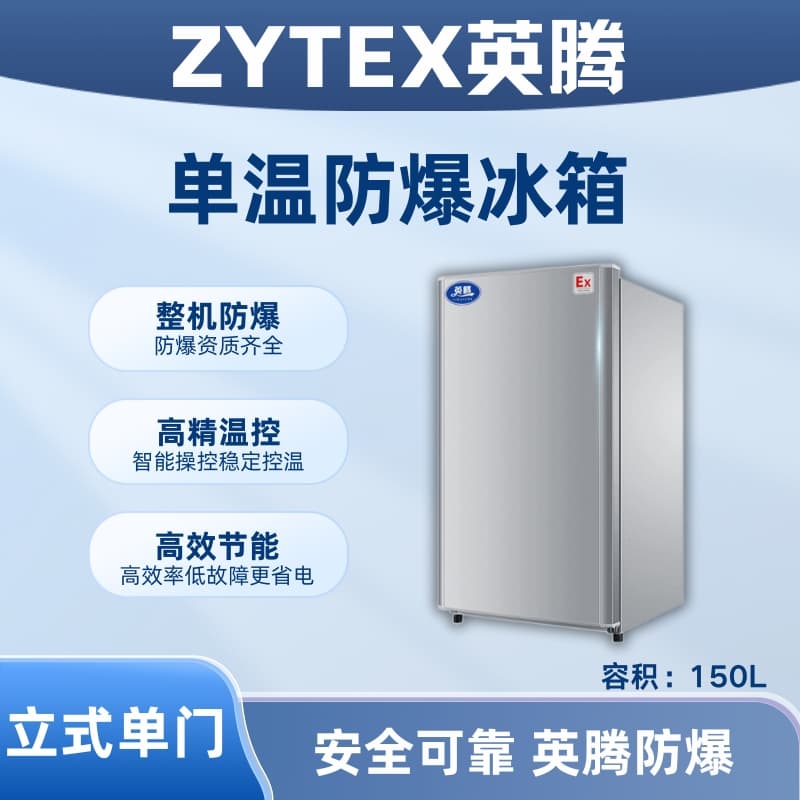

BL-200(LS150L) Vertical Single Door Single Temperature Explosion-Proof Refrigerator

Model: BL-200(LS150L)

Brand: YingTeng

Single Door, Single Temperature

Power: 220V/50Hz

Power: 135 kW

Noise: ≤41 dB(A)

Power Consumption: 0.75 Kwh/24h

Electrical Shock Protection Type: I

Total Effective Volume: 150L

Refrigeration Capacity: 150L

Refrigeration Capacity: N/A

Freezing capacity: 5kg/24h

Dimensions: 450×485×825mm

Net Weight: 50 kg

Operating Temperature: 0°C ≤ t ≤ 10°C or -30°C ≤ t ≤ -15°C

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliance Co., Ltd.

Note: The above technical specifications are for reference only, and the actual unit should be the criterion.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the physical unit shall prevail.

Explosion-proof Refrigerator Types: Available in single-door upright freezing and refrigeration, double-door upright freezing and refrigeration, left-right door upright freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among others. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive environments. It is ideal for research, oil, chemical, pharmaceutical, and power plant settings where IIA, IIB, T1-T4 groups of combustible gases and steam-air mixtures may form explosive hazards. These explosion-proof refrigerators are suitable for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The full range of explosion-proof refrigerators use brand-name compressors, microcomputer intelligent control, digital display, and offer low noise, stable performance, simple operation, and safety. They are highly favored by the market.

Yinteng explosion-proof refrigerators comply with the standard of execution

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 1: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Protection Type"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with 'm' Type of Encapsulation Protection"

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

Yinteng explosion-proof refrigerator product features

Insulated glass design, excellent thermal performance, effective anti-fogging, and excellent display results.

Extra-thick foam layer with thermal insulation, high-efficiency thick precision thermal insulation, enhanced thermal retention effect.

Swivel wheel design, easy and light to move

Branded compressor, high-efficiency cooling, low noise, low power consumption, and stable performance; Adjustable shelves, adjustable layer heights for easy storage.

220V/110V available for your choice.

Precision Computer Temperature Control System: Equipped with a precision temperature sensor inside the chamber to maintain stable internal temperature; an intelligent fan forced air circulation system ensures uniform temperature distribution within the chamber.

Automatic Temperature Control: High-brightness digital display, temperature setting within the range of 2°C to 8°C, display accuracy of 0.1°C. Uses non-fluorine environmentally friendly refrigerant, international brand high-efficiency compressor, energy-saving and quiet.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: Equipped with high-temperature and low-temperature alarms, sensor failure alerts, and more, ensuring safer storage of items; door with lock to prevent unauthorized access.

Yinteng Explosion-proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, or II C, for explosive gas mixtures with temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of Class IC, manufactured in accordance with industrial environmental usage requirements.
