Brand: YingTeng
Cooling Capacity: 49 kW
Heating Capacity: 41 kW
Total Power of Unit: 13.0kW
Energy Efficiency Ratio: 3.77
Airflow: 4400 m³/h
Static Pressure Outside of the Machine: 200 Pa
Motor Power: 1.1 kW
Electric Heating (optional): 12kW
Power: 380V/3N - 50Hz
Indoor unit dimensions (Length × Width × Height mm): 1050×1250×717
Pipe Fitting: DN25
Weight: 170 kg
Type of Compression: Hermetically Sealed Compressor
Compressor Quantity: 2
Single-press machine operating current: 11.2A
Total Outdoor Unit Power: 11.9kW
Outdoor Unit Quantity: 1
Single outdoor unit dimensions (Length × Width × Height mm): 1950×1080×1050
Weight: 480 kg
Rated Current for Refrigeration: 24.3A
Heating rated current: 23.7A
*Rated operating current: 28.9A
Pipe connection size: 2 * Φ15.88mm
Pipe connector size: 2 x Φ22.2mm
Explosion-proof Marking: Ex db eb ib mb lIB T4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.

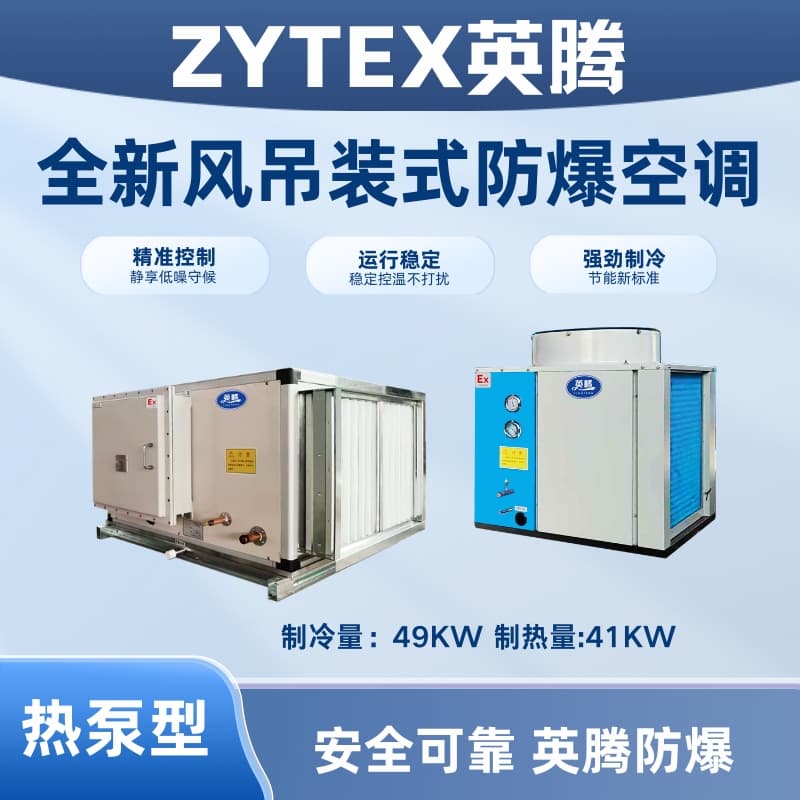

YingTeng's new ceiling-mounted explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb/Ex db eb ib mb IIC T4 Gb.
Note: The above technical specifications are for reference only; the physical unit is the definitive standard.
1. Refrigeration/heat data is for a connection pipe length of 7.5 meters between indoor and outdoor.
2. Customized cooling capacity is measured under nominal air volume and outdoor wet-bulb/dry-bulb temperatures of 35/28°C.
3. Customized heat output is measured under nominal air volume and outdoor dry/wet bulb temperatures of 7/6℃.
4. The unit was not charged with refrigerant upon factory shipment.
5. The static pressure outside the unit in the table is within the design range provided by the manufacturer. Customers must specify the static pressure of the unit when placing an order, and the manufacturer will configure accordingly.
YingTeng's new full-air-cooled overhead installation air conditioning unit series complies with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2 - 2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.3-2021 "Explosive Atmospheres *Part 3: Equipment protected by intrinsic safety 'i'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng new wind hoisting type air conditioning unit can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m;
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air, from Group II A, II B, and T1 to T4 categories.
The "YingTeng" new series of air-cooled packaged units for overhead installation have been specially processed with explosion-proof technology, making them suitable for 1 and 2 hazard zones with flammable and explosive environments. They are widely used in scientific research, oil, chemical, pharmaceutical, and power plant settings where IIA, IIB, T1 to T4 combustible gas, steam, and air mixtures may pose explosion risks. These units for overhead installation are ideal for areas requiring temperature control. The YingTeng overhead installation air-cooled packaged units have passed inspections by the National Supervision and Inspection Center for Explosion-Proof Electrical Product Quality and have been issued explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The complete series of YingTeng explosion-proof air conditioners use branded compressors, microcomputer intelligent control, digital display, and offer low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof new air overhead air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Yinteng New Wind Mounting Air Conditioning Unit Product Features
Design flexible, easy installation
Compact structure, small footprint, easy to install.
Environmentally friendly refrigerant with high heat exchange efficiency, low pressure loss, and green, pollution-free operation.
Vast capacity range, diverse models, catering to various application needs across different locations.
Mature and stable control system, high efficiency and energy-saving, guaranteed quality.
Attractive appearance, high-end quality
The unit housing is constructed with a cold bridge-free aluminum alloy frame and a cold bridge-free, screw-free design concept. The housing is formed by connecting double-sided panels with an aluminum skeleton via special clips. The housing features a high-density double-sided color steel plate polyurethane foam design with a foam density of ≥48 ka/m³. The inner surface of the housing is smooth and flat, making it less prone to accumulating dust and bacteria, which is beneficial for improving the quality of the treated air and is suitable for environments with purification requirements.
The patented box frame is constructed with a new cold bridge breaking technology, high-strength aluminum alloy composite insulation technique, where the insulation material is integrated with the aluminum alloy for a single molding process. The composite material boasts high strength, effectively preventing the formation of cold bridges. The exterior surface of the aluminum alloy is treated with oxidation and sandblasting, offering an aesthetically pleasing appearance and excellent corrosion resistance.
The assembly of the unit is secured with custom aluminum alloy covers and dedicated clips, utilizing self-tightening plates for fixation. The housing is sealed with double-fixed internal and external components, ensuring a solid fixation inside and outside the unit. There are no exposed screws on the unit, contributing to a simple and aesthetically pleasing structure, increased strength, and prevention of air leakage while completely isolating cold bridge transmission.
High-efficiency heat exchange, superior performance
The heat exchanger employs specialized high-efficiency internal threaded copper tubes, which increase the heat exchange area on the inner wall, enhance the intensity of turbulent flow, and increase the heat transfer efficiency by about 20%; the closely packed small tubes method significantly improves the heat exchange effect.
The Dong Bu tube has been meticulously designed to consider the refrigerant's state, flow rate, and pressure drop under both refrigeration and heating modes, ensuring high heat exchange performance in any operating mode.
Utilizing a diffused胀head expansion process, it effectively ensures a tight bond between aluminum fins and copper tubes, reducing the heat transfer resistance of the surface cooler.
Direct heat exchange between refrigerant and air, no need for an intermediate medium, high efficiency and energy-saving.
Intelligent control, full-featured, easy to operate
The microcomputer controller features multi-functional automatic controls such as fault diagnosis, intelligent defrosting, energy management, and operation monitoring. It supports various operating modes, scheduled on/off operations, and can be extended with additional features according to the customer's requirements.
A comprehensive protection system with intelligent self-detection functions ensures the reliability and safety of the unit, eliminating the need for dedicated maintenance. The unit features system high-voltage and low-voltage protection, phase loss protection, phase sequence protection, over-voltage and under-voltage protection for power supply, overheating protection for the compressor motor, excessive exhaust temperature protection for the compressor, anti-repeated start protection for the compressor, and sensor failure protection. With multiple protection functions, it can proactively respond to extreme working conditions, mitigate risks, and automatically shut down in the event of a fault, locking it and providing automatic functions such as fault display and condition recording.
Reserved communication ports for remote and centralized control.
A wide range of models, versatile applications
In addition to the exhaust fan models, we also offer brand new fan models, namely direct current air handling systems, which provide users with 100% outdoor fresh air. These systems ensure good indoor air quality and are particularly suitable for infectious disease wards, special pharmaceutical facilities, toxic environments, and any locations where recirculating exhaust air is not permissible.
In addition to the cool/warm and cool-only models, we offer Year-Round Cooling Models 1 (cooling from 0~43℃ ambient temperature) and Year-Round Cooling Model 2 (cooling from -15~43℃ ambient temperature), suitable for hospitals, pharmaceutical factories, steel mills, and other locations requiring year-round cooling. We provide customers with the most *reasonable model based on the winter environmental temperatures in various regions.
