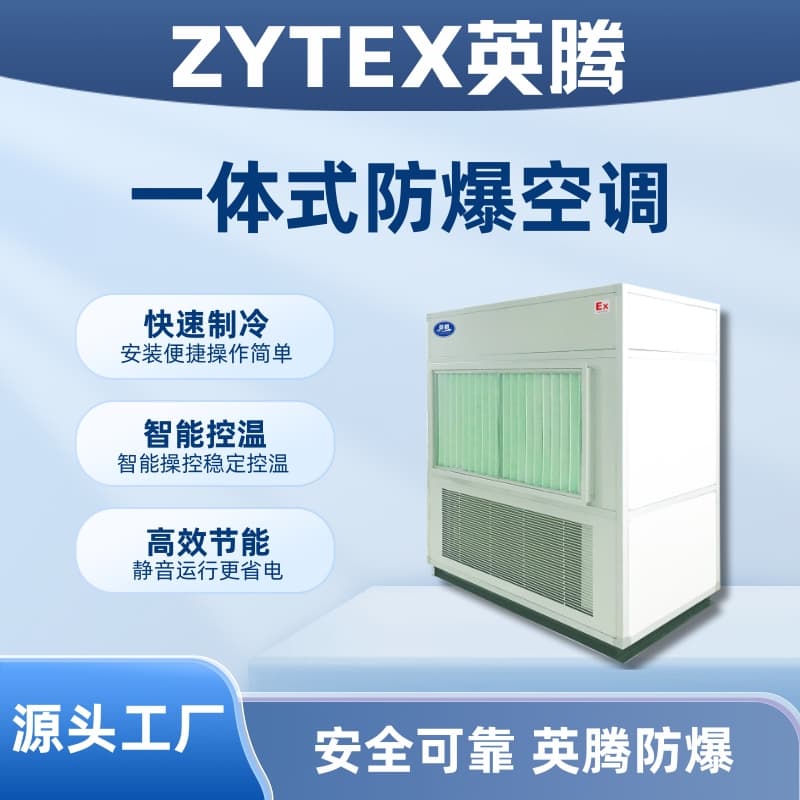

Integrated explosion-proof air conditioners are temperature control units designed for industrial and commercial settings, primarily used in communication base stations, data centers, equipment rooms, and other locations requiring precise temperature control, categorizing as process air conditioners. The equipment features a non-installation design and comes with casters for quick deployment and flexible movement.
The entire unit features a full steel sheet metal monocoque structure, equipped with ultra-high airflow fans and latent cooling technology. It can precisely control temperature within a wide temperature range and ensures air cleanliness through a dual filtration system. The device is equipped with dual-machine switching, remote monitoring, and automatic fault alarm functions, boasting phase sequence error tolerance and power failure memory restart capabilities. The exhaust outlet is designed with rat-proof structures to protect internal components. It employs new air energy-saving technology to reduce energy consumption, supports 24-hour continuous operation, and can adapt to high-temperature, high-dust industrial environments.
The Yingteng explosion-proof air conditioner features the explosion-proof mark Ex db ib mb IIB T4 Gb.
Integrated explosion-proof air conditionerThis product series adheres to the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres – Part 2: Equipment protected by intrinsic safety 'i'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9-2021 "Explosive Atmospheres - Part 9: Equipment protected by an "m" type encapsulation"
GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
Integrated explosion-proof air conditionerOperates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Applicable environmental conditions: Temperature -7°C to 43°C, free from corrosive gases.
c) There are hazardous areas with II A, II B classes, and T1 to T4 groups of flammable gases, vapors, and air mixtures capable of causing explosions.
The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology and is suitable for use in Class 1 and 2 flammable and explosive environments. It is widely applicable in research, oil, chemical, pharmaceutical, power plants, and other locations where IIA, IIB, T1 to T4 groups of combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. YingTeng's explosion-proof air conditioners have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and have received explosion-proof certification and CCC certification. They feature a beautiful appearance, reasonable design, ease of installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Integrated Explosion-Proof Air Conditioner Features
Extra-large air volume, stronger capability
The air discharge volume of the units is significantly greater than that of comfort home air conditioners with the same capacity. In actual operation, they feature a small enthalpy difference and high sensible heat, ensuring not only the timely removal of heat generated by the equipment in the machine room but also preventing condensation issues caused by the air conditioning cold wind, fully guaranteeing the safe and stable operation of electronic equipment in the machine room.
2. Double Filtration
Dual filtration systems are installed at the intake of the unit, ensuring high indoor air cleanliness and protection of equipment from dust.
3. High-efficiency design
The refrigeration system circuit and air duct system have been optimized, enhancing the cooling energy efficiency from level 5 to above level 2.
4. Energy-efficient Fresh Air System
Energy consumption is significantly reduced when the fresh air is turned on, while also alleviating the fatigue of the air conditioning system.
5. Dual Machine Switching Function
Once the set switching time is reached, if the primary host is on, turn it off and activate the secondary; if the secondary is on, turn it off and activate the primary. If the primary encounters a fault during startup, the secondary will automatically activate; if the secondary encounters a fault, the primary will automatically activate (this feature requires the installation of two sets of equipment).
6. Fault Identification and Alarm
When the equipment fails, it automatically identifies the fault status, takes measures such as continuing operation or shutting down, and remotely alarms through communication.
7. Remote Network Monitoring Function
The operation status of the unit can be monitored by a remote central station and adjusted anytime from a different location, eliminating the cost of human surveillance.
8. Phase Error Tolerance Feature
Unit wiring is simple; just ensure the neutral wire is correctly connected, and the three phases can be undifferentiated. The electrical control can automatically adjust the wiring method based on the wiring sequence.
9. Power-loss memory and automatic reboot function
Power-down memory includes: operating status, set temperature, set mode, controller switches, dual-machine switch time, simultaneous high-temperature opening temperature, simultaneous low-temperature opening temperature, master-slave status, and internal fan operation time.
10. Additional Features
In-wall installation, brand-name high-efficiency compressor, electric auxiliary heating, metal-sprayed finish, high-quality hydrophilic finned coil with internal threads copper tube for enhanced heat exchange efficiency, multiple protection functions to ensure normal machine operation, compact quick-installation fixing device, easy and fast installation process, unique exhaust air metal mesh to prevent mice from entering and damaging components inside the machine.
