Product Specifications
Brand: YingTeng

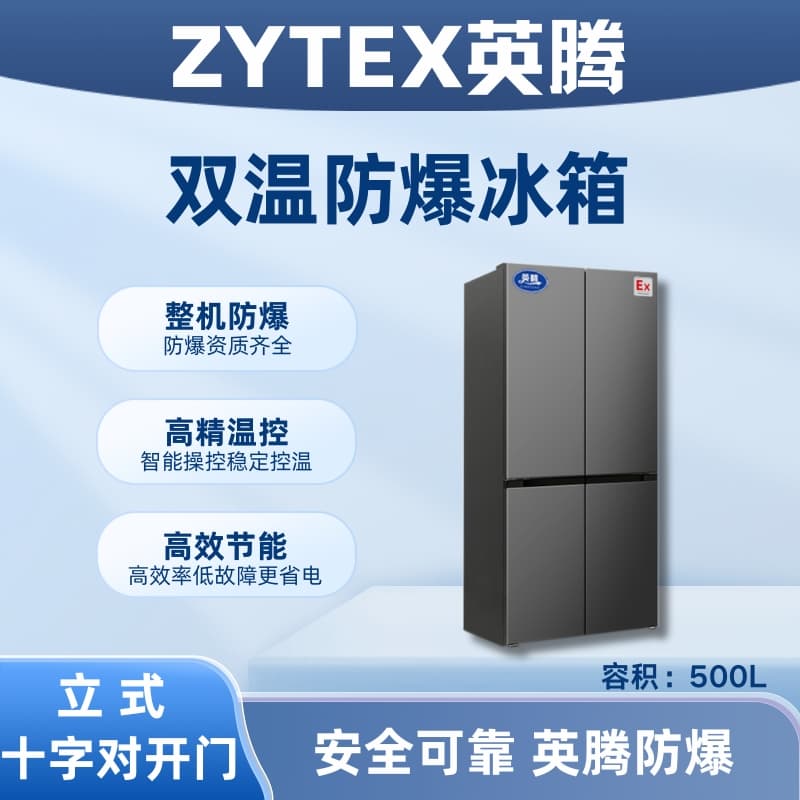

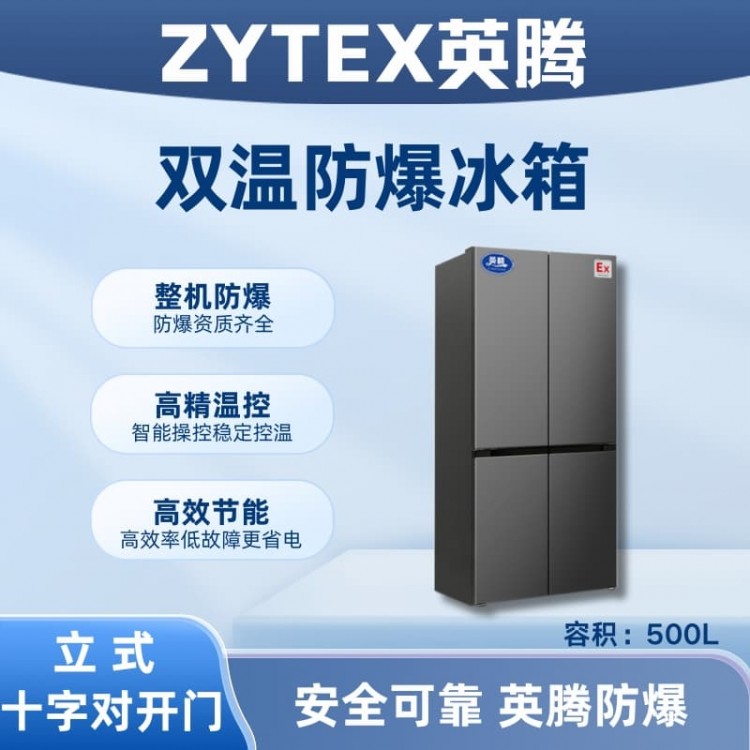

Model: BL-300 (DM500L)
Door: Cross-opening door
Total Volume (L): 500
Refrigeration Capacity (L): 296 (2℃-8℃)
Temperature-controlled Room Volume (L): 30 (Three-stage temperature control: 4℃/0℃/-1℃)
Refrigeration Capacity (L): 174 (-15℃ ~ -25℃)
Rated Voltage: 220V/50Hz
Total Energy Consumption (kw·h/24h): 0.83 kw·h/24h
Energy Efficiency Rating: 1
Freezing Capacity (kg/12h): 7
Cooling Capacity (kg/12h): /
Noise Level dB(A) 36
Climate Type: SN/N/ST/T
Product Dimensions (WxDxH) mm: 794*694*1900
Ex db IIB T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, the actual unit is to be taken as the standard.
Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature swing door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas such as Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1-T4 combustible gases, vapors, and air mixtures may form explosive hazards. These explosion-proof refrigerators are suitable for locations with temperature requirements. YingTeng explosion-proof refrigerators have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, with both explosion-proof and CCC certificates. They feature an aesthetically pleasing design, reasonable construction, and are easy to install and maintain. The full series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety, making them highly favored by the market.
Inten explosion-proof refrigerator complies with standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Type of Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment for "Intrinsic Safety" protection"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with 'm' Type of Encapsulation Protection"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Yinteng explosion-proof refrigerator product features
Insulated glass design, excellent thermal performance, efficient anti-fogging, and excellent display effects.
Extra-thick foam layer with insulating properties, highly efficient thick precise thermal insulation, enhanced保温effect.
Swivel wheel design for easy and light movement.
Branded compressors, high-efficiency cooling, low noise, low energy consumption, and stable performance; Adjustable shelving, with customizable layer heights for convenient storage.
220V/110V, your choice.
Precision Computerized Temperature Control System: Equipped with an internal precision temperature sensor to maintain stable internal temperature of the box; an intelligent control fan forced air circulation system to ensure uniform temperature inside the box.
Automatic Temperature Control: High-brightness digital display, temperature setting within the range of 2°C to 8°C, display accuracy of 0.1°C. Uses non-fluorine environmentally friendly refrigerant, international brand high-efficiency compressor, energy-saving and quiet operation.
Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.
Optional audio-visual alarm system: Equipped with high-temperature and low-temperature alarms, sensor failure alerts, and more, ensuring safer storage of items; door lock included to prevent unauthorized access.
Yinteng Explosion-Proof Refrigerator Application Range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, or II C, where explosive gas mixtures of temperature group T4 are present. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are manufactured in accordance with industrial environmental usage requirements and are classified as IC-level explosion-proof refrigerators.
