Overview:

The RCDD series of self-discharging electromagnetic iron separators are used for iron removal from any material on the conveyor belt before the crusher and on the conveyor belt itself, and are suitable for various harsh environmental conditions.

The magnetic circuit is designed using computer simulation, featuring a deep permeability and strong magnetic force.

Internally, it features electrical engineer-specific resin casting, a self-cooling full-sealed structure, and is dustproof, waterproof, and corrosion-resistant.

Automatic iron unloading, easy maintenance, drum-shaped roller structure, equipped with belt automatic alignment function, special full-sealed bearing housing for long-term trouble-free operation.

The product has excellent compatibility, the rectifying equipment is fully functional, featuring both manual and centralized control, and can meet the usage requirements of various scenarios.

Effectively removes ferromagnetic materials ranging from 0.1 to 35 kg mixed in non-magnetic materials.

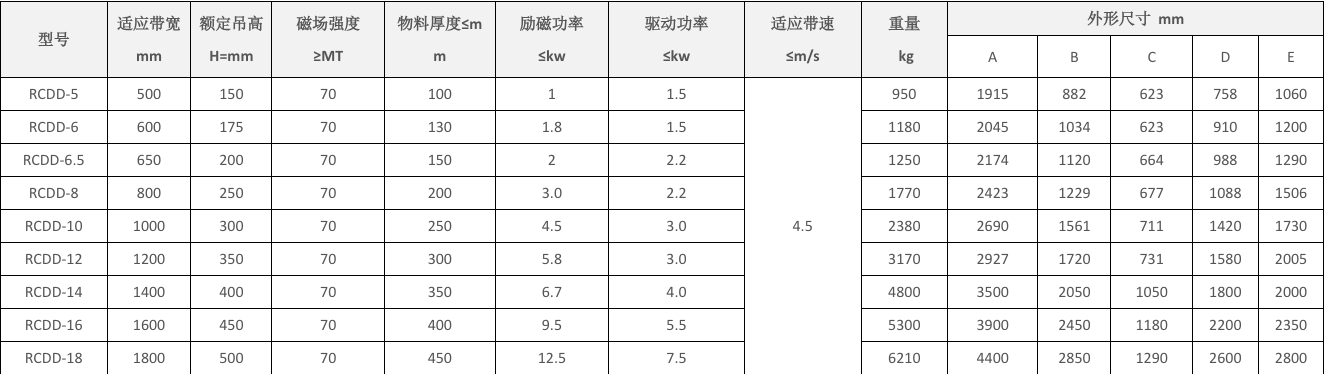

Main Technical Parameters:

Note: All models in this series feature ultra-strong T1, T2, and T3 designs exceeding national standards, with rated lifting height magnetic field strengths of 90mT, 120mT, and 150mT respectively.
