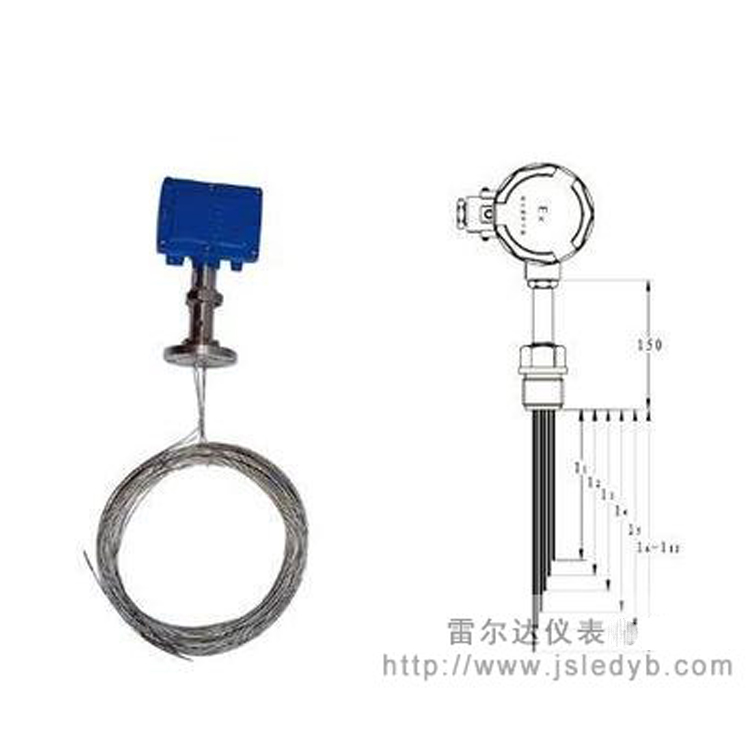

1. Multi-point explosion-proof thermocouple applications
Multi-point explosion-proof thermocoupleIdeal for production sites with flammable and explosive compounds, requiring measurements at multiple locations or multiple points within a location. Widely used in oil and chemical refining tower equipment.
2. Key Technical Specifications
Electrical Export: M20x1.5 NPT I1/2
Hot Response Time: ≤8S
Fiber Diameter: Φ1, Φ2, Φ3
Protection Rating: IP65
Explosion-proof Class: d‖BT4.d‖CT5
3. Model and Specifications
| Model | Grade Number | Temperature Range: ℃ | Measurement Points | Installation fixed form |
| WRN-240D | K | 0-800 | 2—12 | Set screw |
| WRE-240D | E | 0-600 | ||
| WRN-440D | K | 0-800 | Fixed Flange | |
| WRE-440D | E | 0-600 |
1） ThermocoupleOrder at I level as per agreement.
2) The remaining material for the protective tube will be ordered as per the agreement.
3) The user should provide the outer protective tube themselves.
