Rubber Non-rotating Viscosity RecorderA widely-used instrument in the rubber processing industry for controlling rubber quality, rapid testing, and fundamental research applications, it provides accurate data for optimizing rubber formula combinations, capable of precisely measuring parameters such as burn time, cure time, curing index, and maximum and minimum torque.

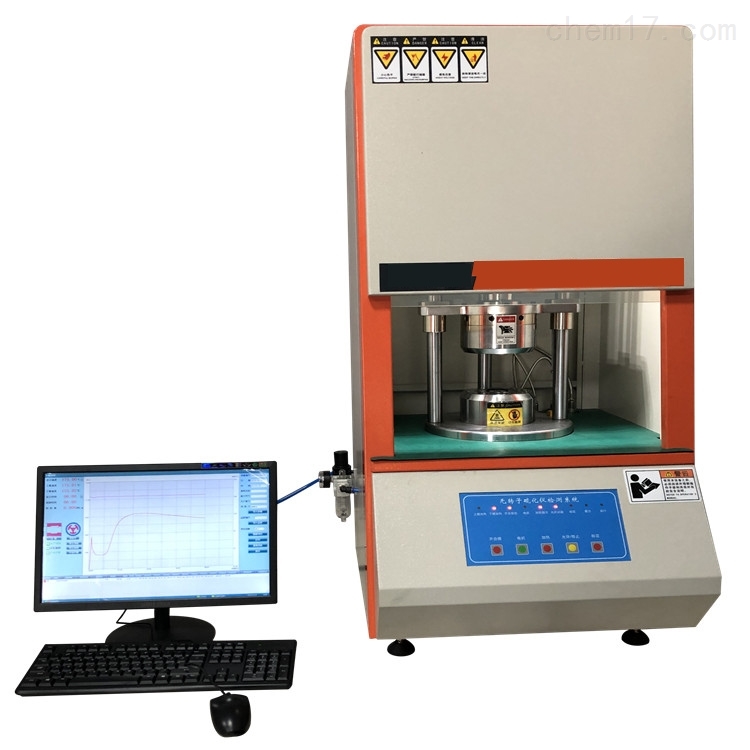

Machine Model: LT-601 TypeRubber Non-Spinning Vulcanization Instrument


I. Product Applications

The LT-601 computer-controlled rubber vulcanization tester is suitable for the rubber processing industry to control rubber quality, rapid testing, and fundamental rubber research. It provides accurate data for optimizing rubber formula combinations, and can accurately measure parameters such as the vulcanization time, vulcanization index, and torque.


A rubber non-rotating vulcanometer is a device used for measuring and controlling the vulcanization process of rubber products. It typically consists of a sealed reaction chamber, a temperature control system, and a pressure control system. During the vulcanization process, rubber products (such as tires, seals, etc.) are placed into the reaction chamber and subjected to appropriate temperature and pressure conditions. The vulcanometer monitors and records the vulcanization process of the rubber products to ensure they achieve the required physical properties and quality standards. The term "non-rotating" refers to the absence of a rotating device for the vulcanization process, which is instead achieved by controlling the temperature and pressure within the chamber.


Section 2: Applicable Standards: GB/T16548, ASTM D5289, and other testing standards.


III. Performance Features

　　1. Rubber Non-rotating Viscosity TesterUtilizing true sealed mold cavities, the repeatability and test data are comparable to Alpha, holding a position at the forefront of the industry.

2. This instrument is developed on a large database platform, with the temperature control device utilizing direct software control and data collection processing, ensuring stable, quick, and accurate temperature control.

3. The measuring and controlling method utilizes a human-machine interface with a large LCD screen display, featuring user-friendly design and easy operation.

4. Power System: Excitation motor + Amplitude Adjuster. Swing Angle: ±0.5°.

5. Data Transmission Method: USB Transfer.

6. Molds are made of Cr6WV material, featuring high hardness and non-deformation.


4. Main Technical Parameters

1. Temperature Range: Room Temperature - 200℃

2. Temperature Accuracy: ±0.3℃

3. Temperature Control Accuracy: ±0.3℃

4. Temperature Resolution: 0.01℃

5. Torque Range: 0-10 N.m, 0-20 N.m

6. Torque Resolution: 0.001 N.m

7. Molding Frequency: 1.7 Hz

8. Amplitude: ±0.5°

9. Environmental Temperature: 0-35℃ Relative Humidity: <80%

10. Curing Time Setting Range: 2-300 min

11. Gas Distribution: 0.5 MPa

12. Power Supply: AC 220V, 800W

13. Machine dimensions: approx. 540×570×1150mm

14. Machine Weight: Approximately 280 Kg
