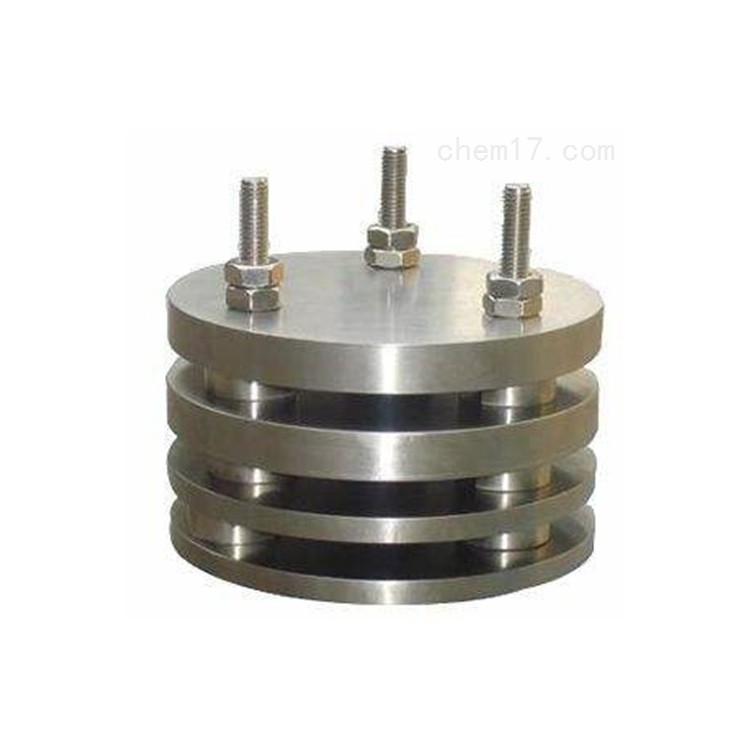

Machine Model: LT-918 Type Compression Transformer

I. Overview of Compression Transformer
The rubber compression deformator is composed of parallel steel plate restrictors and fasteners, conforming to GB7759 and ISO815 standards. It is used for vulcanized rubber and thermoplastic rubber under normal, high, and low temperatures, measuring the rubber deformation after a certain compression rate and duration.

Section II: Technical Parameters of Compression Transformers
Sample:
Type A - Diameter 29mm, Height 12.5mm
B Type - Diameter 13mm, Height 6.3mm
2. Limiter Height: Sample Type A B
25% compression rate: 9.3～9.4, 4.7～4.8
15% compression rate: 10.6~10.7, 5.3~5.4
Compression Ratio 10%: 11.25～11.3, 5.65～5.7
3. Dimensions: Diameter 115mm, Height 110mm
4. Weight: Approximately 12 Kg.
