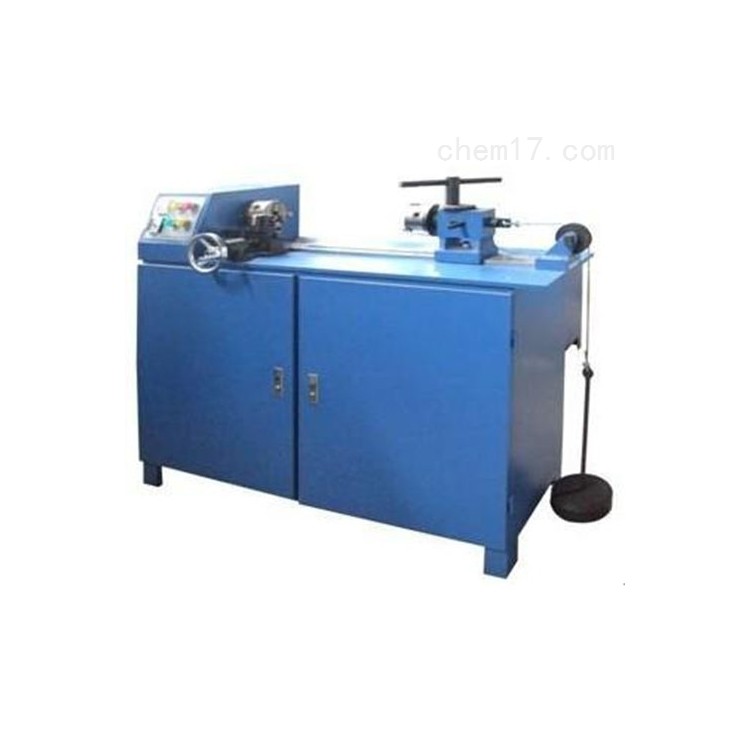

Machine Model: LT-102Wire Twisting Tensile Tester

Section 1.Wire Twisting Test MachineOverview
The LT-102 Wire Twisting Tester conforms to the GB4909.4-85 "Testing Methods for Bare Wires - Twisting Test" and GB4909.7-85 "Testing Methods for Bare Wires - Wrapping Test" standards, and is used for testing the winding and twisting of aluminum wire, steel wire, copper rods, copper wires, and other materials that require such tests. It serves as a testing tool for manufacturers of metal wires like steel-core aluminum conductors.

II.Wire Twisting Test MachineTechnical Specifications
Model: LT-102 Type
2. Coiling Range: φ1-φ4.2mm
3. Twist Range: φ1-φ12mm (for copper and aluminum wires), φ2-φ4.2mm (for steel wires)
4. Test Machine Speed: 10 r/min, 30 r/min, 60 r/min
5. Power: 0.75 kW
6. Dimensions: 1340*480*1180
7. Net Weight: Approximately 190 Kg.
