I. Overview

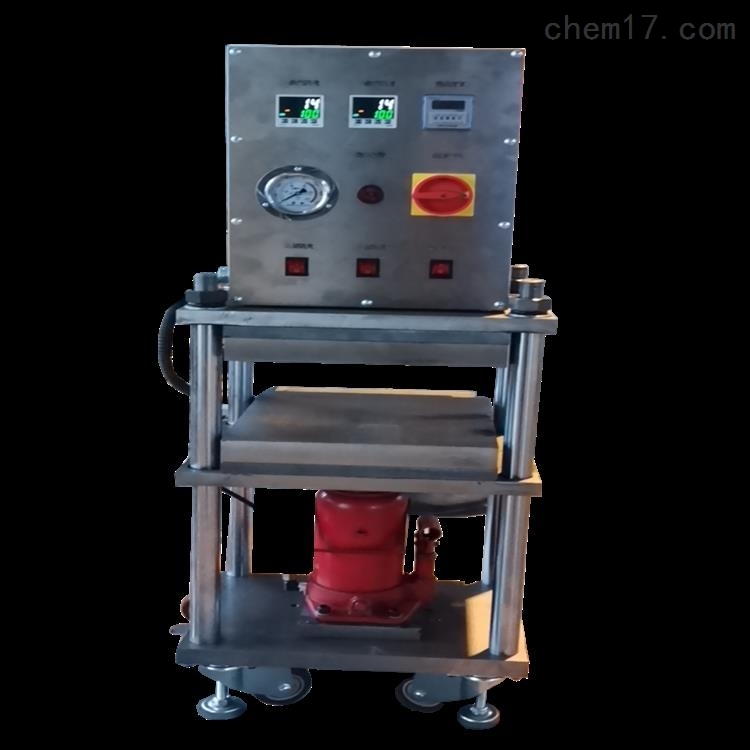

LT-910 ModelMiniature experimental vulcanizerSuitable for the production of vulcanized or molded products made from rubber, plastic, composite materials, and other synthetic materials, as well as for压制standard test strips for tensile, impact, and other tests. This equipment boasts easy operation, a small footprint, and low energy consumption, making it particularly suitable for factories and school laboratories without three-phase power supply.

II. Technical Specifications
Nominal Molding Force: 0.2MN (i.e., 20 tons)
2. Hot Plate Size: 300*300mm
3. Hot Plate Spacing: 120mm
4. Number of Work Layers: Single Layer
5. Temperature Range: Room temperature to 250℃ (Customizable upon request)
6. Temperature Fluctuation: ±2%℃
7. High Liquid Pressure: 20 MPa
8. Total Power: 4KW
9. Loading Method: Manual Loading
Power: 220V 50Hz
10. Dimensions: 450*450*1000mm
12. Net Weight: Approximately 220 Kg

III. Advantages Demonstrated
Miniature experimental vulcanizerThe machine is lightweight and requires only a single-phase power supply, making installation and operation relatively simple; the pressure gauge displays pressure, which can be adjusted between 0~20MPa; the temperature gauge shows temperature, allowing for any range within the set scale.
