Mini flat curing machine

One . Small flat vulcanizing machine applications

LT-910 Type Small flat vulcanizing machines are suitable for pressing various molded products, such as rubber and plastic, and are also applicable to thin sheet products.

Two Mini flat vulcanizing machine Performance Features

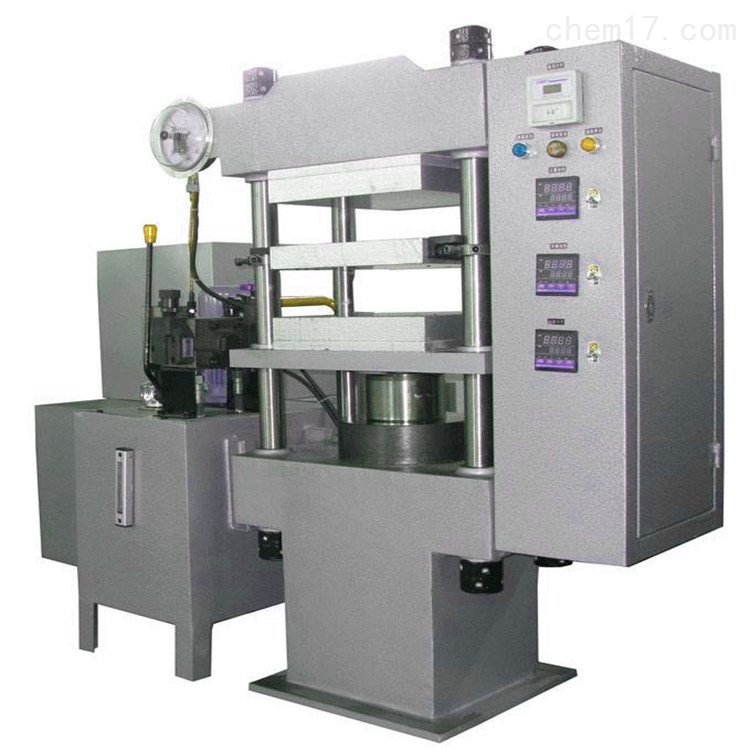

The main unit features a four-column integral structure, with a pressing style of upward pressure. It is divided into three parts: the main unit, oil tank, and electrical control box. The electric heating is controlled by an automatic temperature controller in three routes, enabling 20 － 200 Adjust within the range, when

Once the temperature is reached, the circuit maintains a constant temperature automatically. After the set vulcanization time is achieved, an automatic alarm is triggered.

Three Mini Flat Vulcanizing Machine Technical Specifications

1. Nominal Molding Force     0.25MN

2. Tablet Area       350×350mm

3. Hot plate spacing       150mm

4. Number of Work Layers       2 Layer (additional layers available upon request)

5. High Liquid Pressure     14.5MPa

6. Plunger Long Stroke  250mm

7. Heating Power       7.2KW

8. Motor Power       2.2KW

9. Dimensions       1250x550X1420mm

10. Net Weight           Approx. 1T

Note: This equipment requires 46# Hydraulic Oil 25 Lift, to be provided by the user.
