LT-910 Touch Screen 50T Rubber Plate Vulcanizing Machine

One, Features and Applications: This machine is suitable for pressing various molded products such as rubber and plastic, as well as thin sheet products.

Two, Performance Features:

1. The equipment features a four-column integral structure, with a downward (upward) pressing style. It is divided into three parts: the main unit, oil tank, and electrical control box. The main unit is equipped with plungers, oil cylinders, fixed plates, and movable plates, among other components.

2. The fuel tank is equipped with components such as a fuel pump, pipes, and valves. The fuel pump is driven by an electric motor, and the control box is fitted with a button switch, magnetic starter, timer alarm, braking temperature controller, overload protector, and more.

3. Electric heating is controlled by an automatic temperature controller, divided into three temperature control paths, and can be adjusted freely within the range of 20-300 degrees. Once the temperature is reached, the circuit automatically maintains a constant temperature.

4. After the vulcanization time is reached, the equipment automatically alarms and prompts.

Section 3: Technical Parameters of Rubber Plate Vulcanizing Machines

1. Nominal Molding Force 0.5 MN

2. Tablet Area: 400*400mm

3. Heat plate spacing: 100mm

4. Number of Work Layers: 2 Layers

5. Maximum Liquid Pressure: 16 MPa

6. Piston Maximum Stroke 250mm

8. Heating Power 9KW

9. Motor Power: 5.5 kW

10. Dimensions: 1600*550*1440mm

11. Weight: 900 kg

12. Temperature Range: Room Temperature - 300℃

13. Heating Plate Material: Alloy Steel

Note: 46# hydraulic oil, 25 liters (Self-provided)

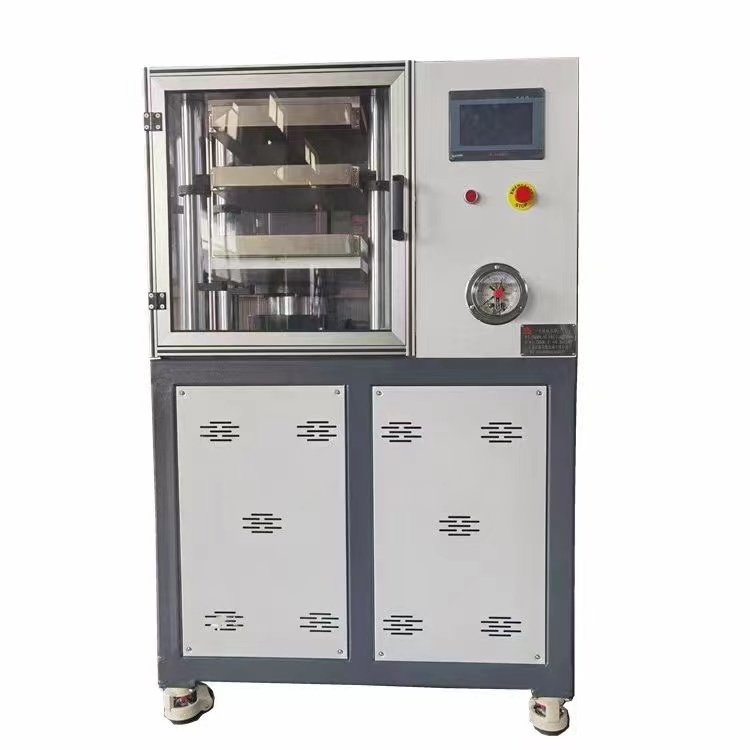

Product Images:
