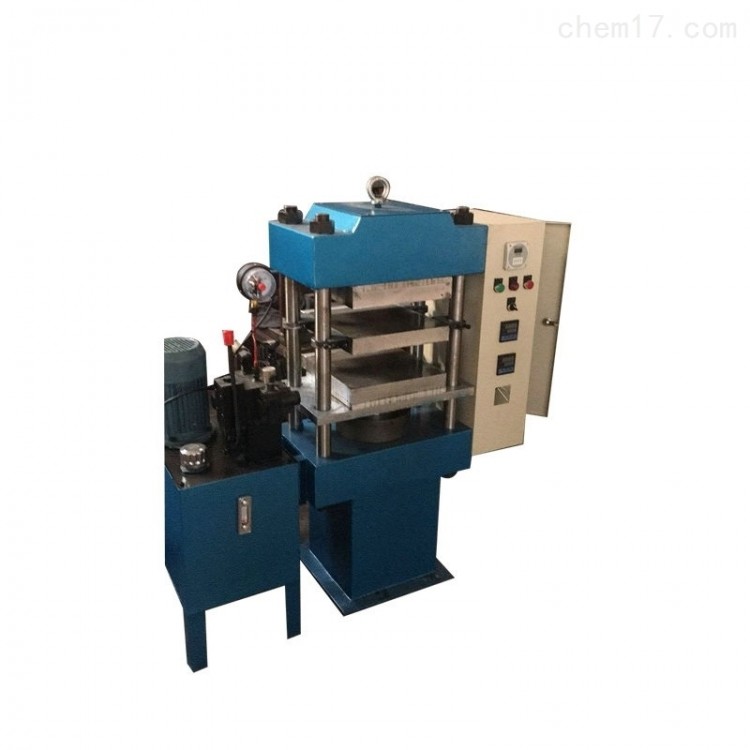

Section 1:Rubber Plate Vulcanizing MachineUsage and Features

The 50-ton pressure forming machine is a high-capacity pressure forming equipment, used for vulcanizing various rubber products, as well as for pressing hard rubber and plastic products. The semi-machine boasts advantages such as compact structure and easy operation.
The electric heating is controlled and displayed by the TED-2301 temperature indicator regulator, featuring high control accuracy, intuitive temperature display, and easy adjustment.
2. Steam-heated models use metal hoses for superior sealing, long lifespan, and reliability.
3. Utilizing a parallel oil supply system with a low-pressure, high-flow gear pump and a high-pressure, low-flow gear pump ensures rapid heating of the heat plate while also conserving electricity.
4. Rubber Plate Vulcanizing MachineUtilizing an automatic pressure supplement device ensures the stability of product quality.

II. Main Technical Parameters
Large mold locking pressure: 0.5MN (50 tons)
Hydraulic System Pressure: 16 MPa
Piston Stroke Length: 200mm
4. Piston rise speed: 16.5 mm/s
5. Hot Plate Size: 400x400mm
6. Hot Sections: 3 (Additional sections available upon request)
7. Hot plate spacing: 100mm (can be enlarged as required)
8. Total Electric Heating Power: 7.2 Kw
9. Heating Steam Pressure: 0.6-0.8 MPa
10. Hotplate Temperature: 0-300°C
11. Net Weight: Approximately 1200 Kg
12. Motor Power: 3 Kw, 1440 r/min
13. Dimensions (Length x Width x Height): 1450x650X1620mm
