6-inch Open Mill Main Specifications and Component Composition
| Main Specifications | |
| Model | LT-902 Double Roll Open Mill |
| Roller Diameter | φ160mm |
| Roller Length | 320mm |
| Type | Overall assembled |
| One-time feed quantity | 1-2kg |
| Main Motor | 4KW, 50Hz AC Motor |
| Total Power | 7KW |
| Roller Specifications | Roller speed: 24 rpm; Front to rear roller speed ratio: 1:1.35 |
| Power Supply | 380V 50HZ |
| Dimensions | 1200mmX750mmX1200mm |
| Weight | Approx. 800 Kg |
| Equipment Composition | |
| Roller Assembly | 1 set |
| Base and frame | 1 set |
| Roller Clearance Adjustment Settings | 1 set |
| Gasket Assembly | 1 set |
| Dosing dish | 1 set |
| Transmission Mechanism | 1 set |
| Emergency Brake System | 1 set |
| Lubrication Group | 1 set |
| Electrical Control Group | 1 set |
Overview:
6-inch open millIt's a machine used for rubber processing. It's a roller mixer primarily used to blend rubber with other additives to manufacture rubber products. The machine typically consists of two parallel metal rollers, 6 inches in diameter, with one roller driven by an electric motor to rotate, mixing and heating the rubber material,塑化and blending at specific temperatures. The open mill is widely used in the rubber industry, capable of producing various rubber products such as tires, seals, and rubber hoses.
LT-902 6-inch Double Roll Open Mill for Rubber, Plastic, and Composite Materials Mixing; roller sleeves with electric heating (or water cooling) capability, heating up to 200℃ (special requirements available upon request), commonly used in corporate and testing institution laboratories.
6-inch open millBasic Maintenance Tips:
Before each work session, it's good to add a small amount of gear oil to lubricate the gear mesh.
2. This equipment is fitted with bearings, and a small amount of lubricating grease should be added to each oil cup before operation.
3. If not used for a long time, these two points are especially important before restarting.

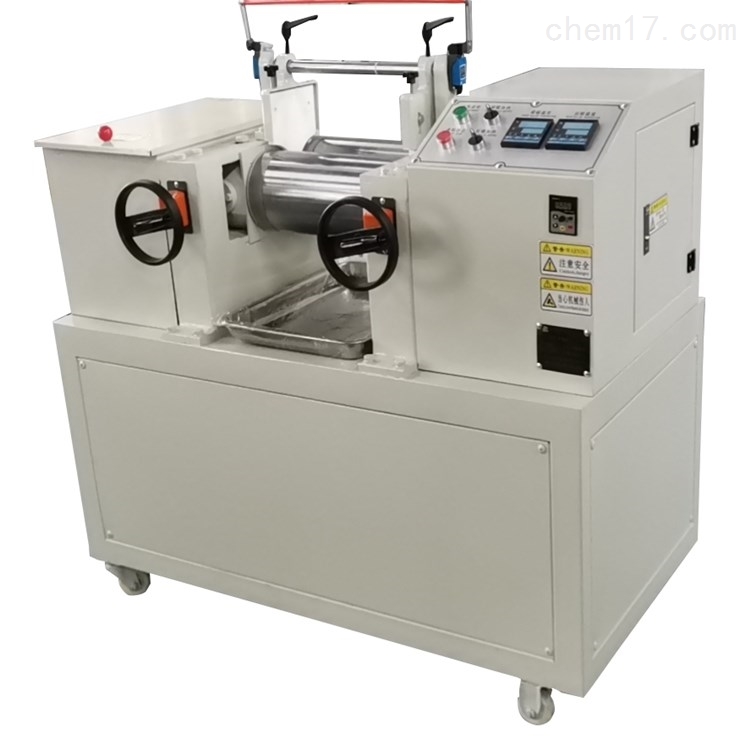

6-inch Open Mill Product Prototype Display
