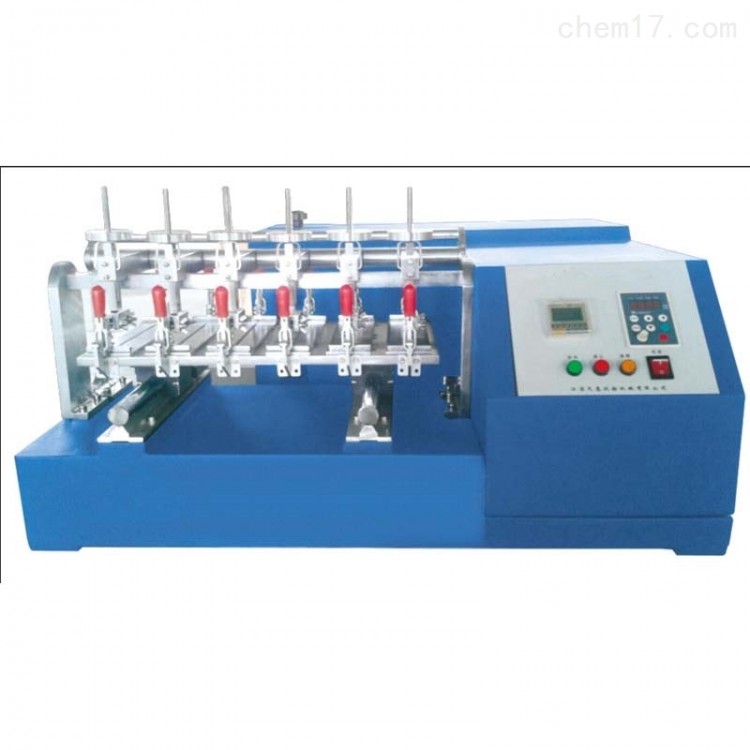

LT-202 AutoSeal Strip Abrasion Test Machine

I. Product Application:Applicable toWear resistance tests for various automotive绒毛and coated guide strips, door frame seals with sponge coating, door seals, trunk seals, and other products。

II. Applicable Standards:

TL52057, TL52417 - Wear Standard for PV3313

PV3366 wear standard in TL52641

QC/T711-2004 Method for Testing the Abrasion Resistance of Automotive Sealing Strip Velvet

GB/T21282-2007 Automotive Plastic and Rubber Sealing Strip

Section 3: Equipment Structural Features

The friction head bracket is a straight-up-and-down installation bracket. The weights are directly mounted on the friction head bracket. The required mass should be the sum of the weights, the friction head, and the bracket.(Comparable to German counterparts)

2. Secure the flat specimen, then slot it. Clamp both ends using elbow-type clamps to fix the flat specimen for pressing and testing.

IV. Technical Specifications:

Type:6 Hammer Electric

2 Sample Sheet:            Samples are taken from various types of sealing strip products.

3 Load Capacity:250g、325g、500g、1000g、3000g

4 Wear Path:0-160mm

5 WearAdjustable head height:   0-50mm

6 Wear Speed adjustment range:10-90Next/minute

7Counter:           0-999999Next

8Volume:             1020X850X630mm
