One.Usage:

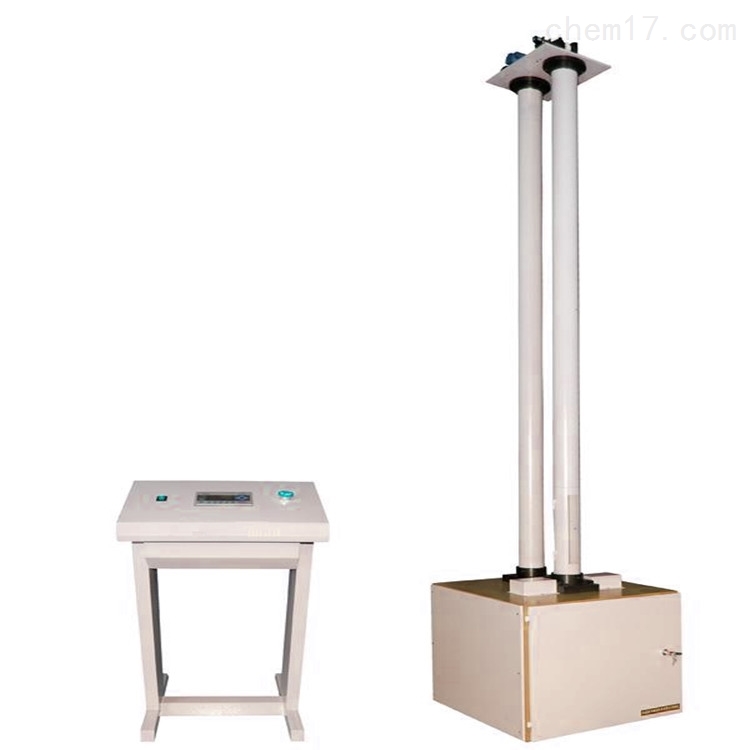

LT-903The drop hammer impact tester is a testing instrument used to evaluate the impact resistance of non-metallic materials such as plastic sheets, pipes, extrusions, glass, ceramics, etc., by conducting impact tests on these materials.

Two. Applicable Standards:

Drop Hammer Impact TesterMeetsGB/T 14152、14153、10002.1、10002.3、13664、5836.1、18477、16800、8814andGB6112、ZBN72026Compliance with standard requirements.

Three. Performance Features:

1.Electrical section: Utilizes imported components, featuring a digital display for height, allowing for adjustable height settings, which can be directly read from the gauge.

2.Efficiency of preventing secondary impact99%。

3.The hammer head is made of chilled steel, which effectively prevents deformation.

4.The electrical control section is separately housed from the main unit, offering easier operation and greater safety and reliability.

5. Drop Hammer Impact TesterUtilizing tubular guidance impact, the hammer position is equipped with protective devices, ensuring reliable safety.

Four. Technical Specifications:

1.Hammer Body Quality:0.5-15.0Kg

2.Head Radius:R5mm、R10mm、R25mm、R30mm、R50mmOr custom-made to specification

3.Workbench Travel: 0mm - 500mm

4.Sample Diameter:10mm~500mm(Height and width can be customized according to product dimensions)

5.Impact Height: 0mm - 2000mm

6.Center deviation between impact center and fixture center:≤2mm

7.Pallet Type:120°VType or flat plates with supports or fixtures

8.Power Supply:AC220V 50Hz

9.Dimensions: 750mm x 550mm x 3500mm

10.Net Weight: Approximately280Kg
