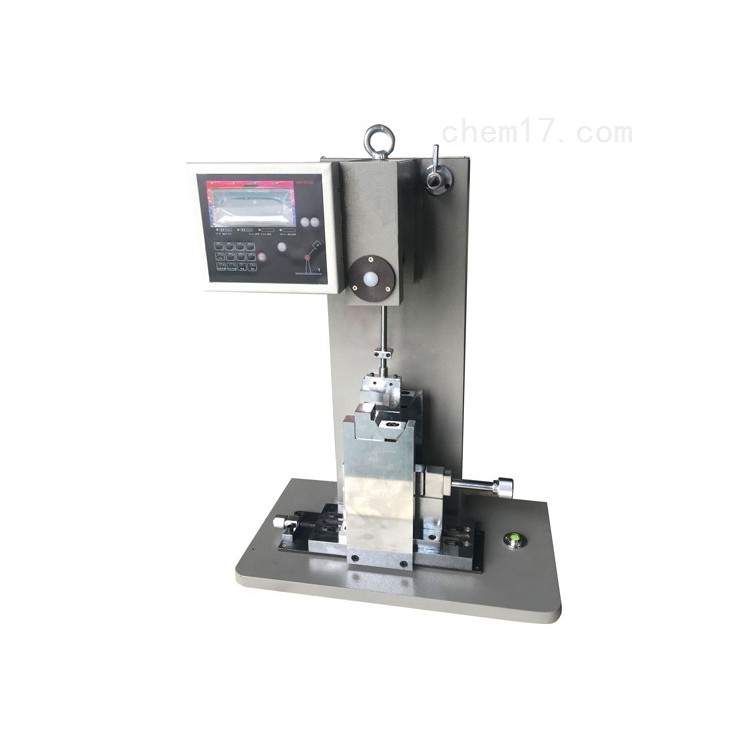

Machine Model: LT-901B Type 50JPlastic Impact Tester
1. Plastic Impact Tester Features and Applications
The LT-901B pendulum-type plastic impact tester is used for determining the impact toughness of non-metallic materials such as rigid plastic sheets, pipes, profiles, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone electrical insulating materials, etc. It is convenient, accurate, and aesthetically pleasing. It conforms to GB/T1043 "Impact Test Method for Rigid Plastic Simply Supported Beams" as well as ISO179, ISO9854-1, DIN8078, DIN53453, and other standards. Convenient, accurate, and with an attractive design, it is an ideal testing equipment for the chemical industry, scientific research institutions, colleges and universities, and quality inspection departments.
Section 2: Technical Specifications of Plastic Impact Tester
Impact Speed: 3.8 m/s
2. Impact Energy: 7.5J, 15J, 25J, 50J
3. Swing Amplitude: 150°
4. Center Distance: 395mm
5. Impact Resistant Radius: R 0.5
6. Jaw Spacing: 95, 60, 62, 70
7. Dimensions: approximately 550mm x 300mm x 900mm
8. Power Supply: AC 220V, 50Hz
9. Net Weight: Approximately 145 Kg.
Section 3: Plastic Impact Tester Sample Type, Dimensions, and Distance Between Supporting Lines (Unit: mm)
SampleType | Length (l) | Width (b) | Thickness (d) | Spacing between support lines L |
1 | 80±2 | 10±0.5 | 4±0.2 | 60 |
2 | 50±1 | 6±0.2 | 4±0.2 | 40 |
3 | 120±2 | 15±0.5 | 10±0.5 | 70 |
4 | 125±2 | 13±0.5 | 13±0.5 | 95 |
5 | 80±2 | 10±0.2 | (2.5) | 62 |
