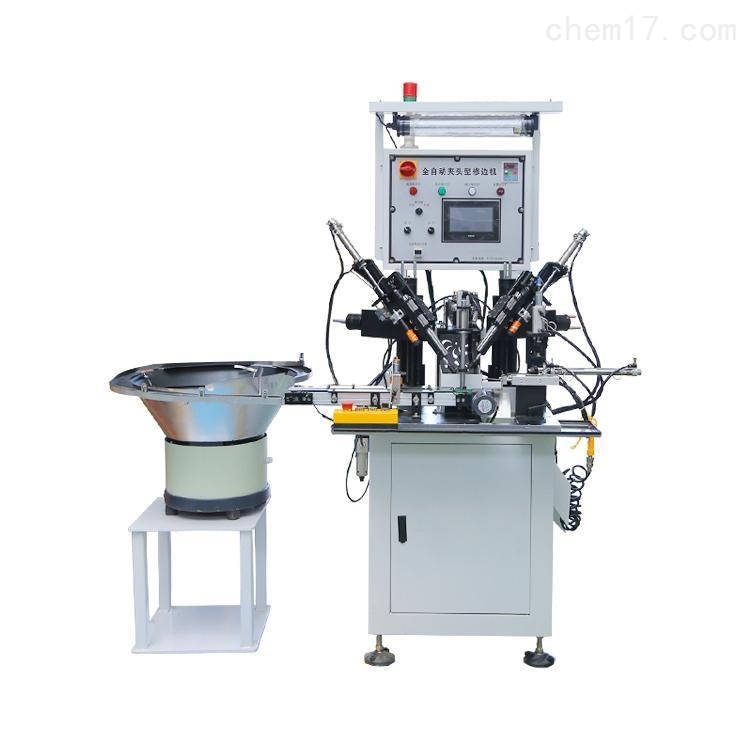

Oil Seal Trimming Machine
Product Specifications

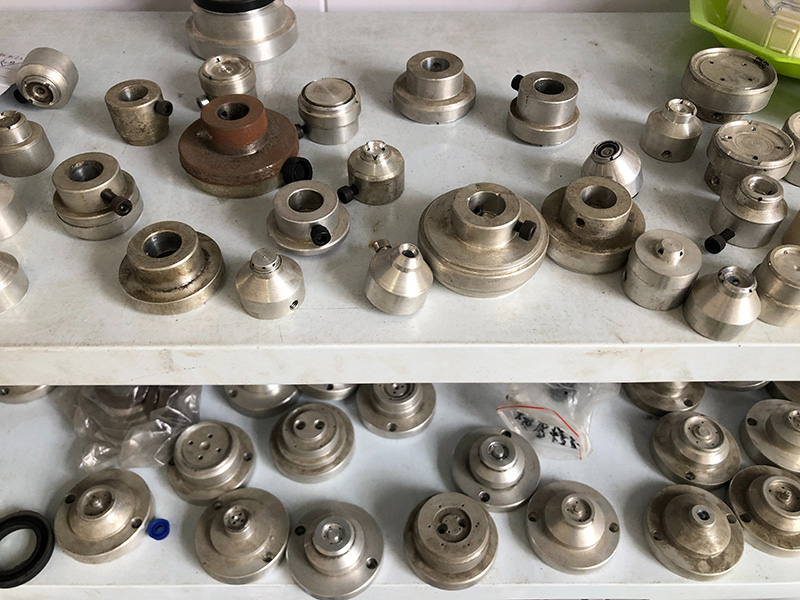

The oil seal trimming machine is specifically designed for the trimming and beveling of high-end rubber seal shapes, integrating precision mechanical processing and automatic control into a mechatronic product. It uses suction cups to hold round workpieces and cuts them with blades. It is suitable for the precise trimming of external diameters and accurate shaping of the inner lip edges of skeleton oil seals, and can perform chamfering and flat cutting. The workpieces processed by this machine have the advantages of fine appearance, accurate dimensions, and high concentricity.
The machine's system is equipped with a PLC programmable control system and features an electromagnetic clutch motor, offering strong anti-interference capabilities, sensitive response, high reliability, stable speed, long service life, and easy operation.
Cutting Speed: Variable speed from 200 to 1700 rpm (frequency conversion control)
Cutting Range: 10mm - 200mm diameter
3 Adjustable cutting angle: 0°~90°
4 Knife blade specifications (thickness x width x length): 3mm x 5mm x 100mm High-speed steel or tungsten carbide
5 Compressed Air Consumption: 20L/min
6 Production Speed: 15~20 pieces per batch
7 Motor Power: 550W
8 Additive (Pause) Time: 2S~4S, Optional
Cumulative Quantity: 1~9,999 pieces
10 Power: AC380V, 3-phase 4-wire system (no neutral required) ±10% 50Hz
11 Dimensions (Length x Width x Height): 750mm x 750mm x 1750mm
