Product Detailed Description:

Key Technical Parameters:

1. Tensile Test Force: 3000KN; Market Value Precision: ±1%, Precision Range: 2%-10% FS

2. Large Stretching Speed: 50mm/min

3. Stretching Range: 200mm-800mm

4. Displacement Indication Accuracy: ±0.5% FS Indication

5. Deformation measurement resolution: 0.001mm

6. Deflection Measurement Accuracy: ±0.5% FS

7. Control Method: Electro-hydraulic Servo Automatic Control

8. Test bolt specifications range: M10 - M42

9. Measurement Display and Data Processing: Computerized measurement and screen display, with automatic data processing and printer output of test results. 10. Main Unit Dimensions (approx.): 1200x900x2900mm (Length x Width x Height)

Main Configuration List:

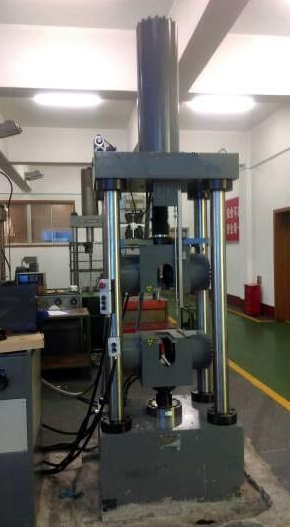

1. Four-column main frame structure (hydraulic cylinder mounted on top)

2. Test Cylinder (Single Rod Double-Acting Servo Cylinder)

3000KN force sensor

Lever-actuated photoelectric pulse displacement sensor 4

M10-M42 bolt tensile test fixture

6. Integrated Servo Oil Supply

7. Full Digital Hydraulic Servo Controller

8. PCI Test Amplifier

9. WinWAW Control and Measurement Software

10. Cables and Connectors

HPA4 Color Printer

12. Pressure Vessel Piping and Sealing Components

13. Random Documents (including instruction manuals, packing lists, certificates of conformity, software backup CDs, etc.)
