PrimaryKey Features:
l Applicable for layer diameter of60-150UM's bias-polarized fiber optic fusion。
l Innovative end-face imaging system, allowing clear visibility of both ends of the fiber, achieving precise core alignment.
l Arc position is adjustable, and arc size can be real-time calibrated.
l Software is upgradeable, data is storable and exportable.
l Pause Feature for ConvenienceResearch and Teaching。
l Suitable for various coatings (colored, light-blocking)900μm sheath optical fiber.
l For applications requiring short patch cords for bias compensation devices.

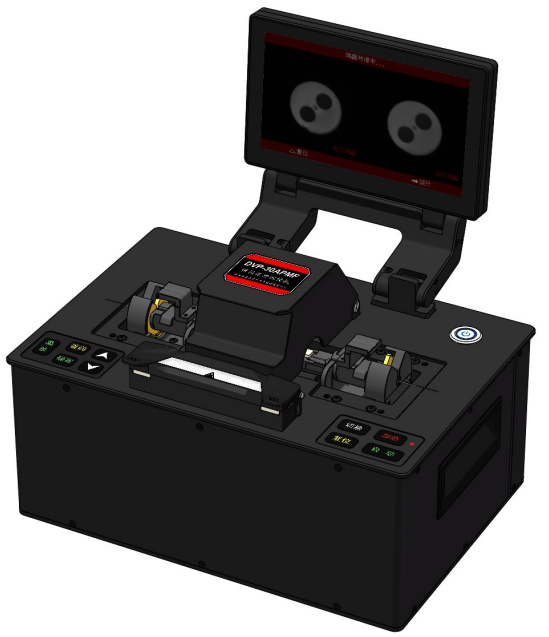

Model | DVP-31PMFA | DVP-31PMFB |
Applicable Fiber Optic | PMF: Panda, Bow Tie, Elliptical; SMF(G.652)、MMF(G.651) 、DSF(G.653) 、NZDSF(G.655)、BIF(G.657） | |
Fiber Optic Cladding Diameter | 60-150μm | 125-250μm |
Coating Diameter | 100μm～300μm | 165μm～900μm |
Cut Length | 5.5～16mm | |
Typical Welding Time | 90 seconds | |
Gloss-to-gloss ratio | -38dB | |
Average splicing loss | 0.02dB（SMF）,0.01dB（MMF）,0.05dB（PSF,NFD,BIF,PMF） | |
Return Call Loss | ≥60dB | |
Axial Pattern | 0°, 45°, 90° fiber optic splicing | |
Axial method | End face, side face | |
Work Method | Automatic, Manual | |
Automatic Discharge Calibration | Supported | |
Electrode lifespan | Discharge5000 times | |
Welding Program | 80Group programs15Factory preset programs | |
Data Storage | Storage available10000Welding LogPlease provide the Chinese content to be translated.30,000 piecesImage | |
Language Display | Please provide the Chinese content to be translated.Text、Multiple language options available | |
Operation Environment | Temperature: -25～+50℃; Humidity: 0～95%RH (no condensation); Altitude: 0～5000m; Wind Speed:Up to 15 m/s | |
Storage Environment | Temperature: -40～+80℃; Humidity: 0～95%RH (non-condensing) | |
Power Supply | AC Adapter: AC Input Voltage 85-260V, 50/60Hz | |
Monitor size | 7Inch Color High-Resolution LCD Screen | |
Dimensions/Weight | 296（D）×200（W）×194（H）mm/6kg | |
