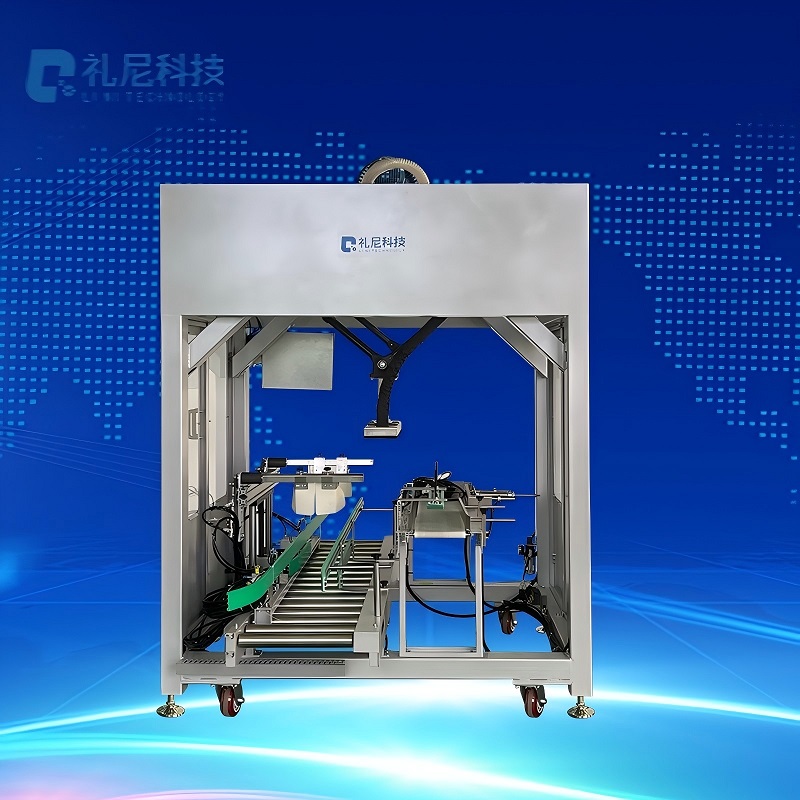

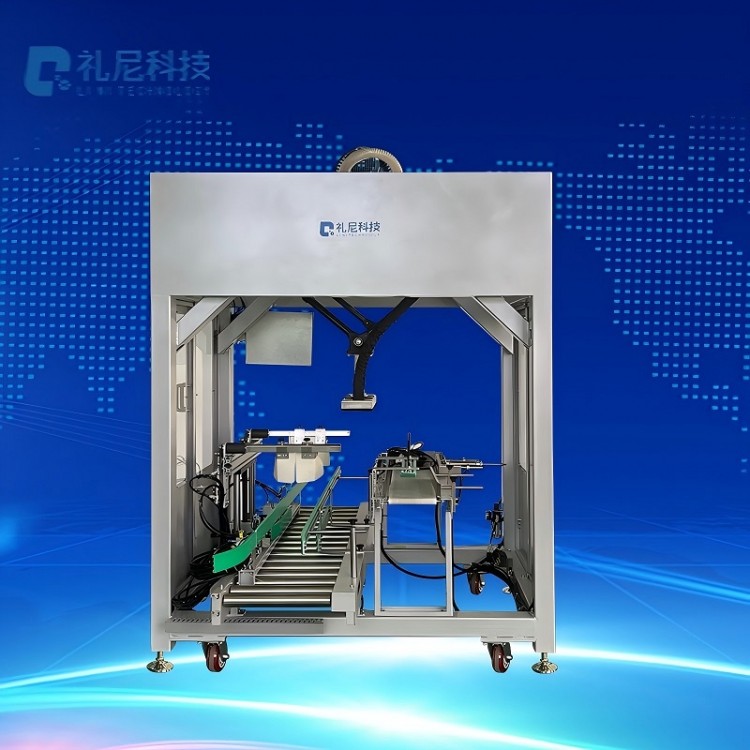

Dual-axis robotic case packer

One,Technical Specifications

Model: Robot ArmLN1200

Packing speed:（m/min）10~15pcs/min

Single Extraction Material Weight: (kg)≤2

Total Power:(Kilowatts) 2.03

Pressure Source Supply: kg/cm²）0.6~0.8MPa

Machine Net Weight (kg)500

Machine dimensions:1584×2100×1500mm

Power Type: 220V 50Hz

Note:1.Material Height100mm At present, the overall height of the inhaler≤120mm

2. Tobacco accessories must be custom made or self-produced according to material specifications.

Two, Key Performance Features

1、The machine features a simple structure, easy operation, and is easy to maintain, suitable for packaging in various hard box and soft bag industries.

2、Relatively compact in size, saving space on the site

3、Integrated conveying, suction, boxing, and de-boxing functions

4、The entire machine integrates with a robot for automatic packaging, reducing manual labor.

5、Low noise, smooth operation

6、Faster packing speed, stable operation

7、Seamless integration with both front-end and back-end equipment.

8、Standard models are in carbon steel with sandblasted silver finish, with customization available upon customer request.

Three.Primary electrical configuration

1 Cylinder：Yadeke/Taiwan

2 Start/Stop ButtonSchneider

4 Relay:Omrone/Japan

5 Reducing Motor:New Treasure/Japan

6 Servo Motor:Huaiqian/China

7 Touchscreen:（10 1 inch) Huichuan/China

8 Photoelectric sensor:Sick/USA

Five: Precautions for Operation of the Palletizing Module

1. Please read the operating instructions thoroughly before proceeding.

                                                                                                                                                                                                                                 2. Set to low-speed operation during trial run
