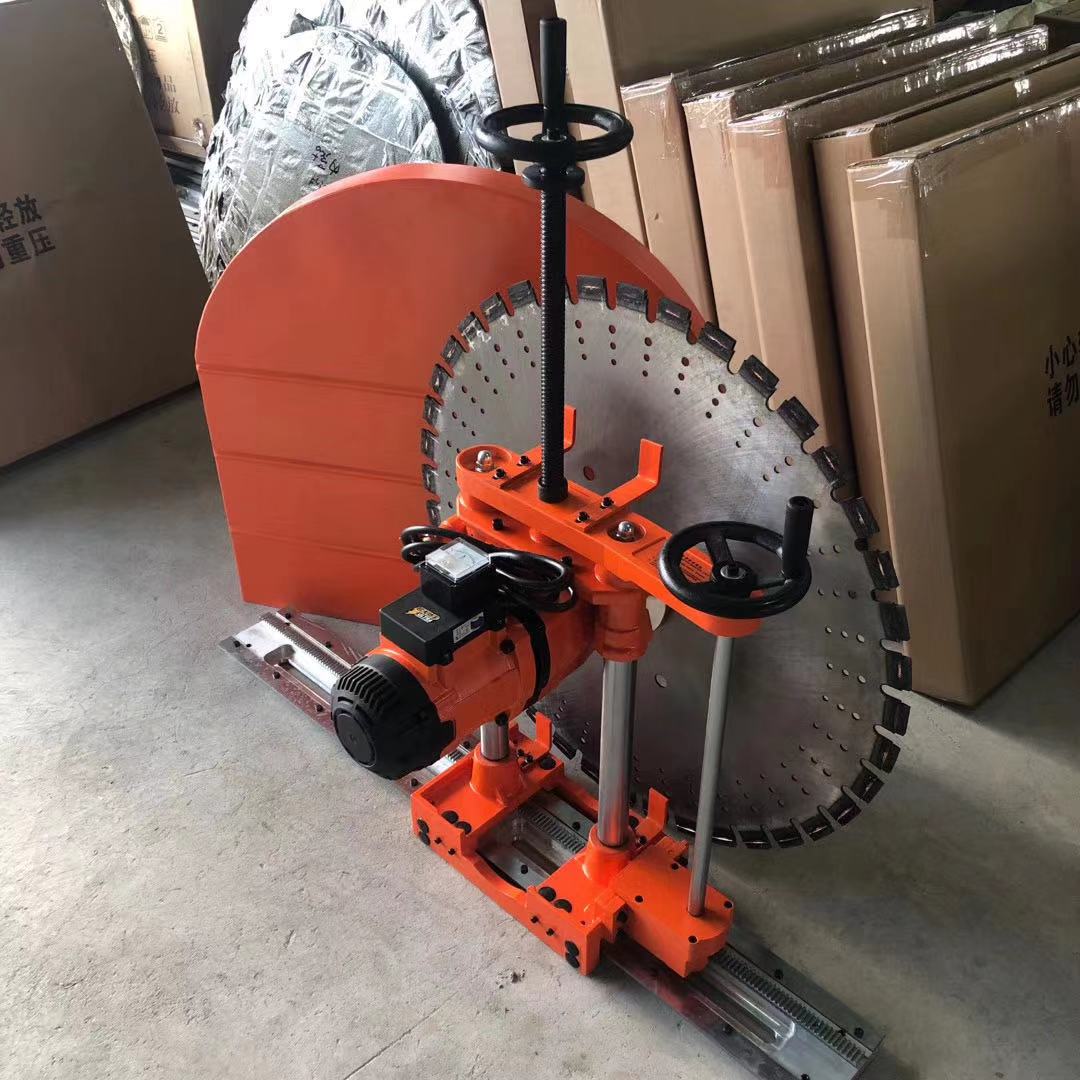

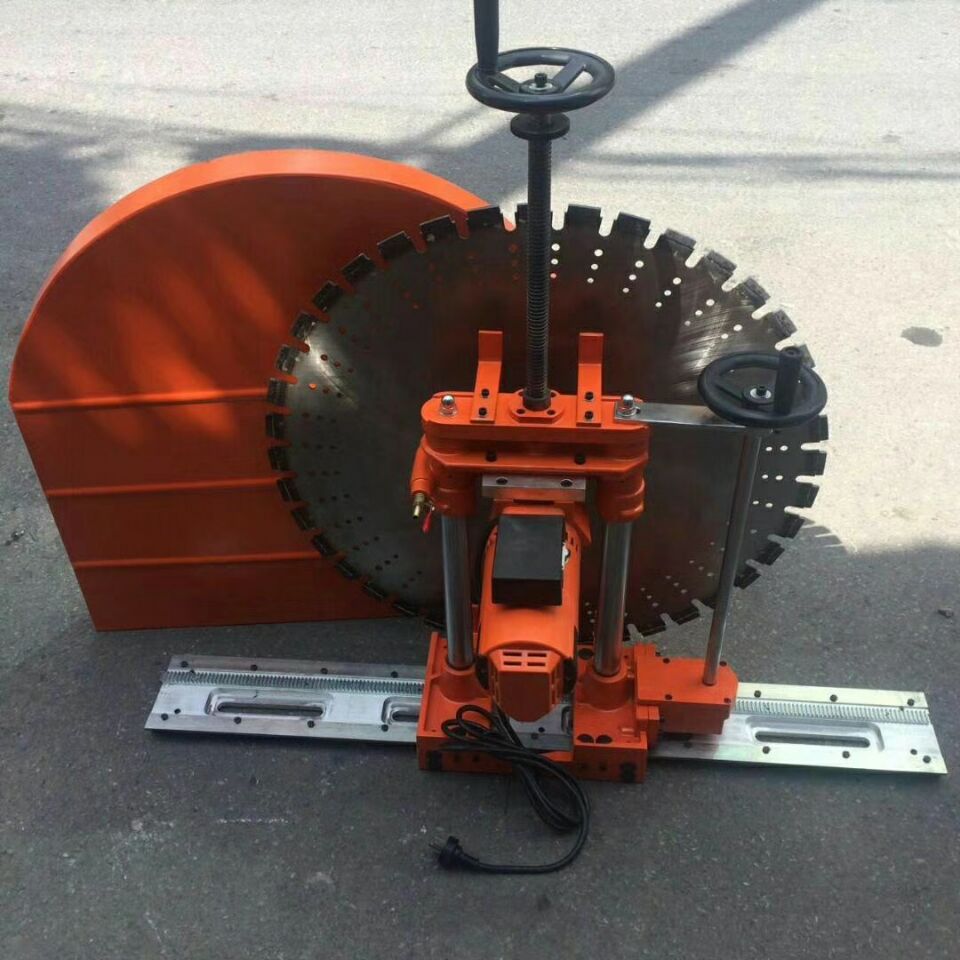

Automatic Wall Cutting Machine  Manual Cutting Machine  Concrete Wall Cutting Machine

Voltage220V, Frequency: 50-60Hz
Power: Model 8006680w (contains 800 saw blades, cuts up to 320mm)
Model 10007500W (contains 1000 saw blades, cuts up to 420mm)
1200 Model7680w(1200 blades installed, cuts up to 520mm)

Main Unit Weight:35KG per set, gross weight 75KG

Saw blade lifespan200-400m

Cutting Efficiency:2-3m/h

Accessories:2 feet 1 inch aluminum runway, two pieces, waterproof cover.One saw blade, suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials, etc. Semi-automatic (multi-)1 walking motor and control box, track movement forward and backward is automatic, cutting is manual). Fully automatic (includes an additional walking motor and cutting motor, and one control box. It can move automatically and cut automatically).

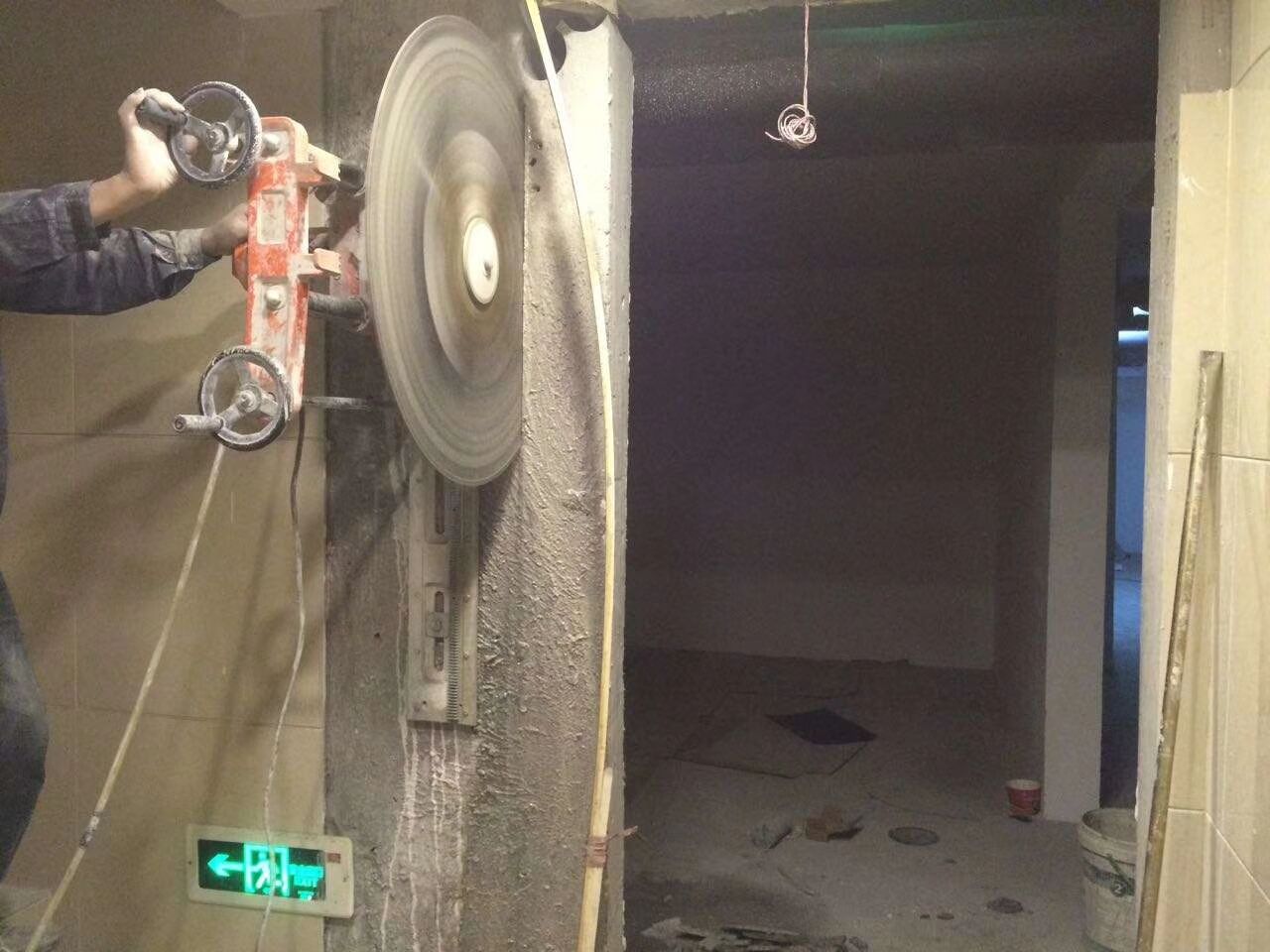

Rebar concrete wall cutting machines are extensively used in building renovations or design changes, for cutting door openings, windows, elevator shafts, and other large-scale wall cutting projects. They offer structural integrity, forming in one go, which not only avoids damage to the building's structure from traditional hammering methods or the time and resources spent on drilling circular holes but also saves considerable time and costs for subsequent adjustments. Our company's machines are equipped with heavy-duty dual-insulated high-power motors and reducers, ensuring low failure rates, long service life, and reduced maintenance costs. The mechanical clutch protection device effectively prevents damage to the machine and personnel due to misuse. They are equipped with manual or automatic cutting control mechanisms, which not only improve construction quality and speed but also greatly alleviate the labor intensity for operators.
