Four-head copper and steel strip double-sided automatic polishing machine, material handling equipment  LC-ZPDC600-4A

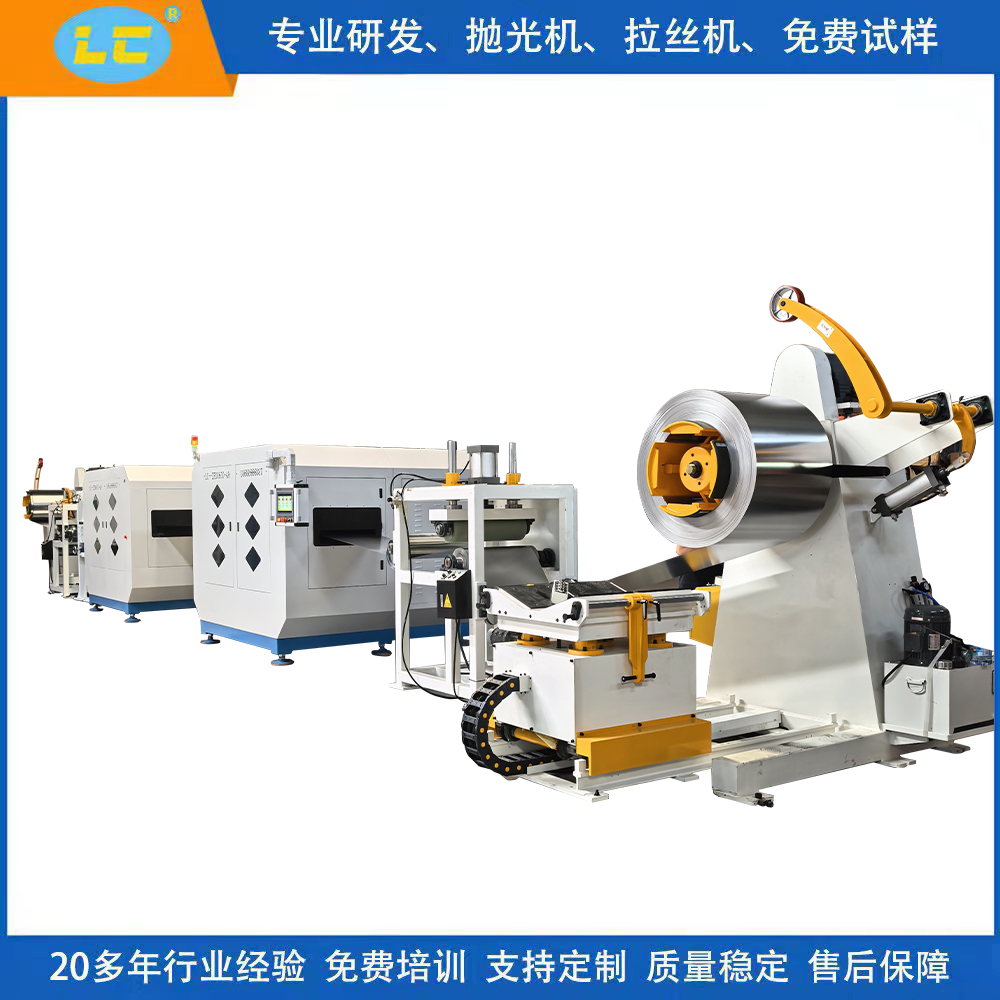

Double-sided rust removal, polishing, sanding, deburring, snowflake pattern removal, brushing, and etching for coils and strips.Oxide layerPending processing, the entire production line consists of a feeding device,4A combination of a polishing machine for material rolls and a collection device (for copper, iron, stainless steel, aluminum, aluminum alloys, titanium sheets, etc.) for surface polishing, brushing, and sanding treatments.

1MotorY4—15KW×4Tai

2. SwingMotorGearbox减速motor1.5KW×4Tai

3、Servo Motor:4Set*1.5KW

4Polishing wheel width200mmDiameter600mm

5Processed Strip CoilMaterial：Thickness: Full Size0.15－0.5mm,

6Material Thickness:0.15~1.5mm

7、Processing SpeedFor variable frequency speed controlEvery minute8-40Rice；

8Leaf Blower, Sisal Blower, Sisal Blower, Fabric Blower、Fabric Vane, Cleaned Fabric Vane

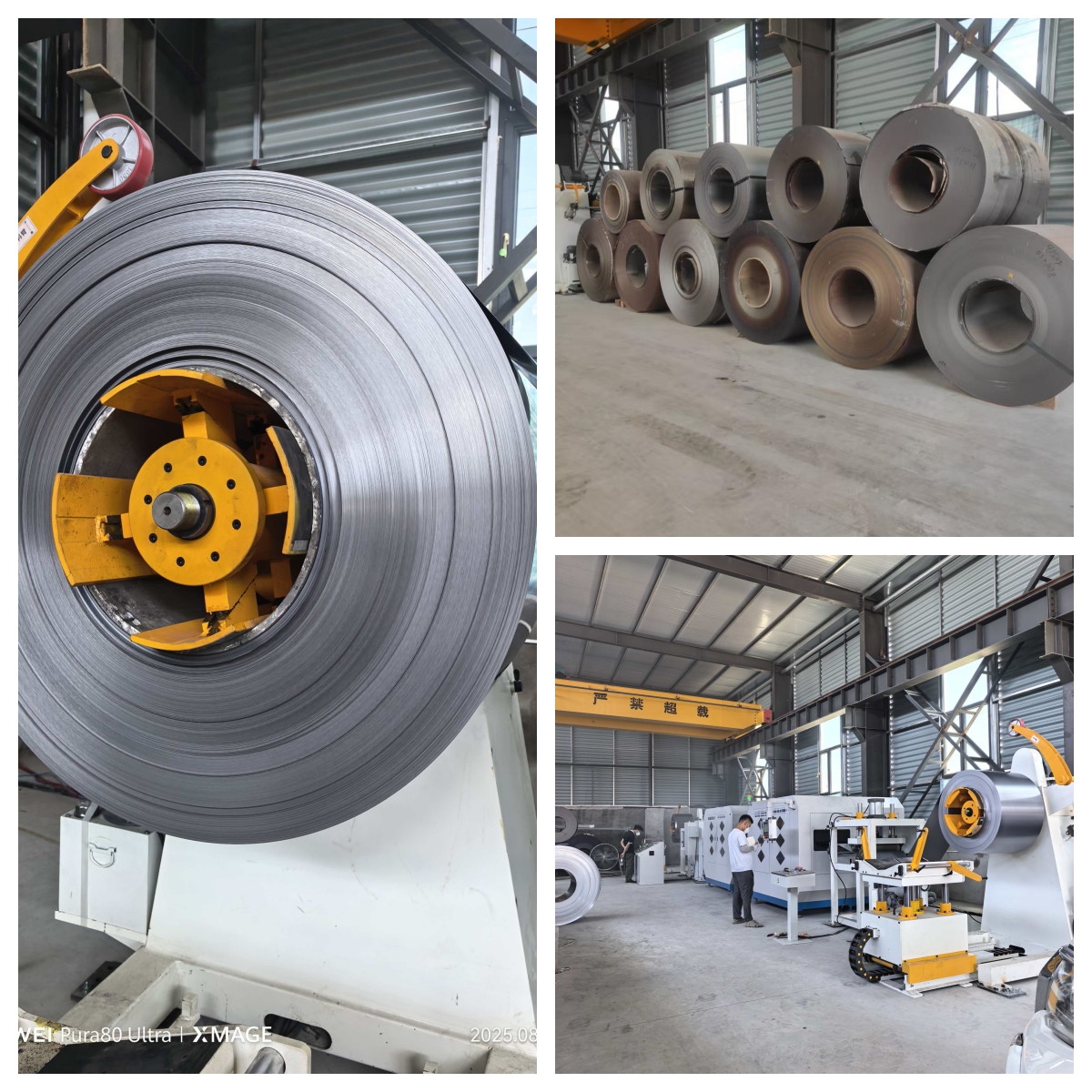

9Material coil outer diameter:1300mm

10Inside diameter of material coil:508mm

11Open and close reelsExpansion Scope:Φ460-Φ530

12Material Roll Width:200-600mm；

13Weight of Material: Less than6000KG

14Air Pressure:0.5Mpa

15Open-Book MotorAC2.2KW

16Winding Motor:AC7.5KW

17Expansion Method: Hydraulic Rod Type

18Material Supply Flow (subject to customer's request)

19、Power Supply:380V/50H_z(Three-phase four-wire)

20Total production line length:Approx.20Meters (customizable as per customer's requirement)

21Dust removal equipment:5.5KW

Design principle of double-sided automatic polishing head for steel strip, designed for high-standard polishing heads, suitable for surface polishing, sanding, wire drawing, sandblasting, paint stripping, burr removal, sanding, oxidation layer removal, rust removal, deburring, etc., such as surface treatment for metals like copper, iron, stainless steel, aluminum, aluminum alloys, titanium sheet, etc. Servo control system.

Available for custom order according to customer's requirements1-20Group of polishing heads, each head can be independently lifted or lowered as a whole and independently swayed (polishing wheels have high concentricity, no vibration).

Features: Easy to operate, stable quality, and high efficiency.Support for non-standard customization
