Huai Nan Automatic Walking Wall Cutter / Electric Wall Cutting Machine

The wall cutting machine is primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door and window openings or elevator shafts. It features manual feed and cutting. The structure is damage-free and forms in one go, not only avoiding structural damage caused by traditional hammering methods but also saving considerable time and labor in drilling circular exhaust holes.

Key Technical Parameters:

Saw blade:800mm Depth of Cut: 32cm

Power Voltage:220V, Power: 6200W

Dimensions:100*100*80cm

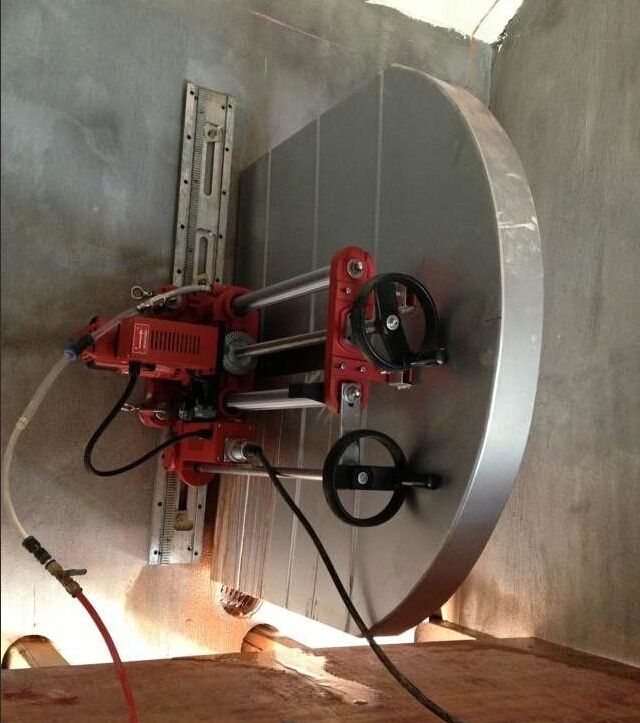

Product Real Photo Display

Wall Cutting Machine Operation Instructions:

Secure the track with expansion bolts, place the machine on the track (the track has teeth, the machine has gears that won't slip, and can only be moved by handwheels), install the blade and the guard, then turn on the water and electricity. Operation is done with both handwheels: the middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machines feature heavy-duty double-insulated high-power motors and reducers, with low failure rates, long service life, and cost savings on maintenance.      Mechanical clutch protector, effectively preventing damage to the machine and personnel due to improper operation. Equipped with manual or automatic cutting control devices, it not only improves construction quality but also accelerates the construction speed, while significantly reducing the labor intensity of the operator.

Machine Installation

First, install the track, then place the machine on the track.To enable horizontal cutting of walls, the correct installation of the track is: the motor should face upwards and the blade downwards. During cutting, the rotation direction of the blade should be as opposite to the motor's running direction as possible. This not only reduces the cutting time but also improves the cutting efficiency.

First, drill a fixed hole for a 16.3-16.5mm diameter expansion screw, approximately 165mm from the cutting point of the percussion drill, with a depth of 55mm. This hole can only accommodate one M12 expansion screw included with the machine. The guide rail can be installed and used in any direction around the hole.

2. Clean out the small debris inside the holes with an air gun.

3. Insert the M12 expansion screw provided with the machine, then tap the screw into the expansion screw hole with a mallet, and hammer it to secure the expansion screw.  Ensure that the expansion bolts are securely fastened in the holes; otherwise, the machine may move or fall off during operation. Use the expansion bolts and screws provided with this machine, as well as the fixed guide tracks, to determine the number of expansion bolts based on the softness of the cutting surface. Track Secure tightly.
