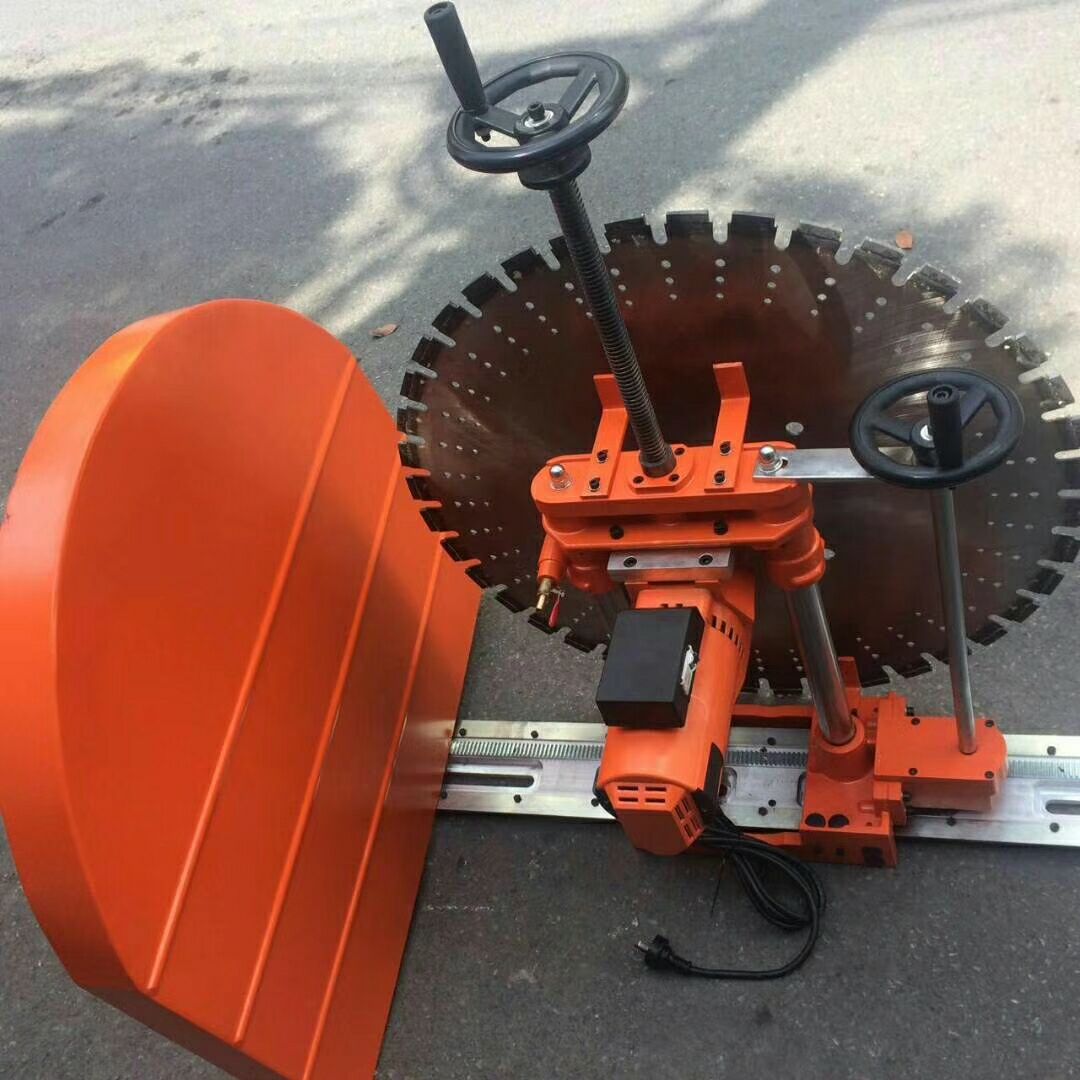

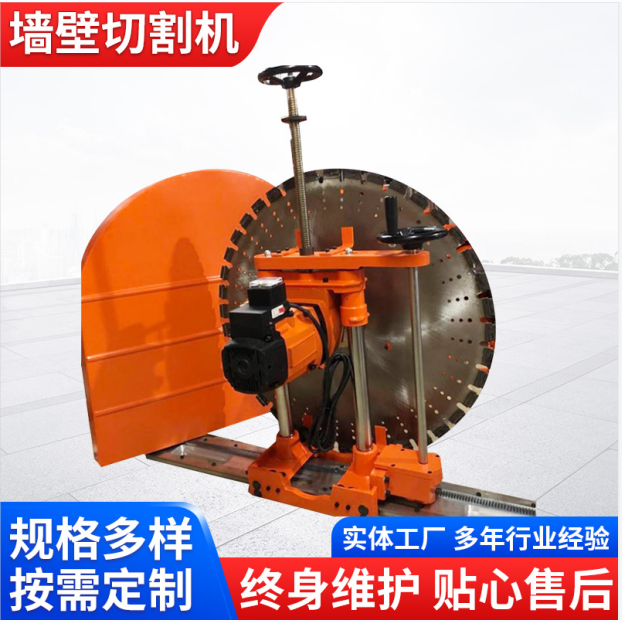

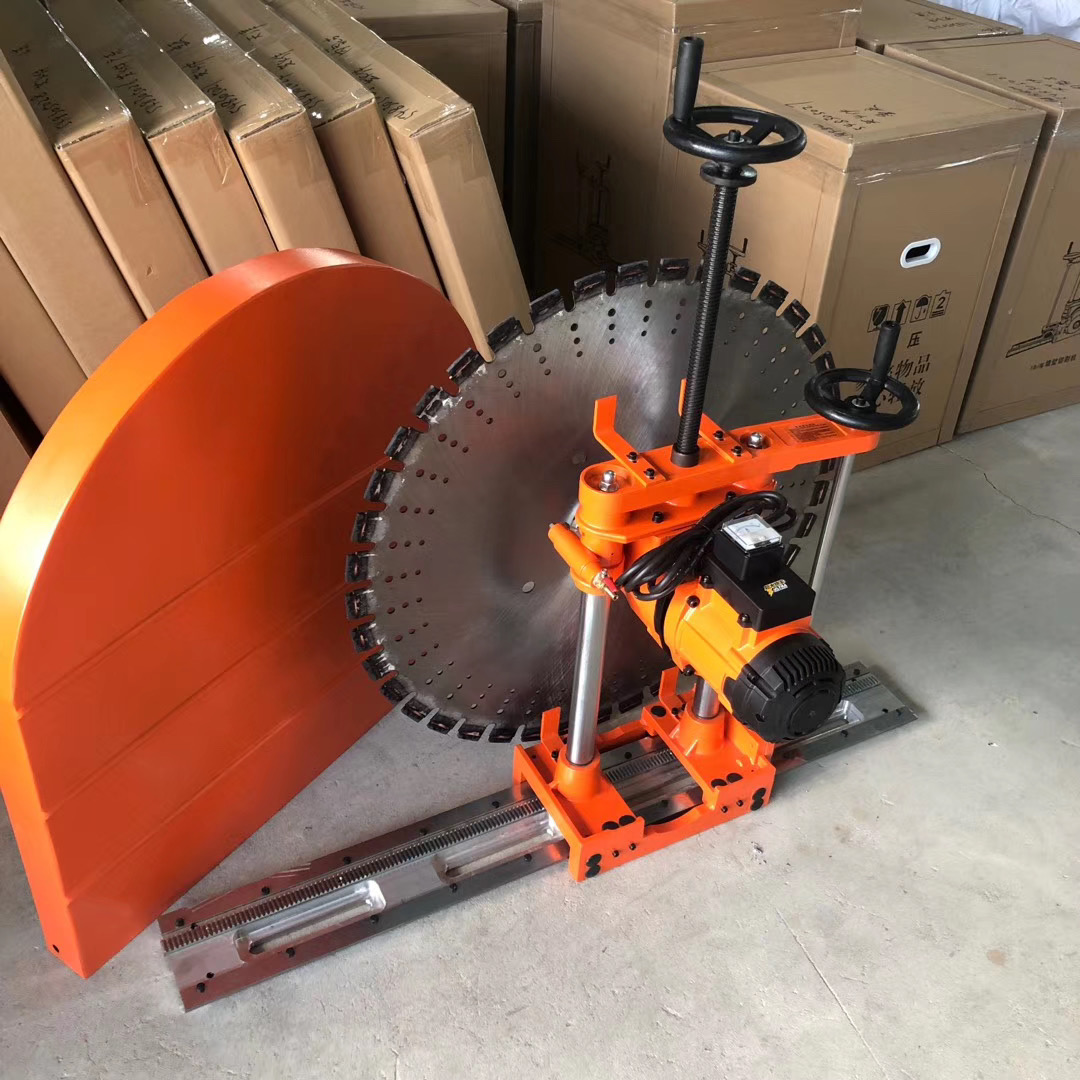

Large Reinforced Concrete Wall Cutting Machine  Wall Saw  AY-800 Wall Cutting Machine

Concrete reinforcement cutting wall machine is suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials, etc.

Concrete Reinforcement Cutting Wall Machine Repair and Inspection

URGENT: Do not plug in the power before checking the machine.

Please provide the Chinese content that needs to be translated into American English.MachineCumulative working time exceeds24HourClean and maintain the machinery. Ensure the lubrication and smooth operation of the lifting screw main shaft on the hoist. (No mud or debris should be present; this facilitates operation, while the opposite can damage the machine.)

1Inspect saw blades

Use worn-out saw blades to reduce cutting efficiency and overwork the motor; replace the saw blade arrow in time.

2Inspect wheel

Inspect bottom base16Wheel only, is it seized or malfunctioning?,The gap between the wheel and track must not exceed0.2mmOtherwise, you can loosen the pulley fixing nut and adjust the corresponding hex set screws on both sides of the machine base.

3Regular inspections

Monthly inspection required: parallelism between the blade's travel direction and the track, and the distance between the leading edge of the blade and the track must not exceed1 mm,Otherwise, during the cutting process, the concrete may jam the blade, reducing cutting efficiency..If not parallel, it can be used6mmRemove the hexagon socket from the center seat.4Double-speed transmission fixing screw.Adjust the parallelism of the taper saw blade.
