Electric wall saw for renovation Wall Cutting Machine Concrete wall cutting machine

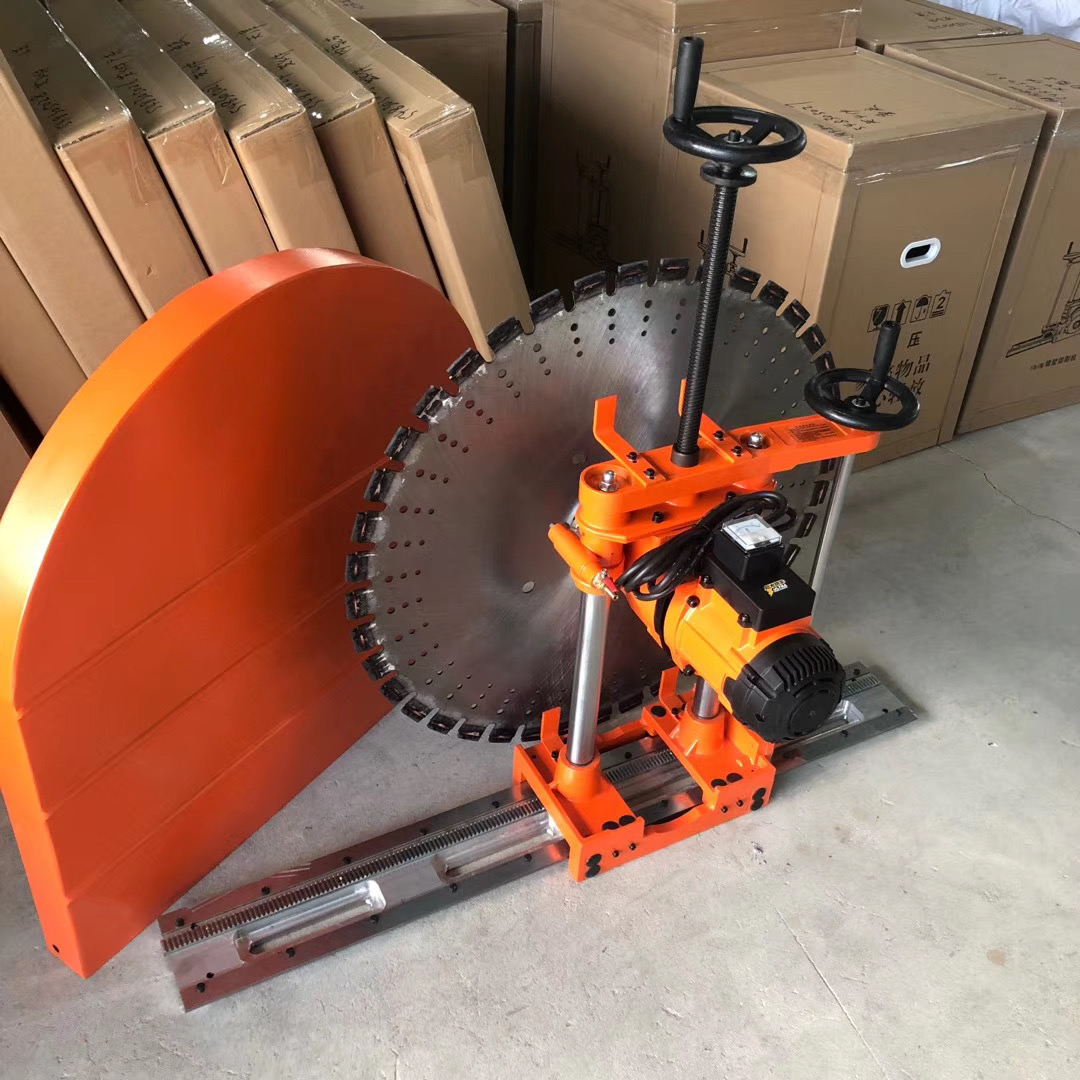

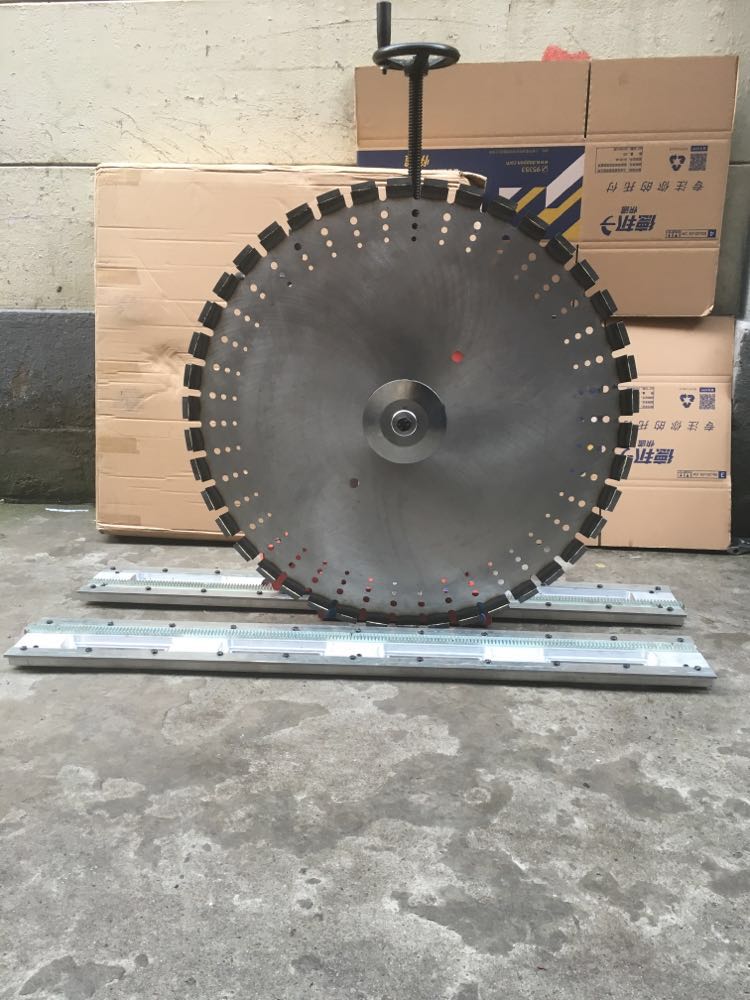

Accessories:Two 1.2-meter aluminum tracks, waterproof covers. One saw blade, suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials, etc. Semi-automatic (multi-)1 walking motor and control box, track movement is automatic front and back, cutting is manual. Fully automatic (includes 1 additional walking motor and 1 cutting motor, 1 control box. Can move automatically, cut automatically).

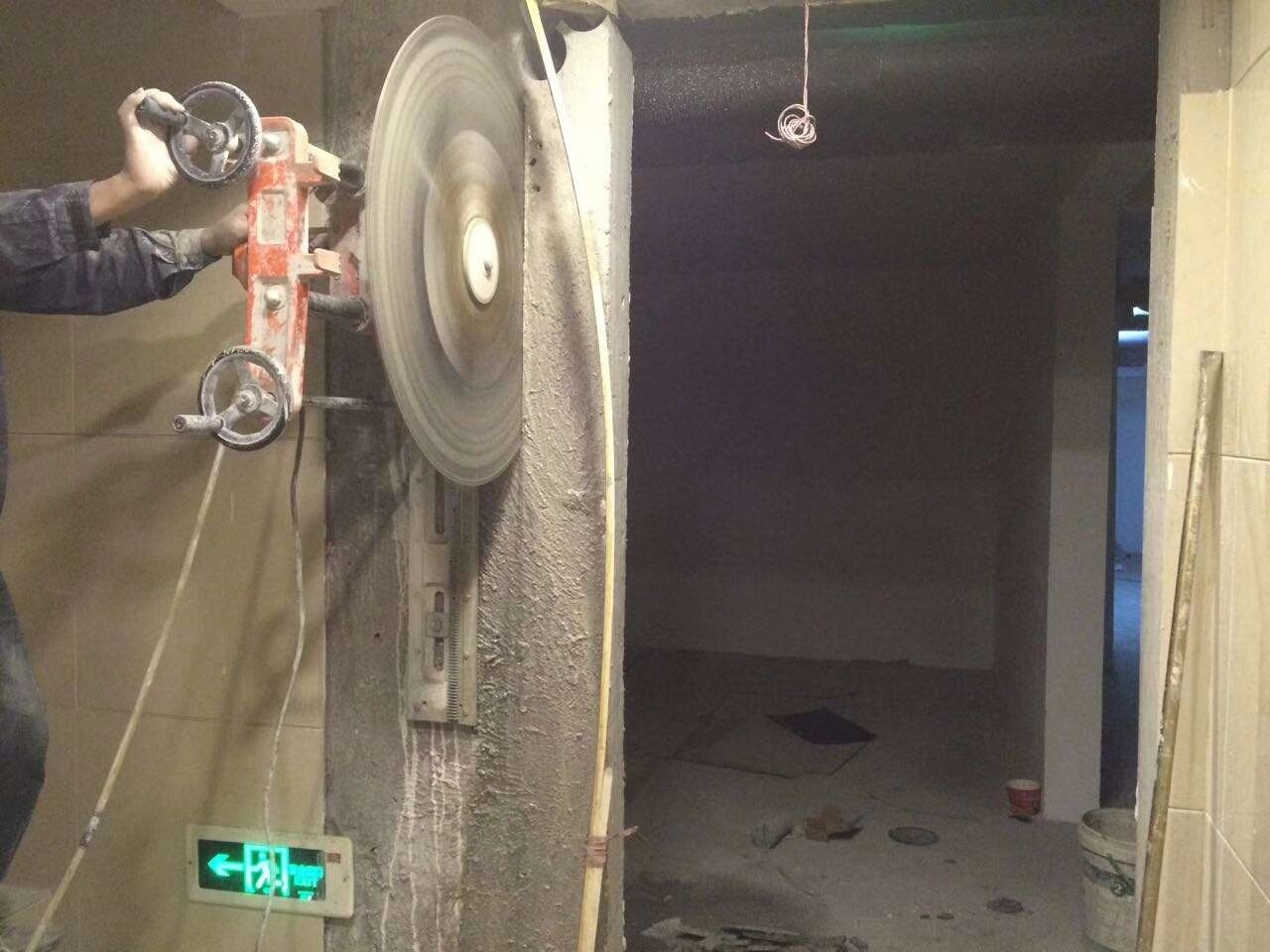

Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting through large areas of walls such as door and window openings or elevator shafts. They offer non-destructive cutting, forming in one go, thus avoiding the damage to building structures caused by traditional hammering work. Additionally, they save time, materials, and labor compared to drilling circular排孔 methods, as well as substantial time and cost for adjustments.
This machine is easy to operate. Secure the track with expanding screws, place the machine on the track (the track has teeth, and the machine has gears to prevent slipping; movement is only possible by handwheel), install the blade and protective cover, then operate with both handwheels after water and electricity are connected. The middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track. Efficiency varies by individual. Generally, we24-inch wall, 10 minutes per meter Single-cut method (cut once, lift the knife, move to the next cutting spot, and cut again).
Utilizing heavy-duty dual-insulated high-power motors and gearboxes, with low failure rates and long service life, resulting in cost savings on maintenance. Mechanical clutch protection device effectively prevents damage to the machine and personnel due to improper operation. In addition to improving construction quality, it also accelerates construction speed, while also significantly reducing...Reduce the labor intensity for the operator.
