House Renovation Wall Cutting Machine, Decorative Wall Cutting Machine, Concrete Wall Cutting Machine

Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas such as door openings, windows, and elevator shafts. Manual feeding and cutting. The structure remains unharmed, forming in one go. In addition to avoiding damage to the building structure caused by traditional hammering work, it also saves time, materials, and labor in drilling circular holes, as well as considerable time and costs for adjustments.

Main Technical Parameters:

Saw blade:800mm Cutting Depth: 32cm

Power Voltage:220V, Power: 6200W

Dimensions:100*100*80cm

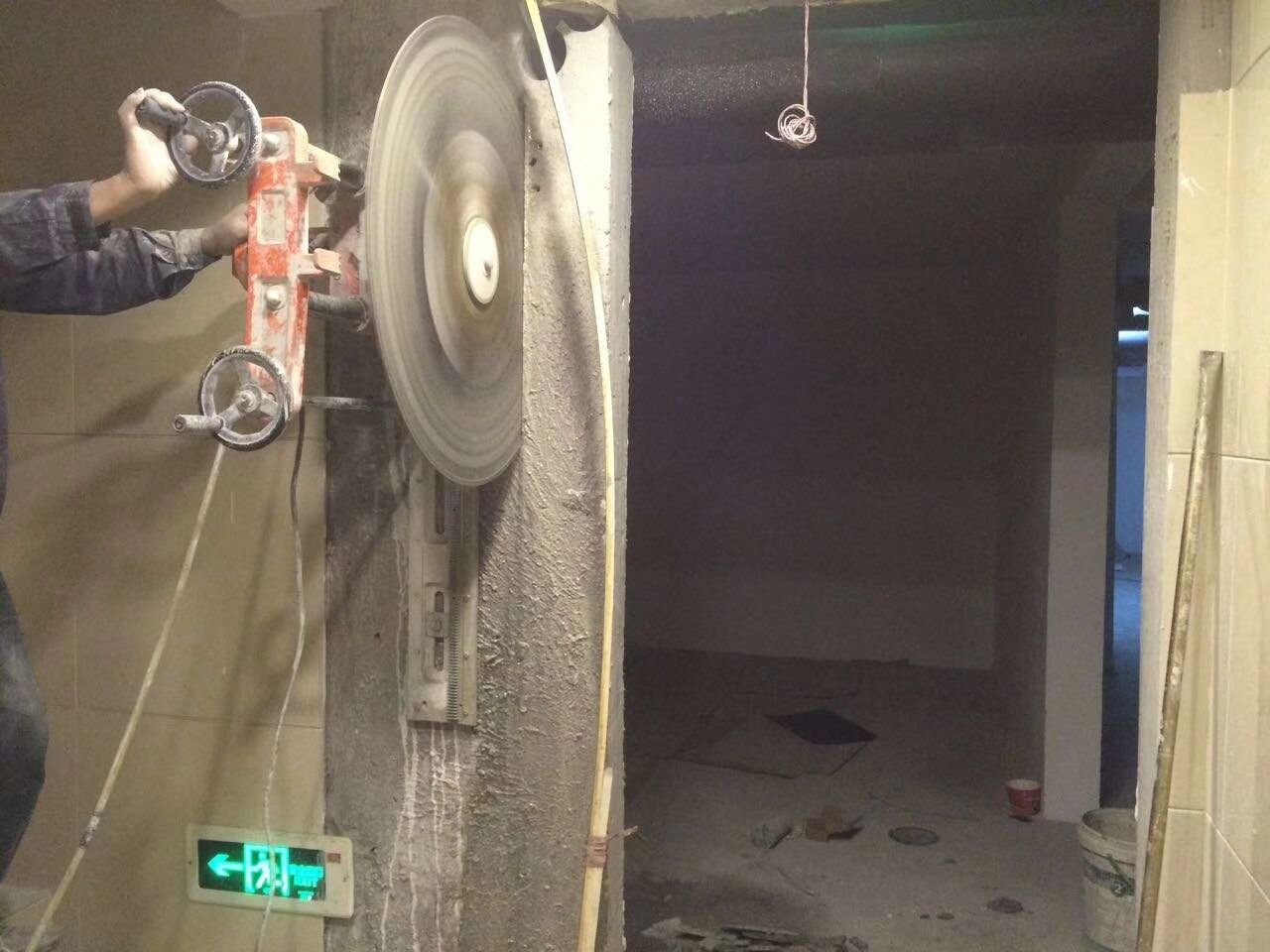

Product Real Photos Display

Wall saw operation instructions:

Secure the track with expansion bolts, place the machine on the track (the track has teeth, and the machine has gears to prevent sliding; movement is only by handwheels), install the blade and protective cover. Once water and power are connected, operate the machine using the handwheels: the middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machine features a heavy-duty double-insulated high-power motor and reducer, boasting low failure rates, long service life, and cost savings on maintenance.      Mechanical clutch protector, effectively preventing damage to the machine and personnel due to misoperation. Equipped with manual or automatic cutting control, it not only improves construction quality but also accelerates work speed, while significantly reducing the labor intensity of the operator.

Machine Installation

First, install the track, then place the machine on the track.To horizontally cut through walls, the correct installation of the sliding track is: the motor should face up and the blade should face down. During cutting, the rotation of the blade should be as opposite to the motor's running direction as possible. This not only reduces cutting time but also improves cutting efficiency.

First, drill a hole with a hammer drill at a position approximately 165mm from the self-separation cutting, creating a fixed hole for an expansion bolt with a diameter of 16.3-16.5mm and a depth of 55mm. This hole can only accommodate one M12 expansion bolt included with the machine, and the track can be installed and used in any direction around the hole.

2. Clean out the small debris from the holes using a blow gun.

3. Drive a M12 expansion screw into the machine, then insert a mallet into the expansion screw hole, and strike it with a hammer to secure the expansion screw.  Ensure that the expansion bolts are securely fastened in the holes; otherwise, the machine may move or fall off during operation. Use the expansion bolts and screws, as well as the fixed guide rails provided with this machine, and determine the number of expansion bolts based on the softness of the cutting surface. Track Secure firmly.

4. When installing the main unit, align it with the forward indicator on the unit. Connect the speed controller and the plug in sequence, then turn the handwheel counterclockwise to move the main unit along the track.

5. Insert the blade; the main housing has a diameter of 35mm. The hex screws for securing the blade  Open-end wrench  Tighten.

6. Align the blade with the cutting line and guide the track forward  Adjust the six hex nuts on the moving track with a wrench to move the six hex head level adjustment screws up and down, to align the level; this prevents the moving rail from derailing at the joint.
