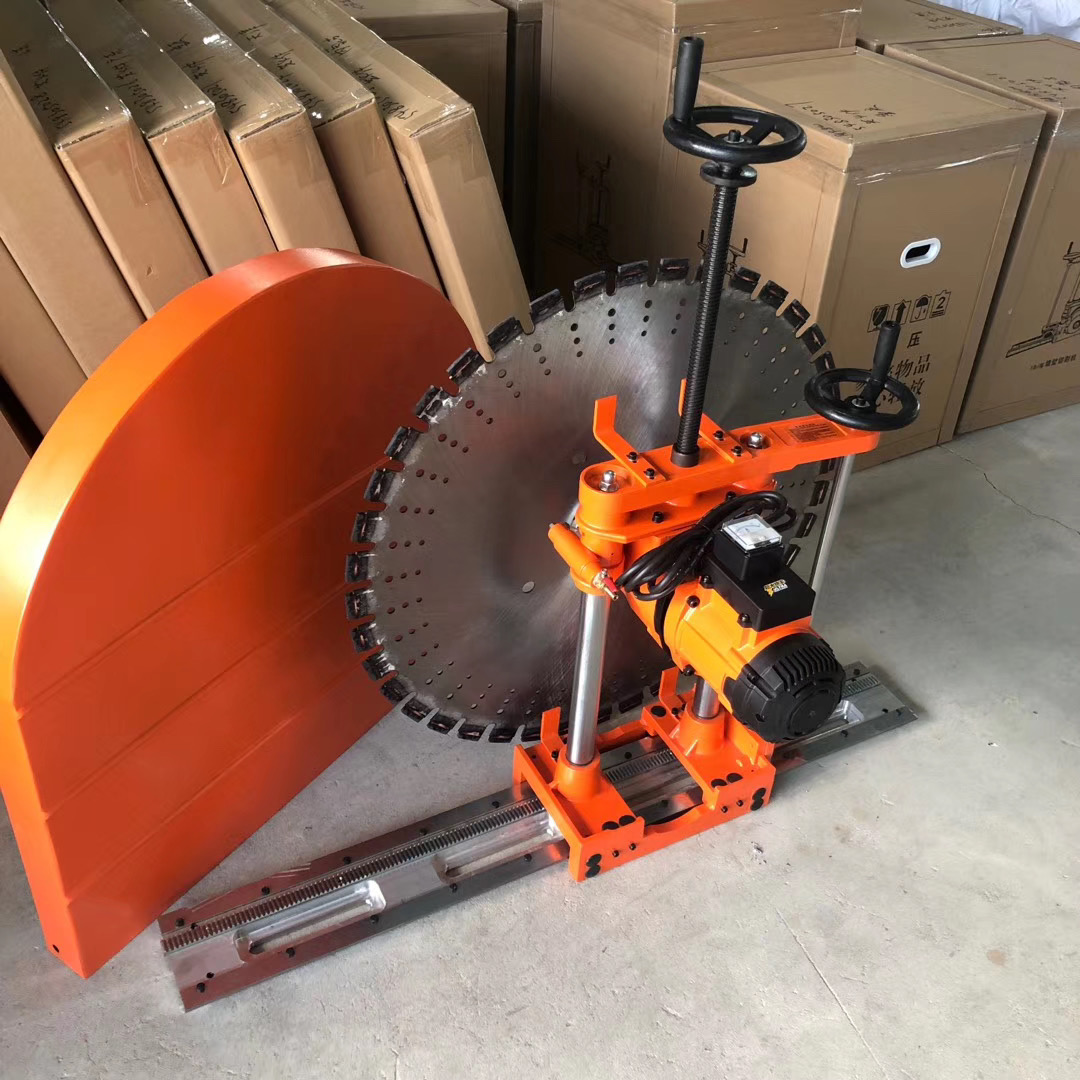

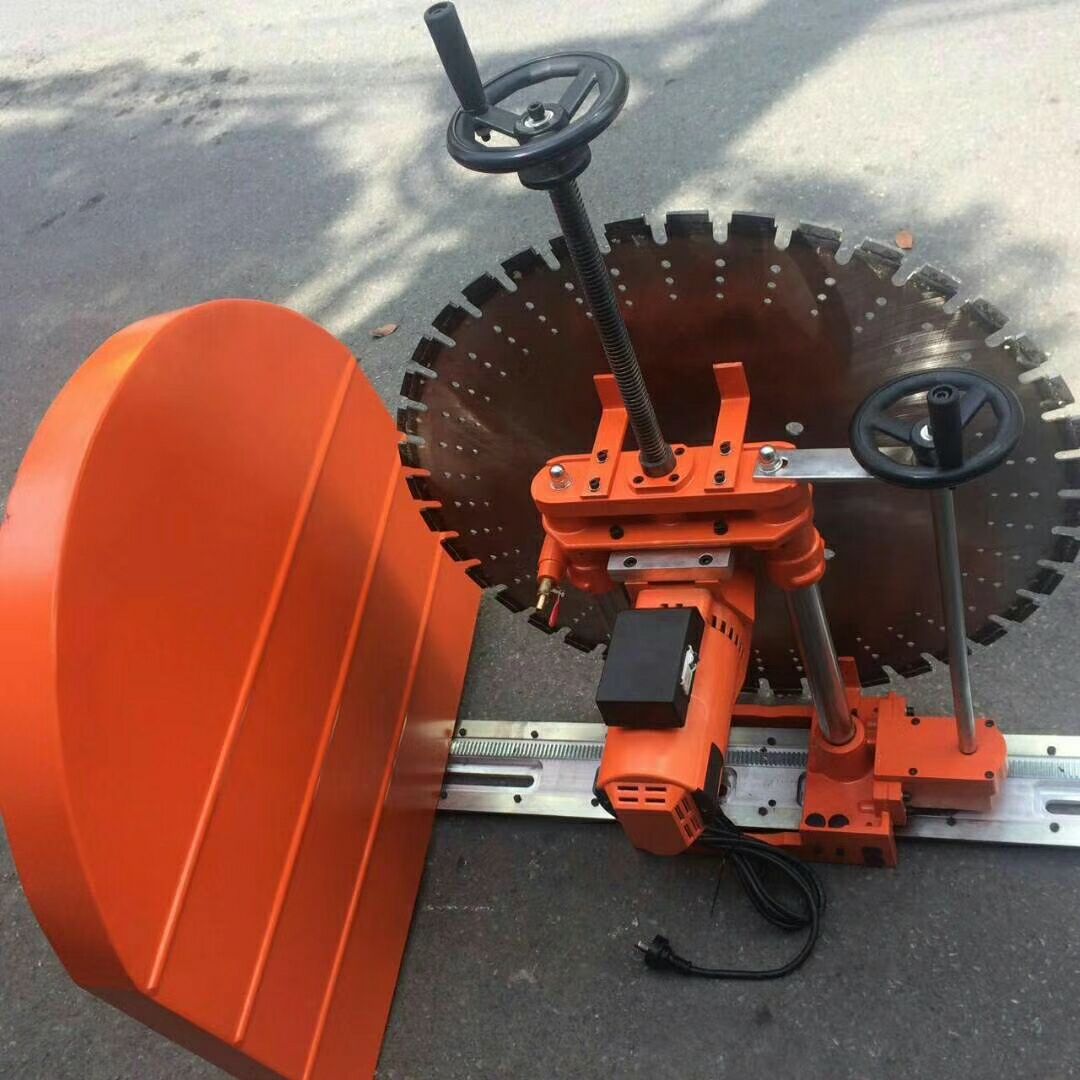

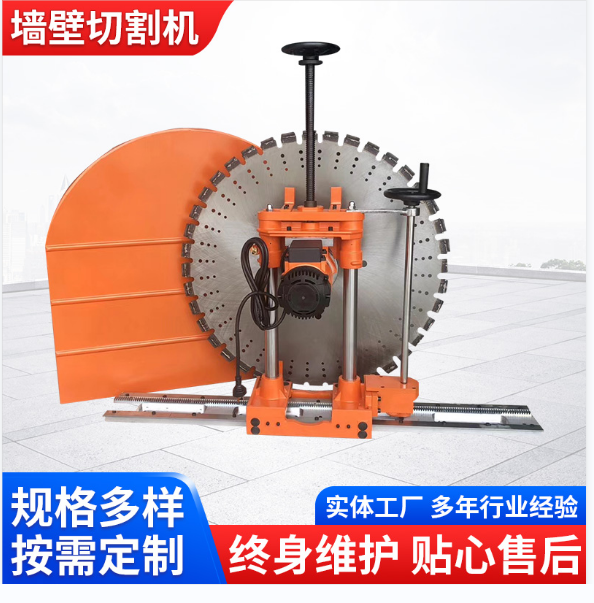

24 Wall Cutting Machine for Walls  Reinforced Concrete Cutting Machine  Door Opening Wall Cutting Machine

Electric Diamond Polishing MachineChain Saw Product Features：

Optional diamond chain, coal saw chain, wood saw chain, and tree lifting chain.

 3) Optional Length350mm Or500mm Guide plate 。

 4) Portable design, lightweight main unit, easy for single-person operation. User-friendly with a front handguard and a cleverly designed assist frame, reducing the operator's labor intensity.

 5) Suitable for manual coal mining assistance, it can quickly cut into coal seams, and is more efficient than manual coal mining by pure human labor.5Multiple times.

 6) Utilizing wet cutting technology. No dust is produced. Water flows through the holes in the middle of the guide plates to the cutting area, serving as lubrication and cooling.

 7) The guide plate includes multiple sealing rings, ensuring that water flow will not damage the main unit.

 8)       Chain saw blades are made with diamond sintering technology and feature laser welding, allowing for quick cutting into coal seams.

 9) Imported diamond chain saw bladeDurable  Damaged, long lifespan,High economic efficiency.

 Electric Diamond Chain Saw Technical Specifications:

 Effective Chain Plate Cutting Dimensions: 47cm/35CM

 Spindle Speed:2800 r/min

 Spindle Torque:7.5N.m

 Rated Power:1.5KW  /1.8KW

 Rated Voltage: Three-phase127VThree-phase330V

 Rated Frequency:50Hz

 Please provide the Chinese content you would like translated into American English.    Number:3N

 Rated Current:10.

 Motor Efficiency:81%

 Work Method:S2-30min

 Working Water Pressure:0.2~0.6mpaLow water pressure requirements, but ensure water availability for cooling, lubricating, and dust removal of the saw chain.)

 Packaging Size:800*30*30cm

 Single Machine Weight:14.5KG
