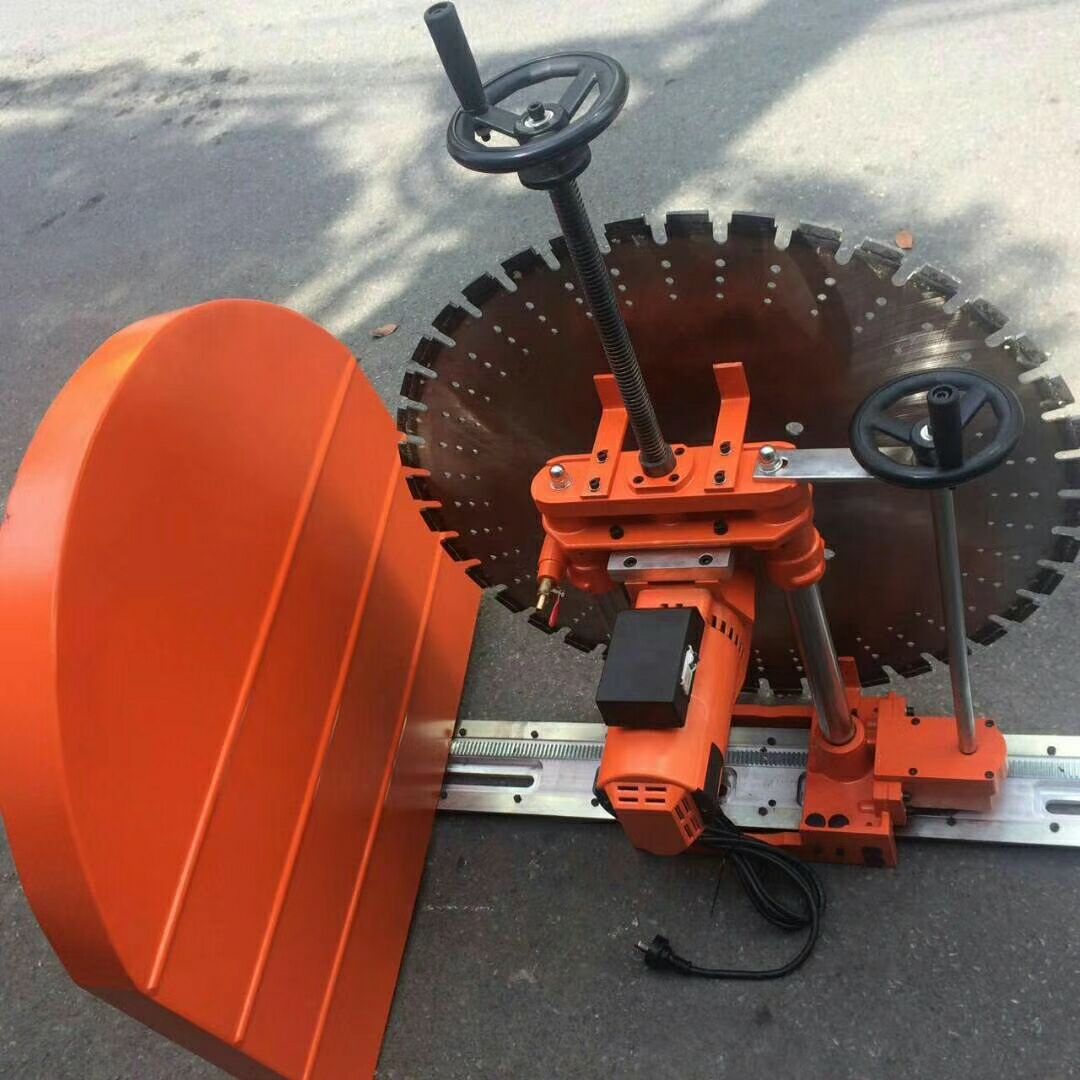

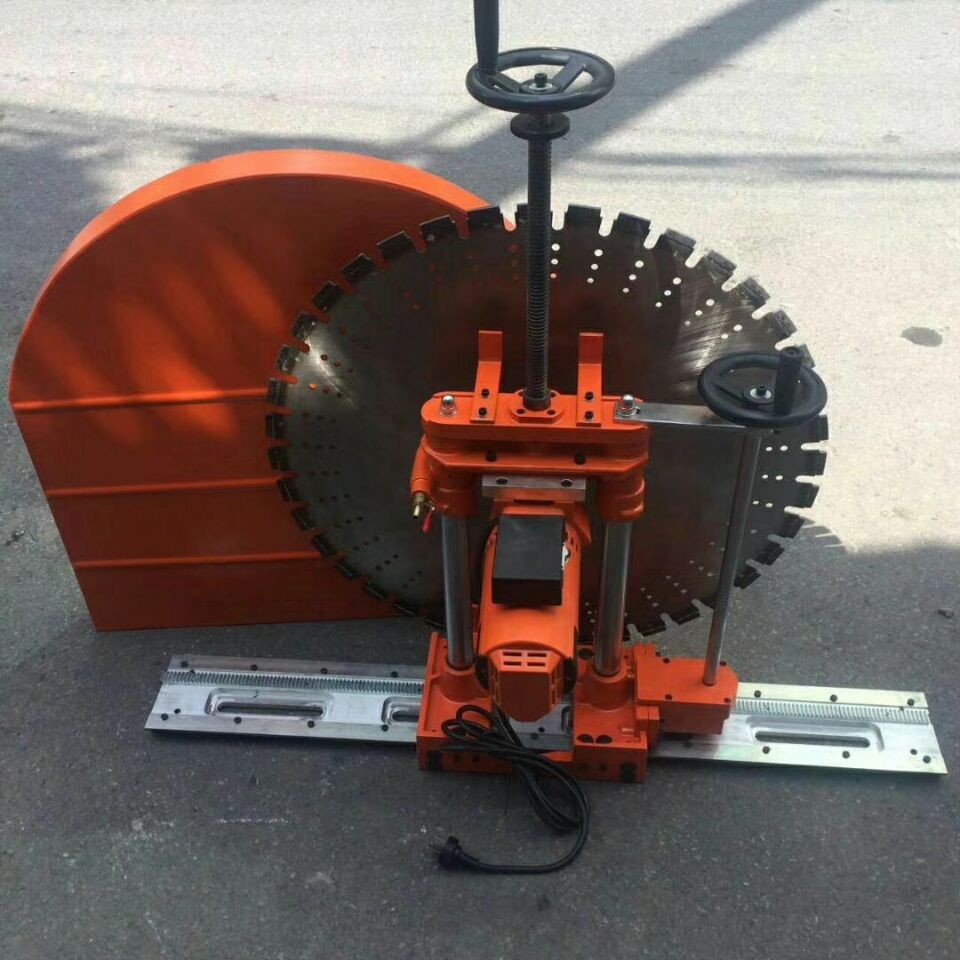

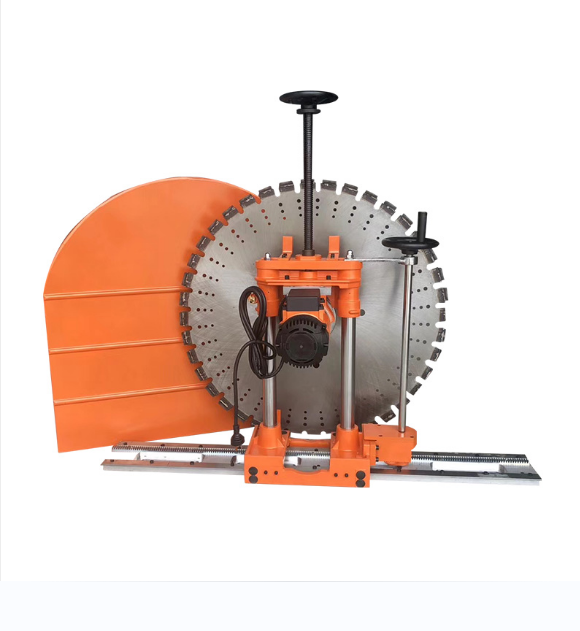

Manual/Automatic Wall Cutting Machine, Wall Cutter, Complete Accessories for Wall Cutting Machine

Optional diamond chains, coal saw chains, wood saw chains, and tree planting chains.

 3) Optional length350mm Or500mm Guide plate 。

 4) Portable design, lightweight main unit, easy for single-person operation. User-friendly with a handguard panel in front and a cleverly designed assist frame, reducing the operator's labor intensity.

 5) Can be used as manual coal mining assistance, quickly cutting into coal seams, and is more efficient than manual coal mining by pure manpower.5Several times over.

 6) Wet cutting technology employed. No dust production. Water flows through the holes in the guide plates to the cutting area, providing lubrication and cooling.

 7) The guide plate features multiple sealing rings to ensure water flow does not damage the main unit.

 8)       Chain saw blades are made with diamond sintering technology and feature laser welding, allowing for quick cutting into coal seams.

 9) Imported diamond chain saw headsWear-resistant  Damaged, long-lasting life,High economic efficiency.

 Electric Diamond Chain Saw Technical Specifications:

 Effective Chain Plate Cutting Size: 47cm/35CM

 Spindle Speed:2800 r/min

 Spindle Torque:7.5N.m

 Rated Power:1.5KW  /1.8KW

 Rated Voltage: Three-phase127VThree-phase330V

 Rated Frequency:50Hz

 Please provide the Chinese content you would like translated into American English.    Number:3N

 Rated Current:10.

 Motor Efficiency:81%

 Work Method:S2-30min

 Working Water Pressure:0.2~0.6mpaWater pressure requirements are not high, but ensure that there is water available for cooling, lubricating, and dust removal of the saw chain.)

 Packaging dimensions:800*30*30cm
