Concrete Wall Sawing Machine, Electric Wall Cutting Machine, Cement Wall Cutting Machine

Reinforced concrete wall cutting machine30/40/50 cm Wall Cutting Machine, Wall Saw Blade for Reinforced Concrete, Wall Cutting Machine (for cutting elevator shafts, door holes, and walls), Building Renovation Wall Grooving Machine, Wall Cutting Machine, Desk-Type Cutting Machine, Reinforced Concrete Cutting Machine 800, Concrete Cutting Machine, Concrete Cutting Machine, Reinforced Concrete Cutting Machine 800, Concrete Cutting Machine, Cutting Depth 32CM, walls are 24cm thick, floors are 13cm thick, and partition walls are 30cm thick. Factory Direct Sale800-1200 Desktop Wall Cutting Machine Wall Cutting Machine Steel Reinforced concrete cutting saw blade

 Application Range: Suitable for concrete walls, brick walls, or stone, highways, bridges, and construction engineering cutting. It can be cut at any angle, occupies minimal space, and allows for flexible control of the cutting area.

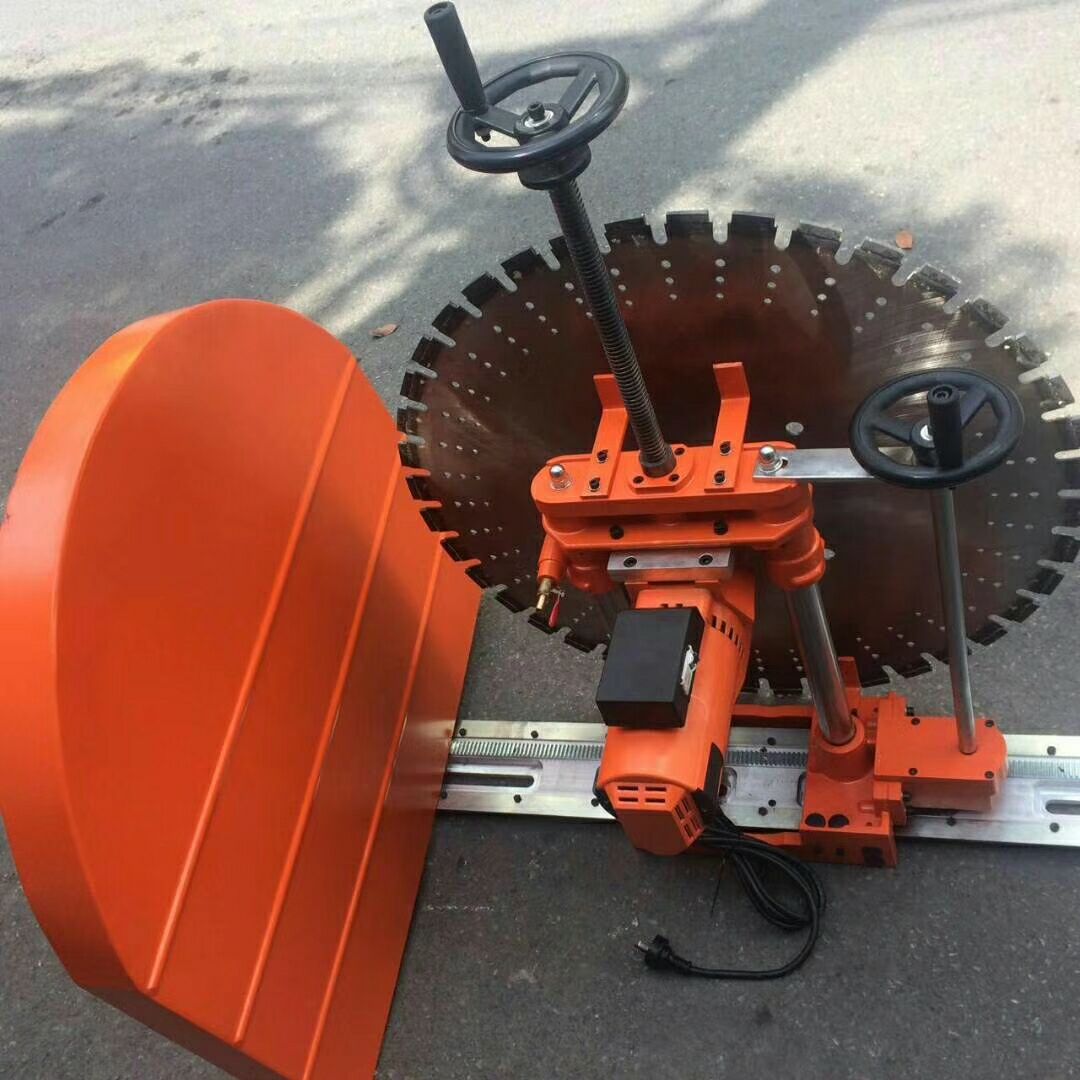

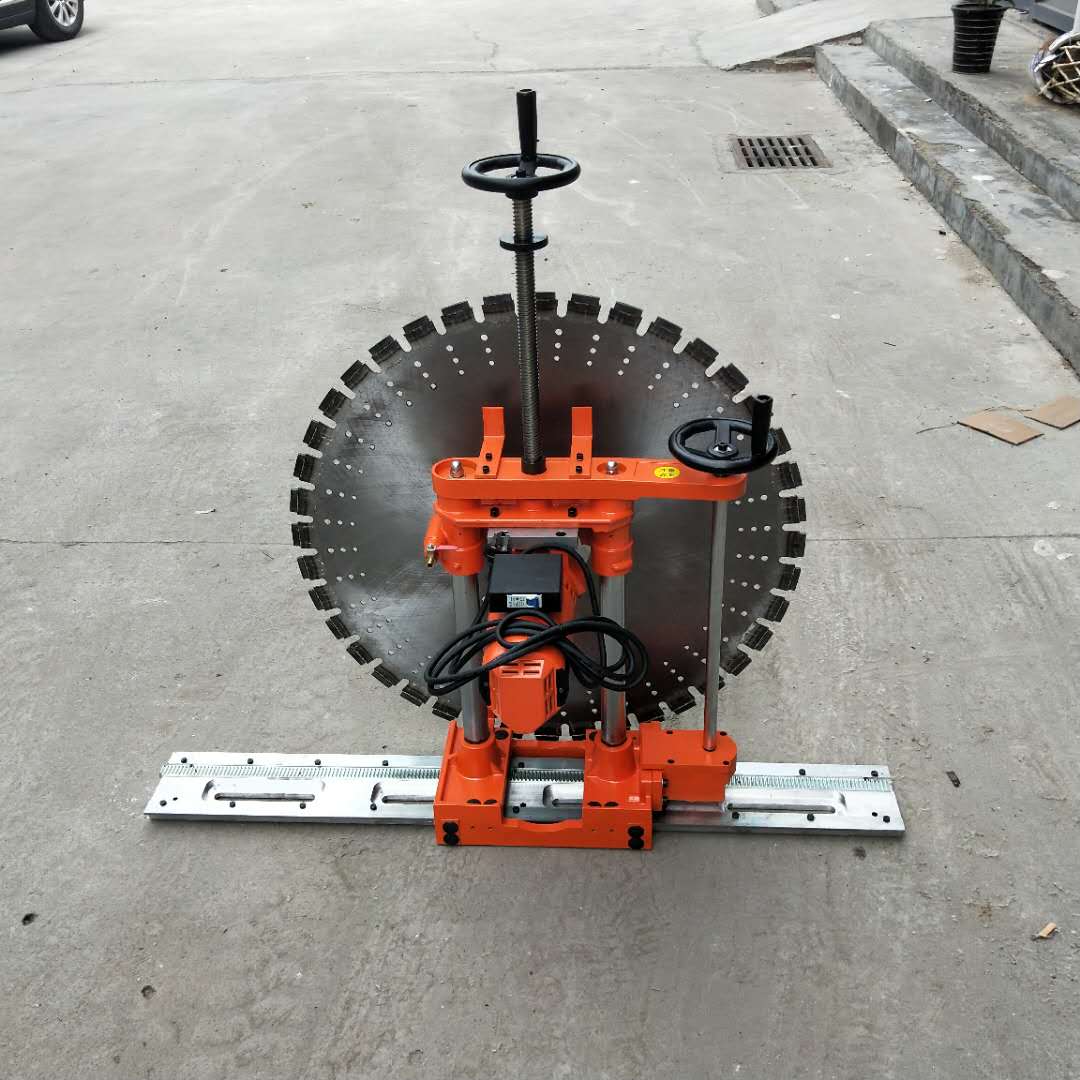

High power, stable output, export-grade gears, durable, fast cutting speed Higher material strength, twice that of ordinary cutting machines; the lifting screw is made of bearing steel, with wider threads.2x, betterDurable  Rarely requires replacement; dust cover with fixed corner and integrated design for the whole machine. AY- 800 Manual Cutting Machine [Best Seller] Technical Specifications:

Motor Power:6680

Power Voltage:220V

Saw blade speed:300-600R/MIN

Blade Diameter:800MM

Cutting Depth:32 cm

The complete set of machines includes:

Server and Rack    Power Motor

Thick Custom Aluminum Alloy Protective Shield

2 1.2-meter tracks

1 piece  800 blades [All blades here can be mounted on the side tray]

Carbon brushes set, fixed bolts and stainless steel washers4 sets, 4 waterproof cover fixing screws, 1 user manual, 1 certificate of conformity

Machine Features:

Each machine is personally calibrated by experienced technicians before leaving the factory, ensuring every unit meets quality standards.

Specific Usage:

The distance to the cut seam is16.5, the distance of the elastic line expansion.

Expansion is12mm internal expansion.

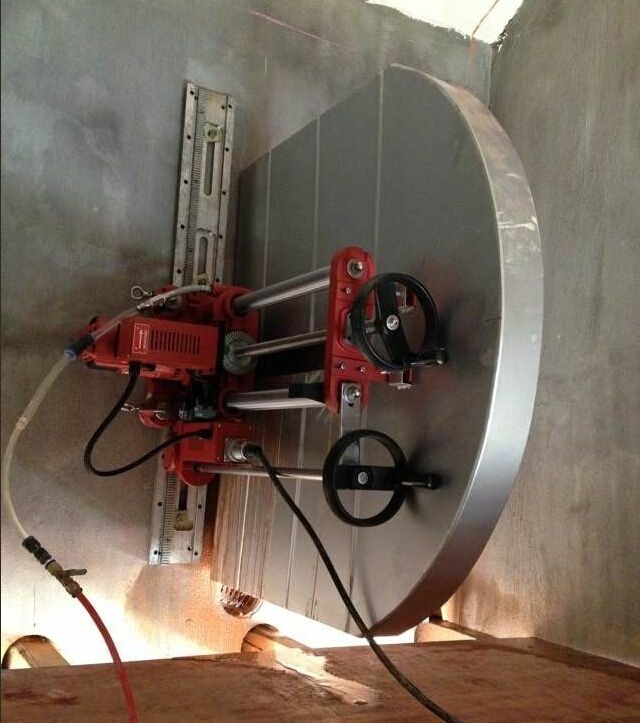

Cutting Techniques:

It's not just a back-and-forth motion with a single cut; instead, the blade goes in, retracts, moves along the track a bit, and then makes another cut. It's an in-and-out process, and it's quite fast.

Machines cannot cut edges against the wall; generally, there needs to be some space.3 to 5 cm, for instance, to open a door, the bottom edge needs to be 5 cm from the ground. [To move to the side, please use the side plate.]

Avoid cutting rebar if possible.
