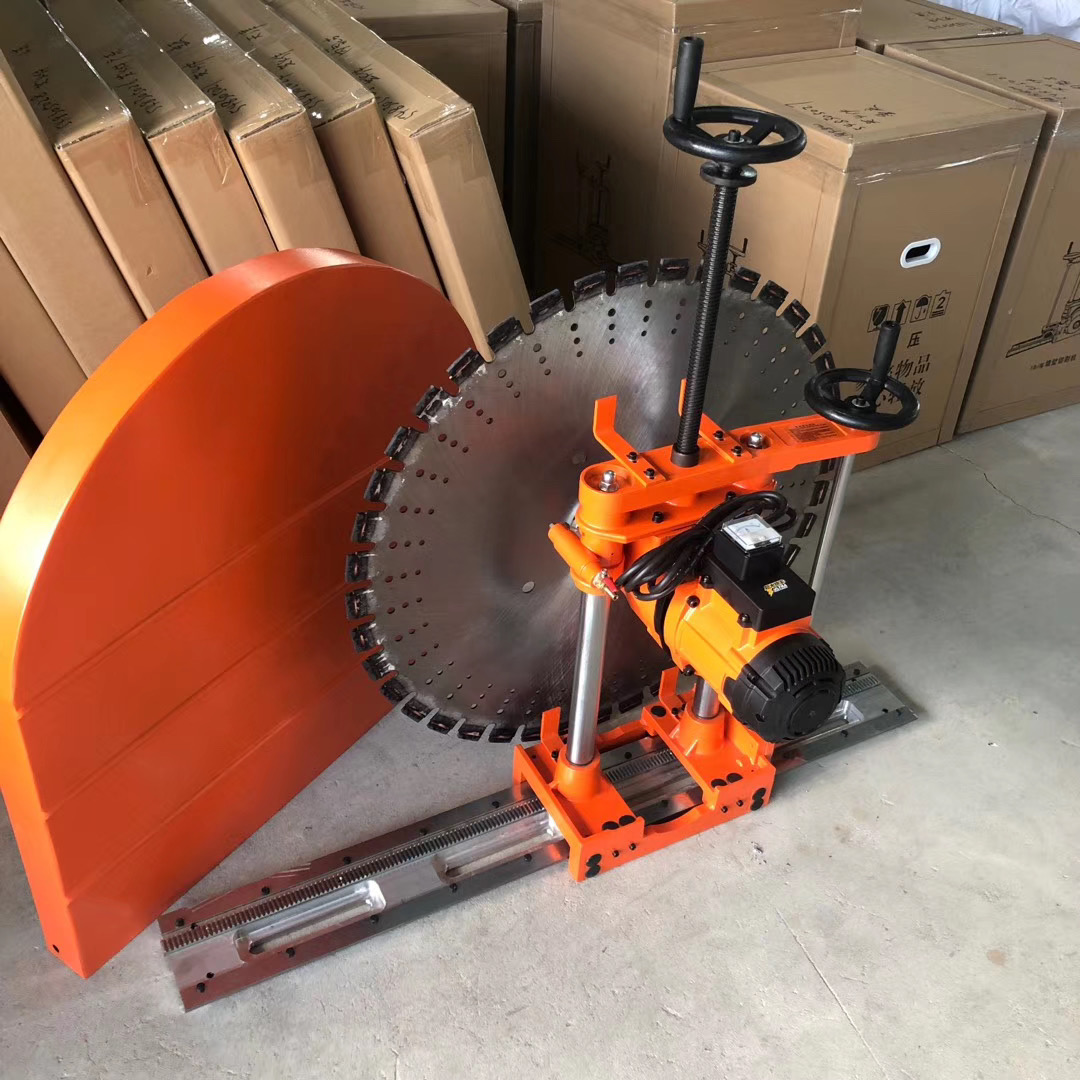

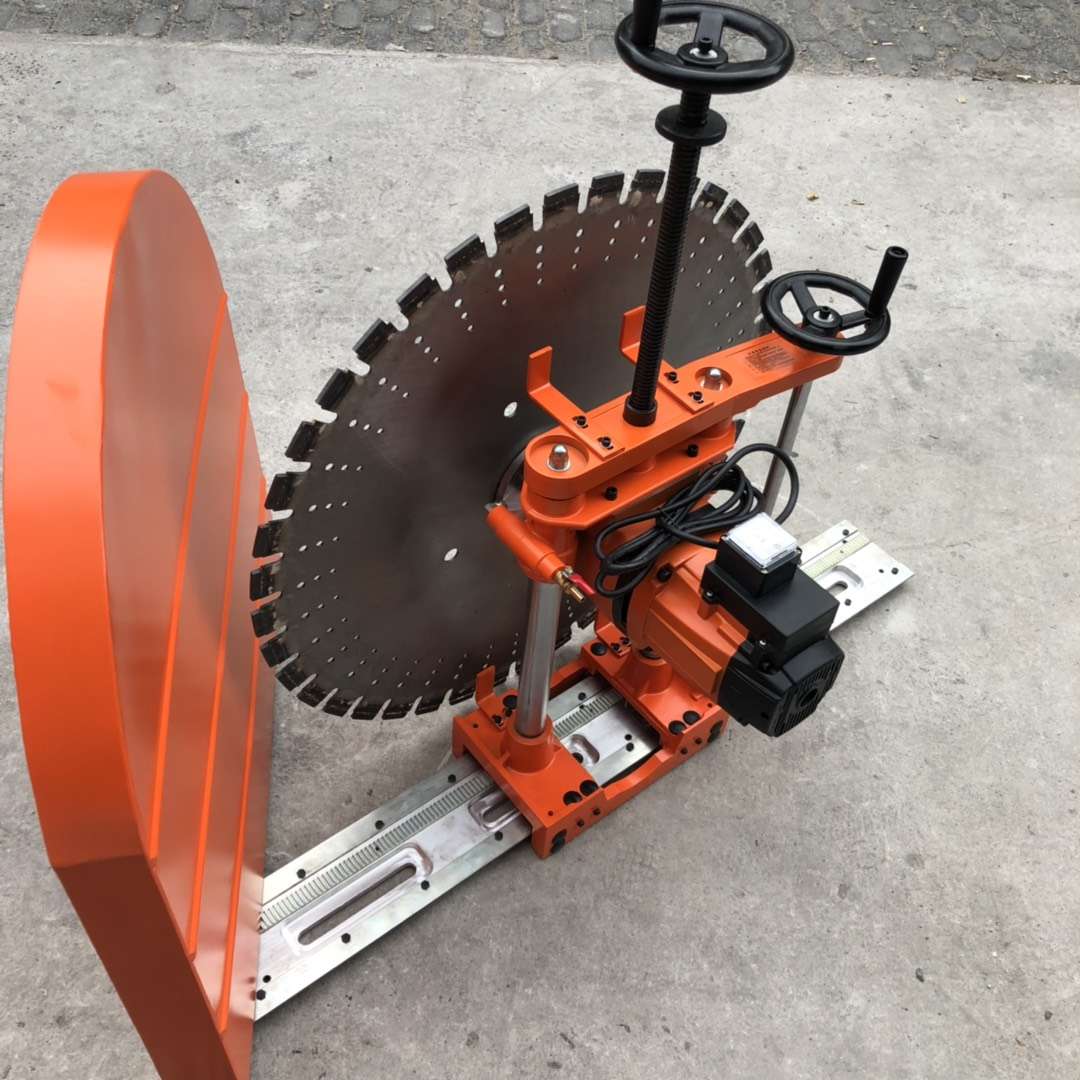

Wall Cutting Machine AY-800, Concrete Wall Cutting Machine

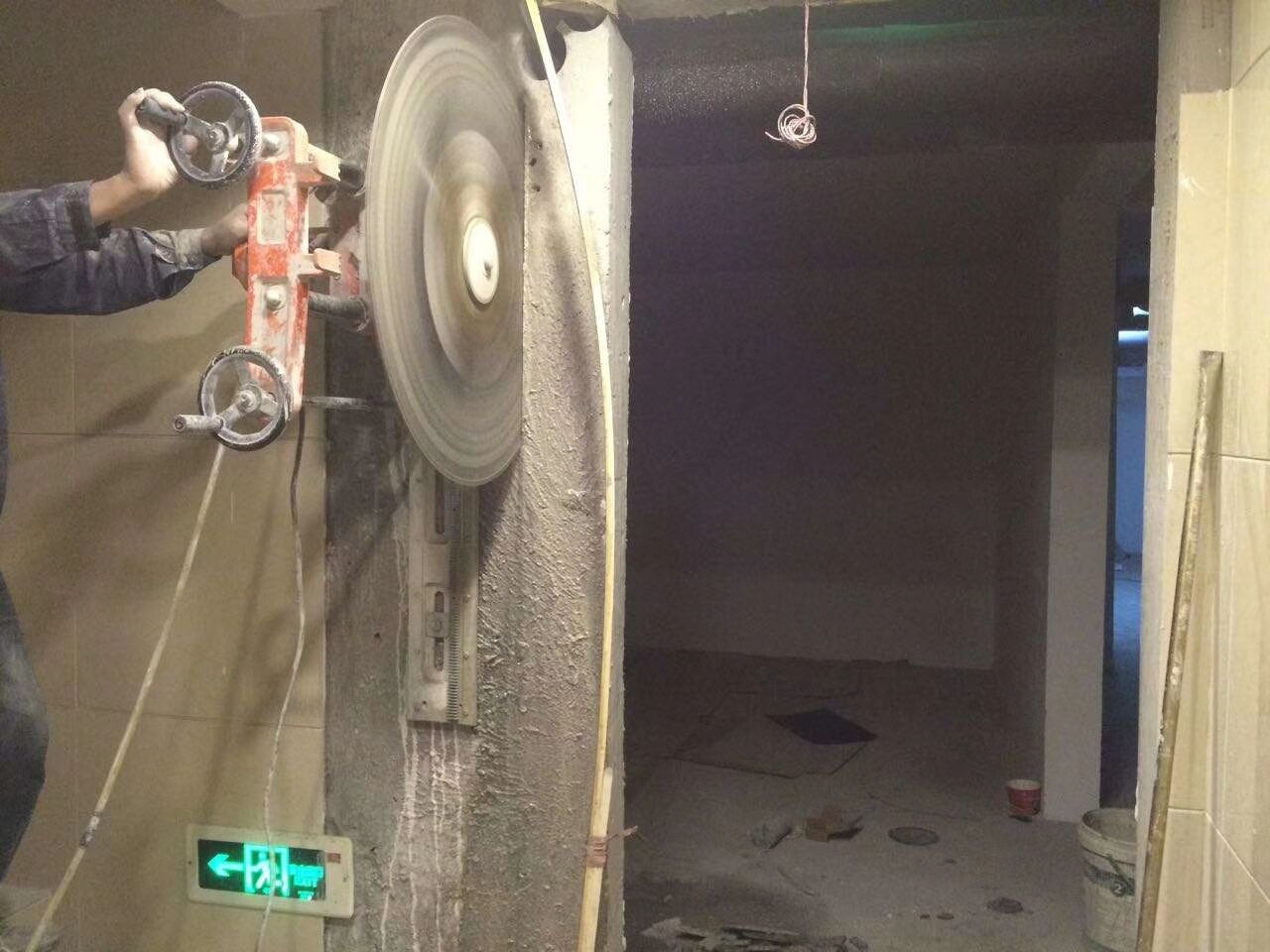

 Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting through large sections of walls for door openings, windows, elevator shafts, etc. They feature manual feed and manual cutting. The structure is non-destructive and forms in one go, not only avoiding structural damage from traditional hammering construction methods but also saving time and resources spent on drilling circular holes. Additionally, it significantly reduces the time and costs for adjustments.

Section II: Product Specifications:

Model           800       1000      1200

Frequency/HZ        50-60      50-60     50-60

Saw blade/mm        800        1000      1200

Voltage/V         220         220       220

Power/W         6200       6580      6980

Deep cut capability/mm  320       420       520

III. Product Features:

Suitable for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials.

In the construction and renovation industry, the majority still use the method of knocking down walls to create doors.Opening windows is a highly problematic approach; it compromises the integrity of the room's wall structure, and if done poorly, the walls may crack. Moreover, the doors or windows created this way tend to be rough and uneven, affecting the aesthetics of the renovation. Our wall cutting machines eliminate these issues. With the ever-increasing quality of urban construction, walls made of concrete and reinforced steel are almost impossible to work on with ordinary drilling or hammering. Our products effectively address these problems, delivering satisfactory results to users and also bringing economic benefits to you.
