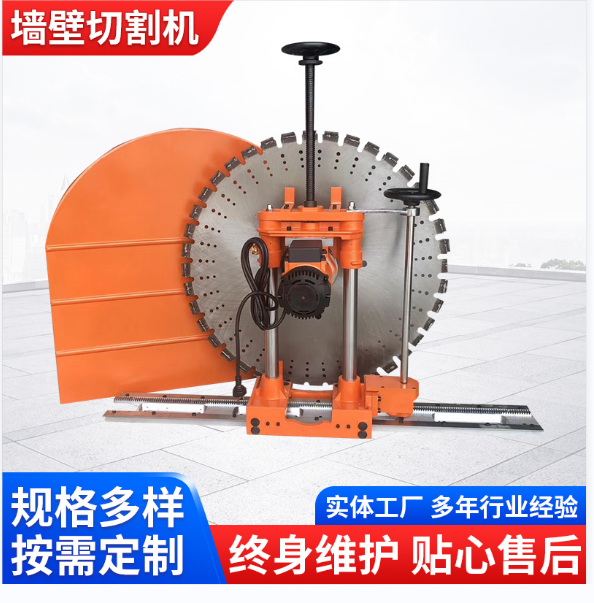

Reinforced Concrete Cutting Machine, Small Electric Wall Cutting Machine, Window and Door Wall Cutting Machine

Parameters:Voltage:380V  Frequency:50-60Hz Power:4HP

      Using Saw Blades:12〞-32〞，300mm-1200mm

      Cutting Depth:520MM

Suitable for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials.

  Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door and window openings or elevator shafts. They are structurally non-destructive and form in one go, thus not only avoiding damage to the building structure caused by traditional hammering work but also saving time, materials, and labor in drilling circular排孔, as well as significantly reducing downtime and costs.

Wall cutting machines are mainly used for building renovations, reinforcement, design changes, etc., capable of cutting large areas of walls such as door openings, windows, and elevator shafts. Manual feed and cutting. The structure remains damage-free, forming in one go. This not only avoids the damage to the building structure caused by traditional hammering work but also saves time, materials, and labor compared to drilling circular排孔 methods, as well as significant time and cost for adjustments.

Key Technical Parameters:

Saw blades:800mm Cutting Depth: 32cm

Power Voltage:220V, Power: 6200W

Dimensions:100*100*80cm

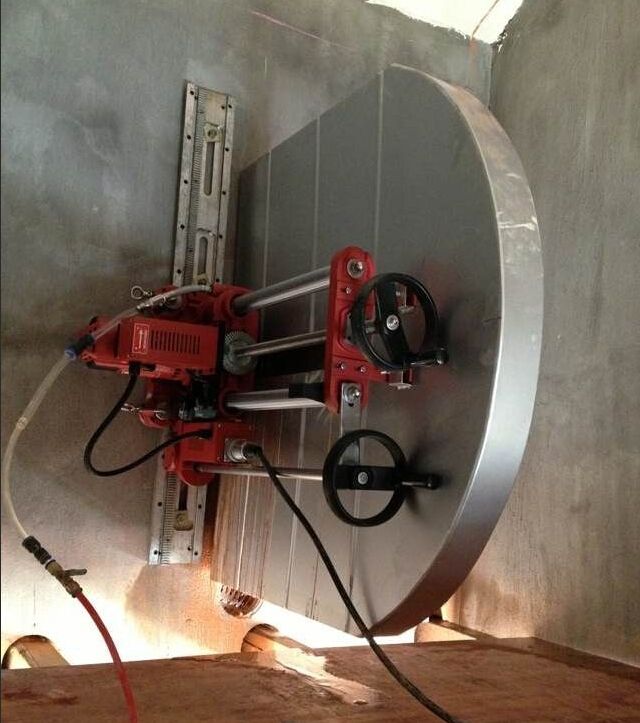

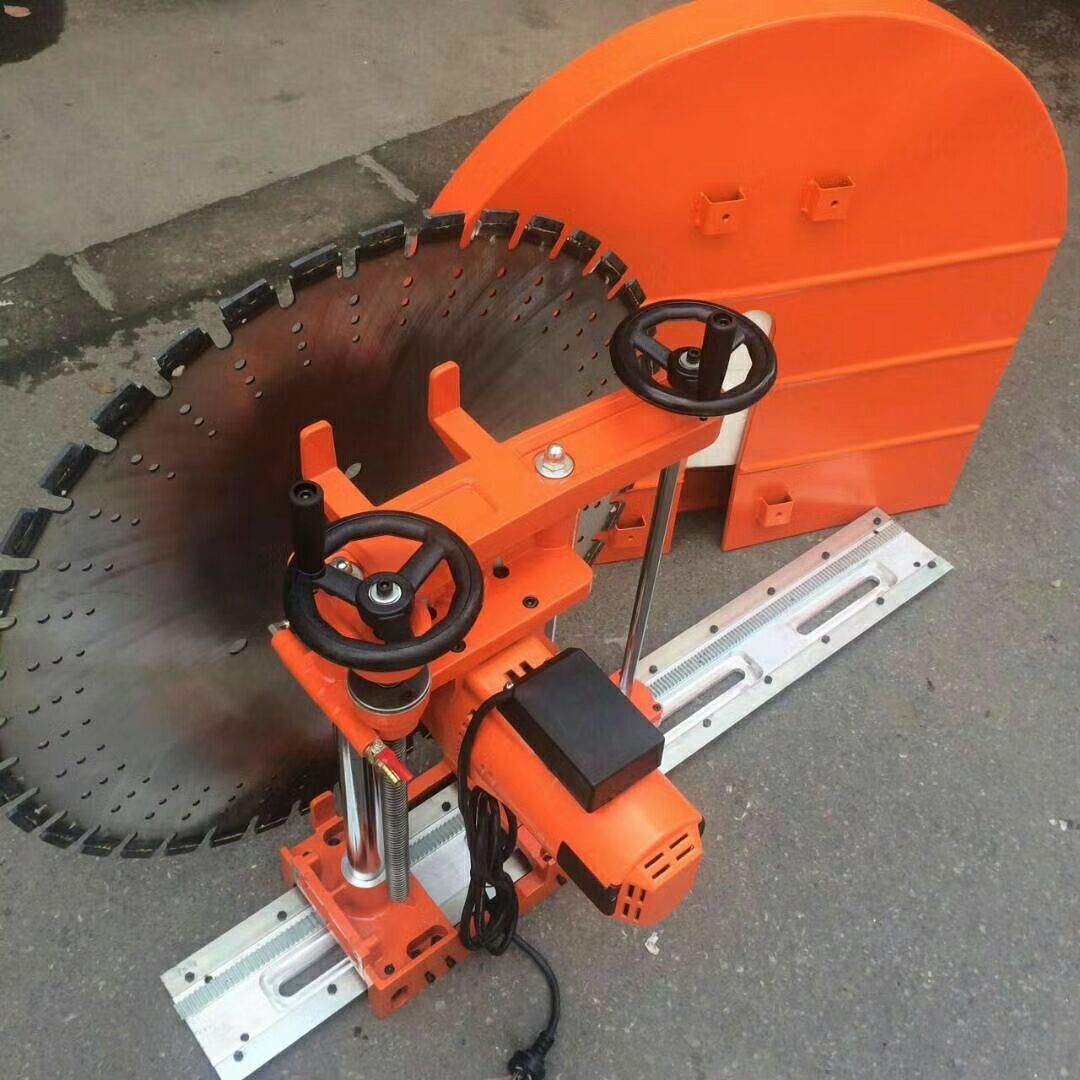

Product Real Photos Display

Wall saw operation instructions:

Secure the track with expansion bolts, place the machine on the track (the track has teeth, the machine has gears to prevent slipping, and can only be moved by handwheels), install the blade and the guard, then operate with both handwheels after water and power are connected. The middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machines feature heavy-duty dual insulation high-power motors and reducers, offering low failure rates, long service life, and cost savings on maintenance.      Mechanical clutch protector, effectively preventing damage to the machine and personnel due to improper operation. Equipped with manual or automatic cutting control, it not only improves construction quality but also accelerates work speed, while significantly reducing the labor intensity for the operator.

Machine Installation

First, install the track, then place the machine on the track.To ensure horizontal wall cutting, the correct installation of the track is: the motor should face up and the blade should face down. During cutting, the rotation direction of the blade should be as opposite to the motor's running direction as possible, which not only reduces the cutting time but also improves the cutting efficiency.
