Cement Wall Cutting Machine, Window and Door Opening Grooving Machine, Wall Saws

Suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials.

In the construction and renovation industry, most still use the method of knocking down walls to create doors./Opening windows is highly problematic; first, it ruins the integrity of the room's walls, potentially causing cracks; second, the resulting doors or windows are rough and uneven, affecting the aesthetic of the decoration. Our wall cutting machine eliminates these issues. Moreover, with the increasing quality of construction in cities, high-grade cement and reinforced walls make conventional drilling and hammering nearly impossible for construction.

The wall cutting machine is primarily used for cutting or grooving reinforced concrete walls, brick walls, or stone materials, and is suitable for building or old building renovations, reinforcement, and design changes. It can cut large areas of walls for door openings, windows, or elevator shafts. The structure is damage-free and forms in one go, which not only avoids the damage to the building structure caused by traditional hammering construction but also greatly saves time, materials, labor, and costs.

    How to operate a wall cutting machine?

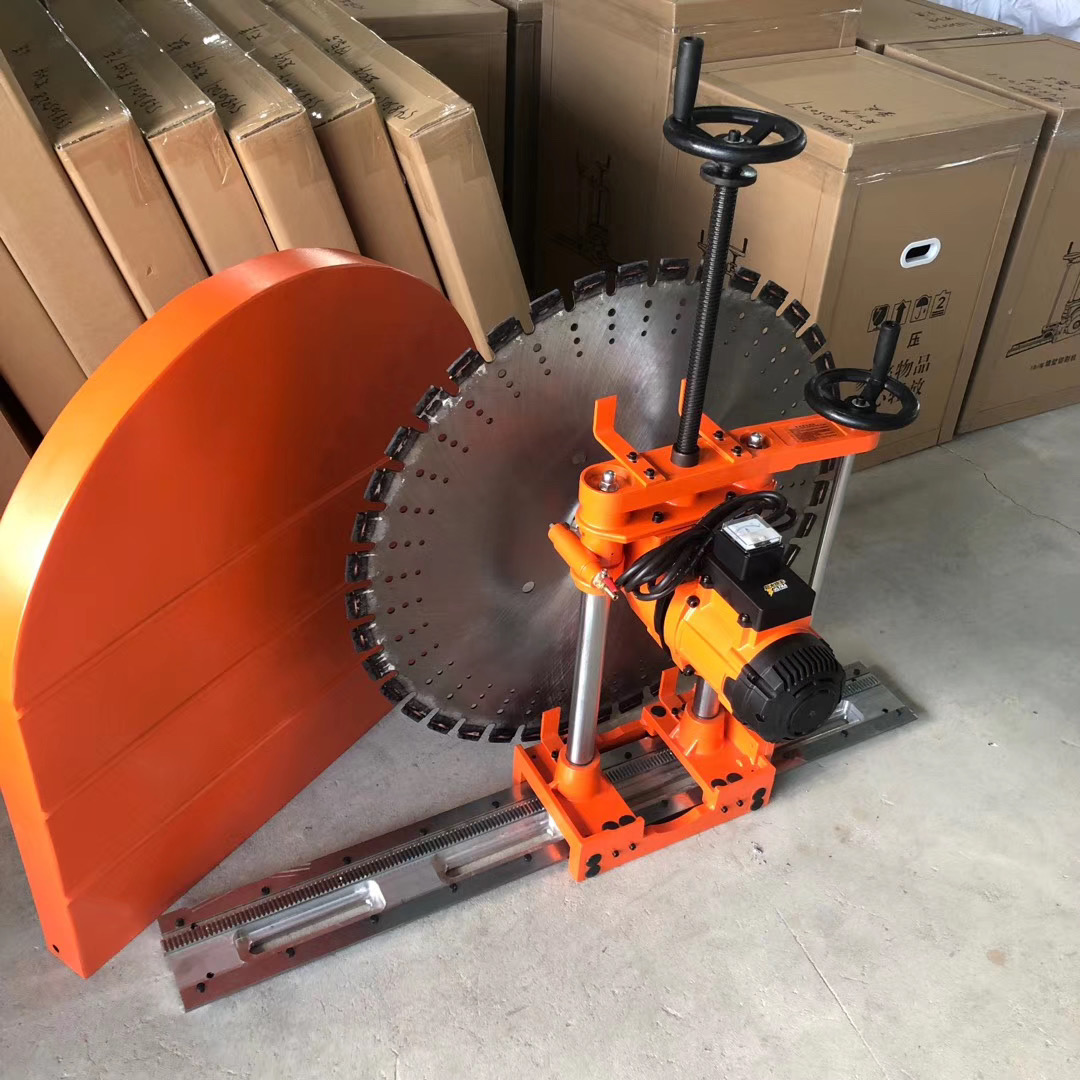

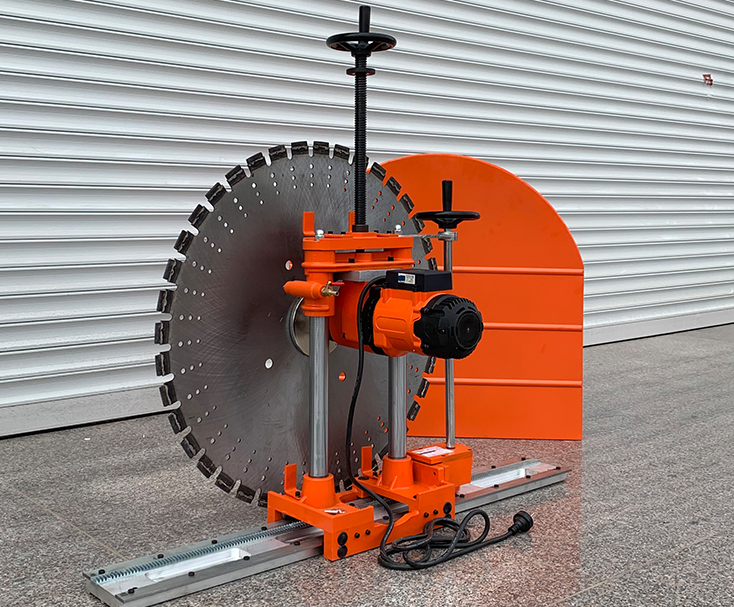

This equipment is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, the machine has gears that won't slide off, and movement is controlled only by handwheels), install the blade and protective cover, and then operate the two handwheels. The middle handwheel controls the up and down movement of the blade, while the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machines feature heavy-duty dual-insulated high-power motors and reducers, with low failure rates and long service lives, saving on maintenance costs. A special mechanical clutch protection device effectively prevents damage to the machine and personnel due to misuse. Equipped with manual or automatic cutting control, they not only enhance construction quality but also accelerate work speed, significantly reducing the labor intensity for operators.
