Wall saws, wholesale 800-1200mm wall cutting machines, reinforced concrete wall cutting machines

Suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials.

In the construction and renovation industry, most still use the method of knocking down walls to create doors./Opening windows is highly disadvantageous; first, it compromises the integrity of the room's wall structure, which can lead to cracks if not done properly; second, the resulting doors or windows are rough and uneven, affecting the aesthetics of the decoration. Our wall cutting machines eliminate these issues. Moreover, with the increasing quality of construction in urban areas, high-grade cement and reinforced concrete walls make traditional drilling and hammering nearly impossible for construction work.

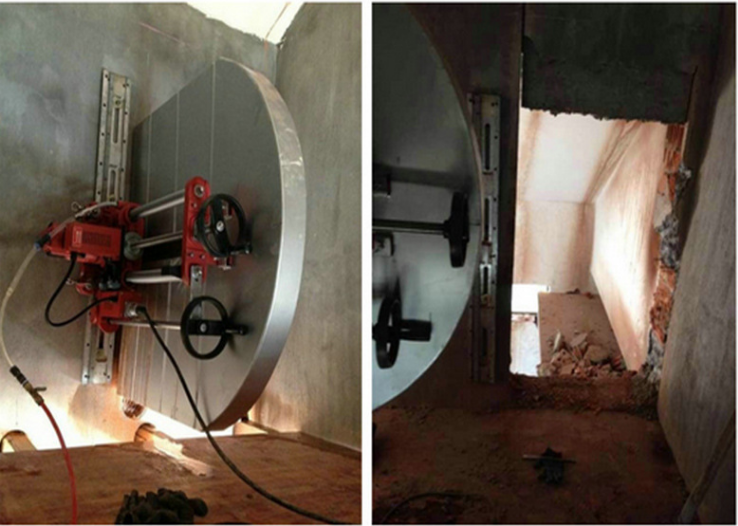

Wall cutting machines are primarily used for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials, and for renovations, reinforcement, and design changes of buildings or old structures. They can cut through large areas of walls, such as door openings, windows, or elevator shafts. They offer non-destructive cutting, forming in one go, which not only avoids damage to the building structure from traditional hammering construction but also significantly saves time, materials, labor, and costs.

    How to operate a wall saw?

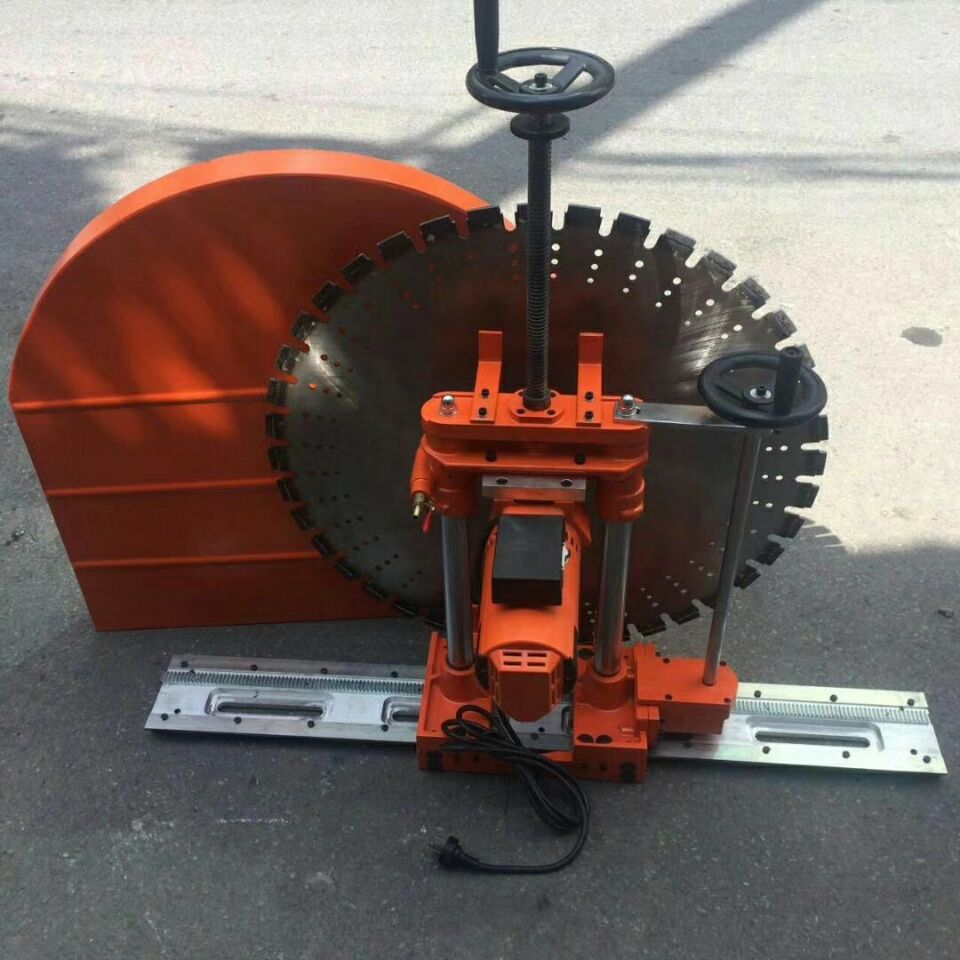

This equipment is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, and the machine has gears that prevent it from slipping; it can only be moved by handwheels), install the blade and the protective cover, then operate the two handwheels. The middle handwheel controls the up and down movement of the blade, while the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machine features a heavy-duty dual-insulated high-power motor and reducer, with a low failure rate and long service life, saving on maintenance costs. The special mechanical clutch protection device effectively prevents damage to the machine and personnel due to improper operation. It is equipped with manual or automatic cutting control mechanisms, which not only improve construction quality but also accelerate work speed, significantly reducing the labor intensity for operators.
