Automatic Wall Cutting Machine | Wall Cutting Machine | Renovation Wall Cutting Machine
The wall cutting machine is mainly used for building or old building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door and window openings, and elevator shafts. It features manual feed and cutting. Its structure is non-destructive and forms in one go, which not only avoids the damage to building structures caused by traditional hammering work, but also saves considerable time and costs in drilling circular排孔 methods.
Product Specifications:
Model 800 1000 1200
Frequency/HZ 50-60 50-60 50-60
Saw blade/mm 800 1000 1200
Voltage/V 220 220 220
Power/W 6680 7500 7680
Cutting Depth/mm 320 420 520
Product Features:
Suitable for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials.
In the construction and renovation industry, the majority still use the method of knocking down walls to create doors./Opening windows, this method has significant drawbacks.ItDamaging the integrity of the room's walls can lead to cracks upon impact; additionally, doors and windows cut out can be extremely rough and uneven, affecting the aesthetics of the renovation. Our wall cutting machine avoids these issues. With the increasing quality of construction in urban areas, walls made of concrete and reinforced steel are nearly impossible to drill or hammer through conventionally. Our product effectively addresses these challenges, delivering satisfactory results for users and economic benefits for you.
Wall cutting machines are primarily used for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials, among others, for purposes such as building or old building renovation, reinforcement, and design changes. They can handle large-scale wall cutting for door openings, windows, or elevator shafts. Structure damage-free and one-time molding, they not only avoid the damage to building structures caused by traditional hammering construction methods but also greatly save time, materials, labor, and costs.
How to operate a wall saw?

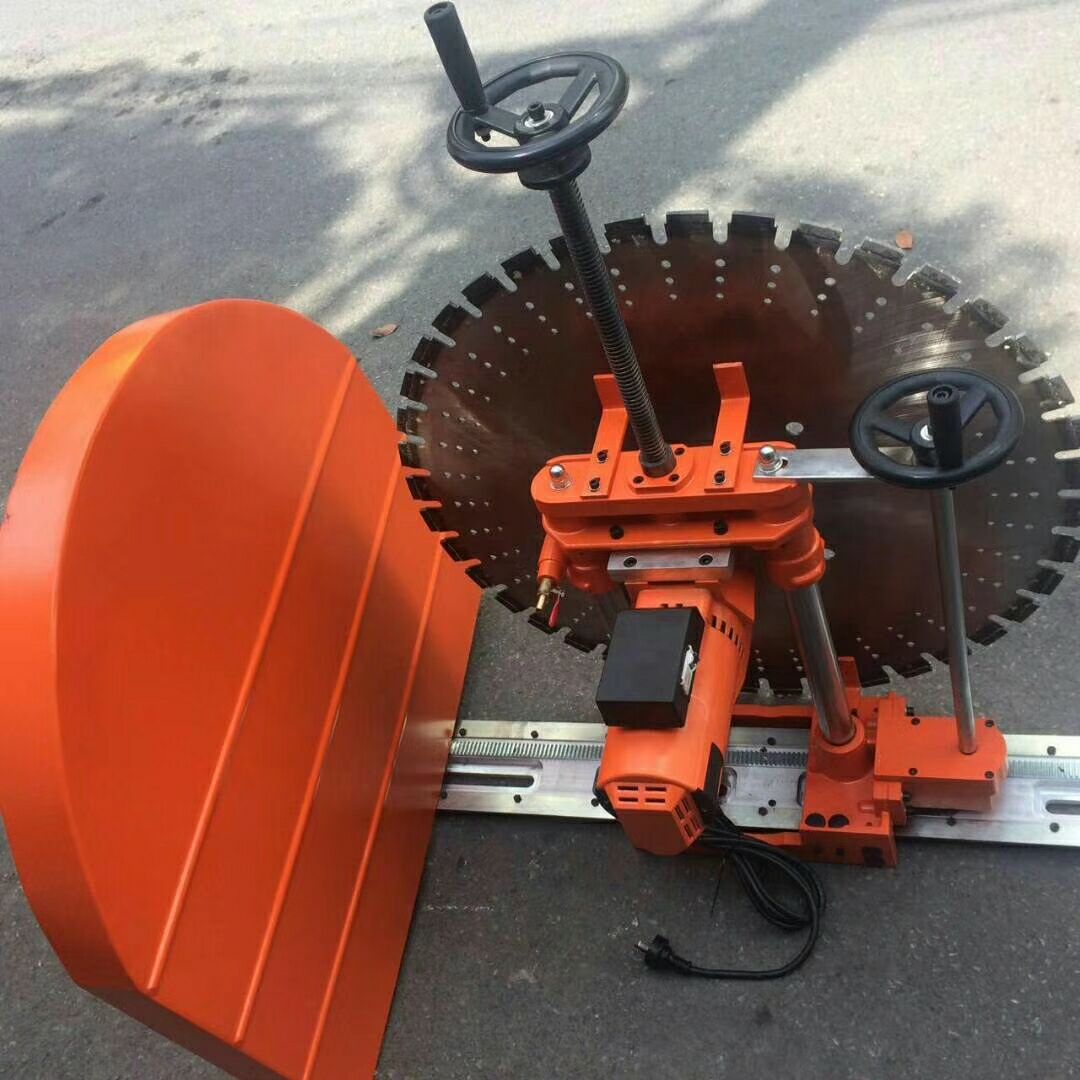

This equipment is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, and the machine has gears to prevent sliding; movement is only possible with the handwheels), install the blade and protective cover, and then operate the two handwheels. The middle handwheel controls the up and down movement of the blade, while the right-hand handwheel controls the machine's movement along the track.
Our wall cutting machines are equipped with heavy-duty double-insulated high-power motors and reducers, featuring low failure rates, long service life, and cost savings on maintenance. The mechanical clutch protection device effectively prevents damage to the machine and personnel due to incorrect operation. They come with manual or automatic cutting control mechanisms, which not only improve construction quality but also accelerate work speed while significantly reducing the labor intensity for operators.
