Wall Cutting Machine Manufacturer, Model 1000, Electric Wall Cutting Machine, Wall Saws

Product Features:

Suitable for cutting or grooving reinforced concrete walls, brick walls, or stone materials.

In the construction and renovation industry, most still use the method of knocking down walls to create doors./Opening windows is a highly problematic method; first, it damages the overall structure of the room's walls, which can lead to cracks if not done properly; second, the doors or windows created are rough and uneven, affecting the aesthetics of the decoration. Our wall cutting machine eliminates these issues. Moreover, with the increasing quality of construction in cities, walls made of high-grade cement and reinforced steel are nearly impossible to drill or hammer into for construction purposes.

Wall cutting machines are primarily used for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials, for renovations, strengthening, or design changes of buildings or old structures. They can handle large-scale wall cuts, such as door openings, windows, or elevator shafts. These machines offer non-destructive cutting, forming in one go, which not only avoids structural damage caused by traditional hammering construction methods but also significantly saves time, materials, labor, and costs.

    How to operate a wall cutting machine?

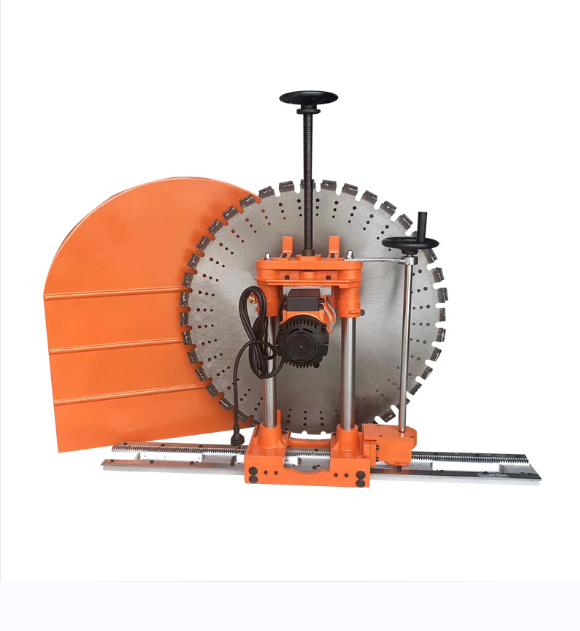

This equipment is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, and the machine has gears that won't slip off, allowing movement only via the handwheels), install the saw blade and protective cover, then operate the two handwheels. The middle handwheel controls the up and down movement of the saw blade, while the right-hand handwheel controls the machine's movement along the track.

Our wall cutting machine features a heavy-duty dual-insulated high-power motor and reducer, with low failure rate and long service life, saving on maintenance costs. The special mechanical clutch protection device effectively prevents damage to the machine and personnel due to improper operation. It is equipped with manual or automatic cutting control mechanisms, which not only enhance construction quality but also accelerate work speed, while significantly reducing the operator's labor intensity.
