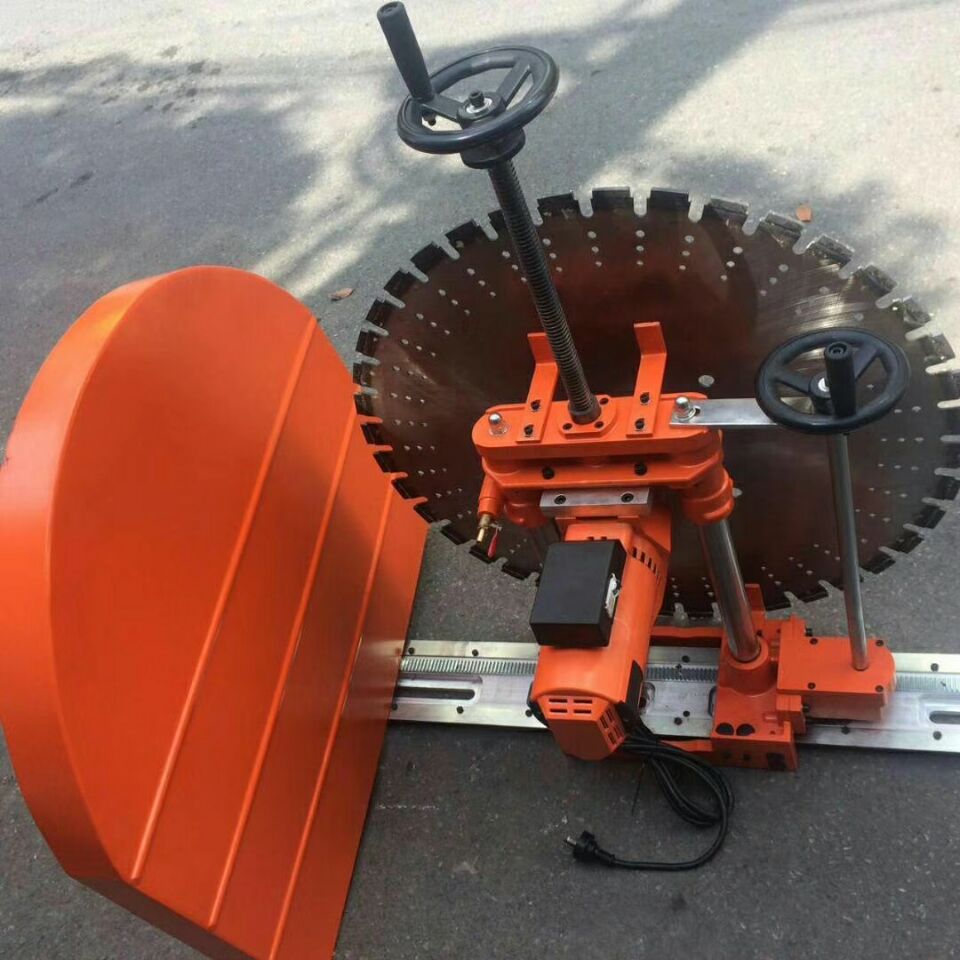

Concrete Reinforcement Cutting Wall Machine, AY-800 Wall Cutting Machine - Long-term Supply

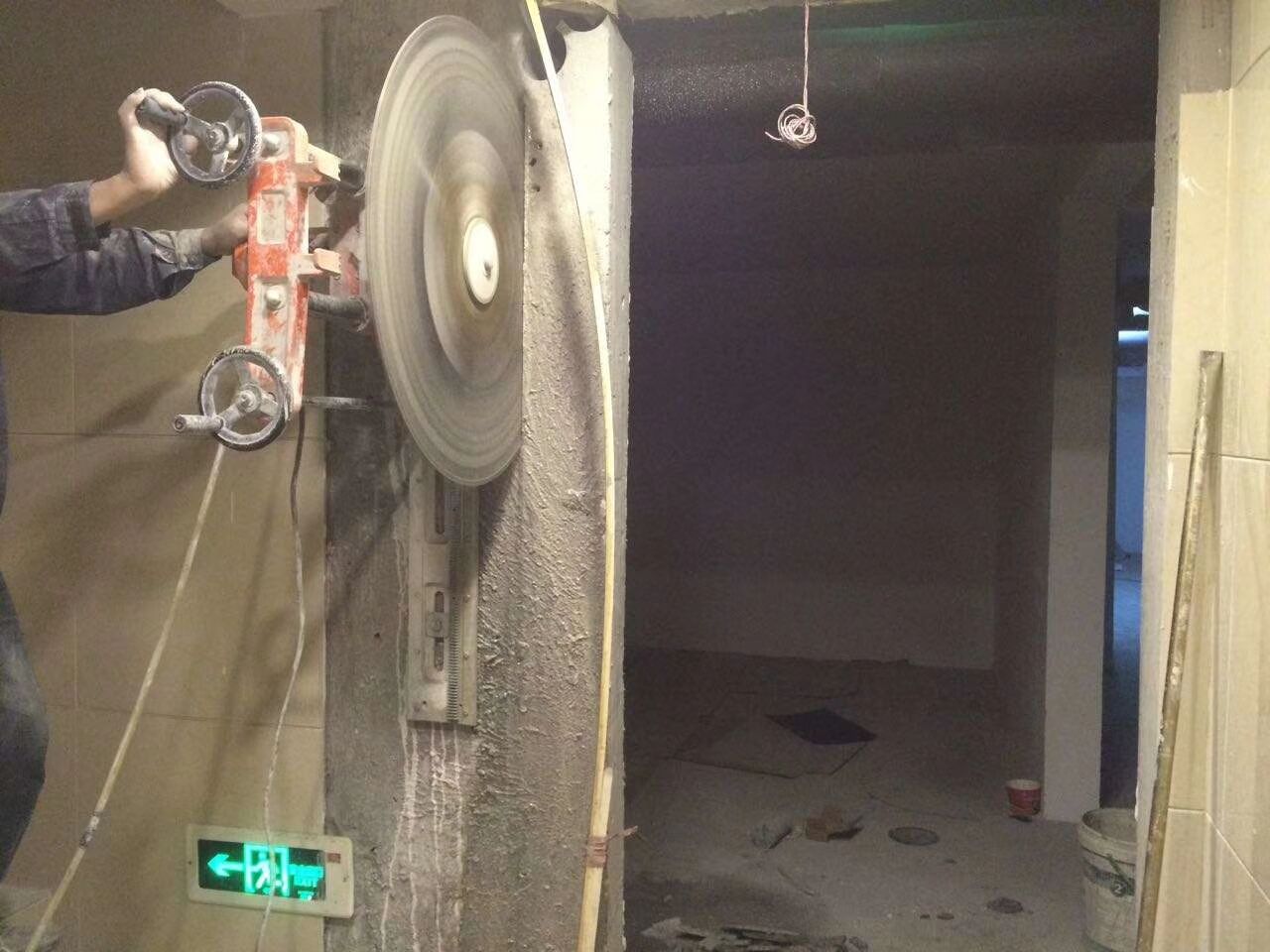

Wall cutting machine/The wall cutting machine is primarily used for building or old building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door and window openings, and elevator shafts. It features manual feed and cutting. The structure is damage-free and forms in one go, not only avoiding the structural damage to buildings caused by traditional hammering work but also saving considerable time and costs on drilling circular排孔 and labor.

Concrete reinforcing bar cutting wall machine is suitable for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials.

Concrete Reinforcement Cutting Wall Machine Repair and Inspection

Urgent: Do not plug in the power before inspecting the machine.

1Inspect saw blades

Reduce cutting efficiency with worn-out saw blades and avoid motor overload; timely replace the saw blade arrow.

2Inspect the wheel

Inspect the base underneath16Wheel only, yes, jammed or failed.,The gap between the pulley and track must not exceed0.2mmIf not, you can loosen the pulley fixing nut and adjust the corresponding hexagon set screws on both sides of the base.

3Regular inspections

Monthly inspection: Ensure the parallelism between the blade's direction of travel and the track, and the distance between the leading edge of the blade and the track must not exceed1 mm,Otherwise, when cutting, the concrete may jam the blade, reducing cutting efficiency..If not parallel, use6mmLoosen the hexagon socket wrench on the center seat.4Set screw for dual-speed box.Adjust the parallelism of the tuning cone blade.
