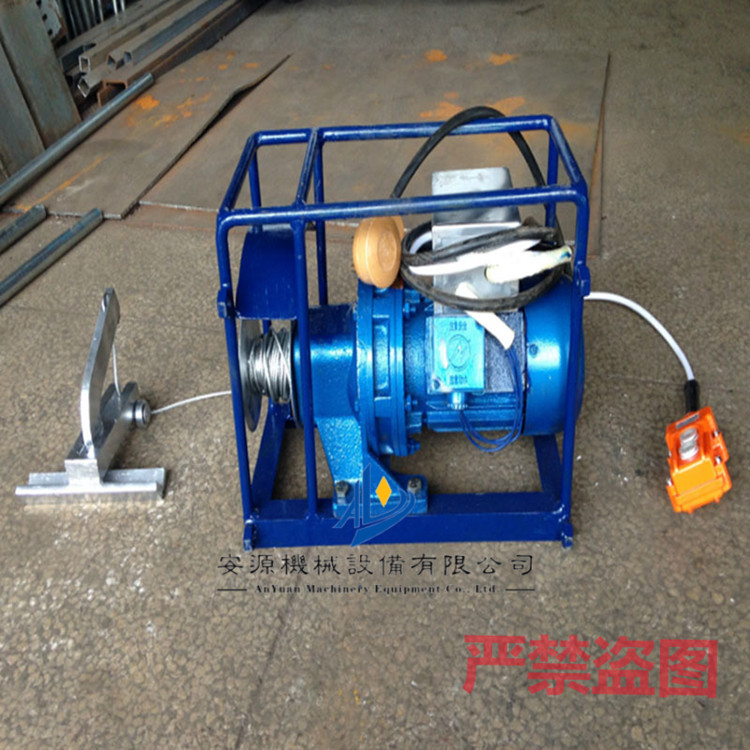

Layered Stripper Machine_Blast-Proof Electric Stripper Machine AY-BTJ Wire Rope Core Stripper

Motor Power: 0.75 kW
Line Speed: 0.3 m/s
3. Strip Width: 200mm (Conveyor Belt & Steel Wire Rope Conveyor Belt) 400mm (Standard Belt)
Usage Instructions:
1. Align the conveyor belt according to standard procedures; the corresponding joint should be cut open, separating a layer.
2. Place the conveyor belt stripping machine in the appropriate position and secure it with steel wire ropes.
3. Power on.
4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离部分 at the appropriate location.
After removing the first layer, repeat the above steps to peel off the second, third layers, etc.
Cautionary Notes:
1. Power connection must be performed by a qualified electrician.
2. Secure the peeler in use to prevent it from sliding.
Do not exceed the specified width during stripping.

1Electrical and Mechanical Power: 3KW

Line speed: 0.3 m/s

3. Strip Width: 200mm (Conveyor Belt & Wire Rope Conveyor Belt), 400mm (Standard Belt)

BPJ-3Type General Conveyor Belt Peeling Machine Main Technical Parameters and Advantages:

Wire Strip Baling Machine Sorry, there is no Chinese content provided to translate. Please provide the text you wish to have translated into American English.Features

Large stripping area and fast speed, significantly reducing labor intensity and the time needed for joints.

2. Lightweight for easy carrying and handling.

3. Stable Operation

Description

▲ Power connection should be performed by a qualified electrician.

▲ Secure the peeling head machine during use to prevent slippage.

▲ Do not exceed the specified width during stripping.
