Belt Peeler Machine Belt Skinning Machine Motor power options available Large stripping area

Function Overview

    剥 layering for conveyor belt joints, especially suitable for nylon and canvas belt layering. One-time剥layer width180mm. Enhance jointing work efficiency and alleviate workers' labor intensity.

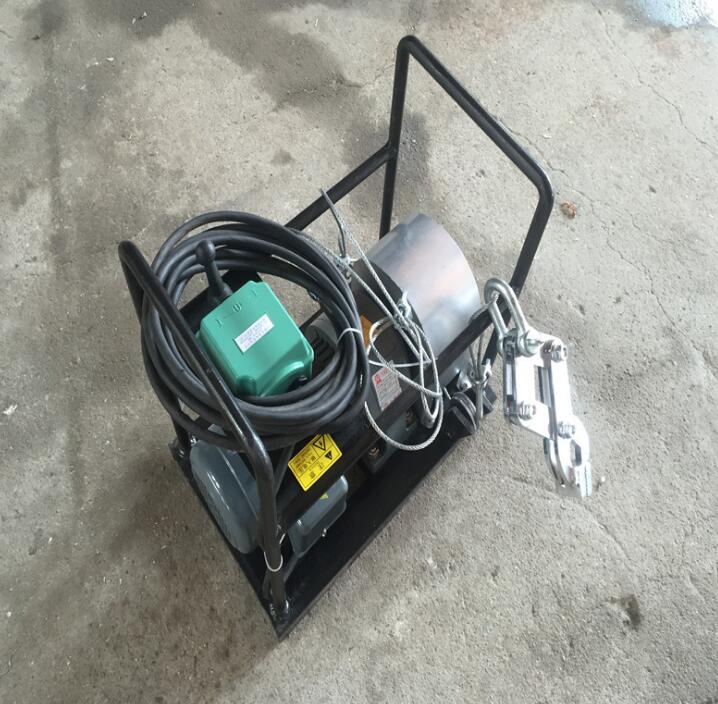

   The XLP-200 electric stripping machine boasts the advantage of using a 220V voltage, which significantly reduces the power preparation required at the joint site. Additionally, the machine only35Weighs kilograms, equipped with a carry handle for easy portability.

Two  Composition

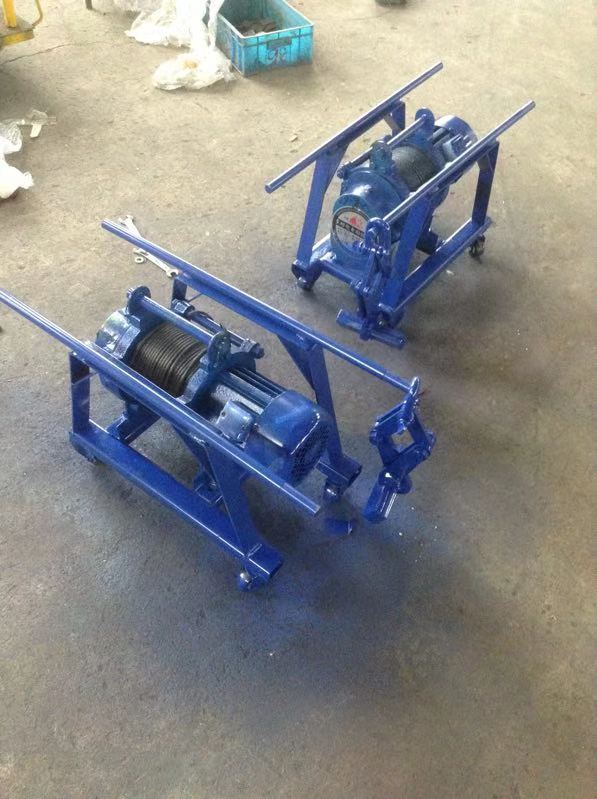

       XLP-200Type Electric Peeler Machine with handheld controller (1) Motor, 2) Reducer, 3) Rope Drum, 4) Rear Collar, 5) Robotic Arm, 6) Handle, 7) make up. The motor's output power is reduced by the meticulously designed reducer, driving the rope drum to move the robotic arm at one end in and out, completing the peeling operation.

The total length of the wire rope is 6 meters. When preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine, which must not exceed 5.5 meters.

      Before peeling with the stripping machine, it can be secured in place using a fixed sleeve on a sturdy surface. The stripping machine's pulling force can reach300Pounds, so it needs to be sufficiently sturdy. If this cannot be achieved on-site, reduce the width of each layer being peeled back to decrease the tension.

This剥layer machine can peel off one layer of Nylon belt at a time.180mm(On both sides of the broken line along the stripping edge). The width of the robot arm is160mm。
