Belt Steel Wire Rope Head剥机, Tape Peeling Machine, Layered Belt Skiving Machine - Long-term Supply

 剥 layering for conveyor belt joints, especially suitable for nylon and canvas belts. One-time剥 layer width180mm. Enhance joint efficiency and alleviate labor intensity for workers.

   The XLP-200 electric剥layer machine boasts the advantage of using a 220V voltage, which significantly reduces the electrical preparation required at the joint site. Additionally, the machine only35Weighing 1 kilogram, equipped with a carrying handle for easy portability.

Two  Composition

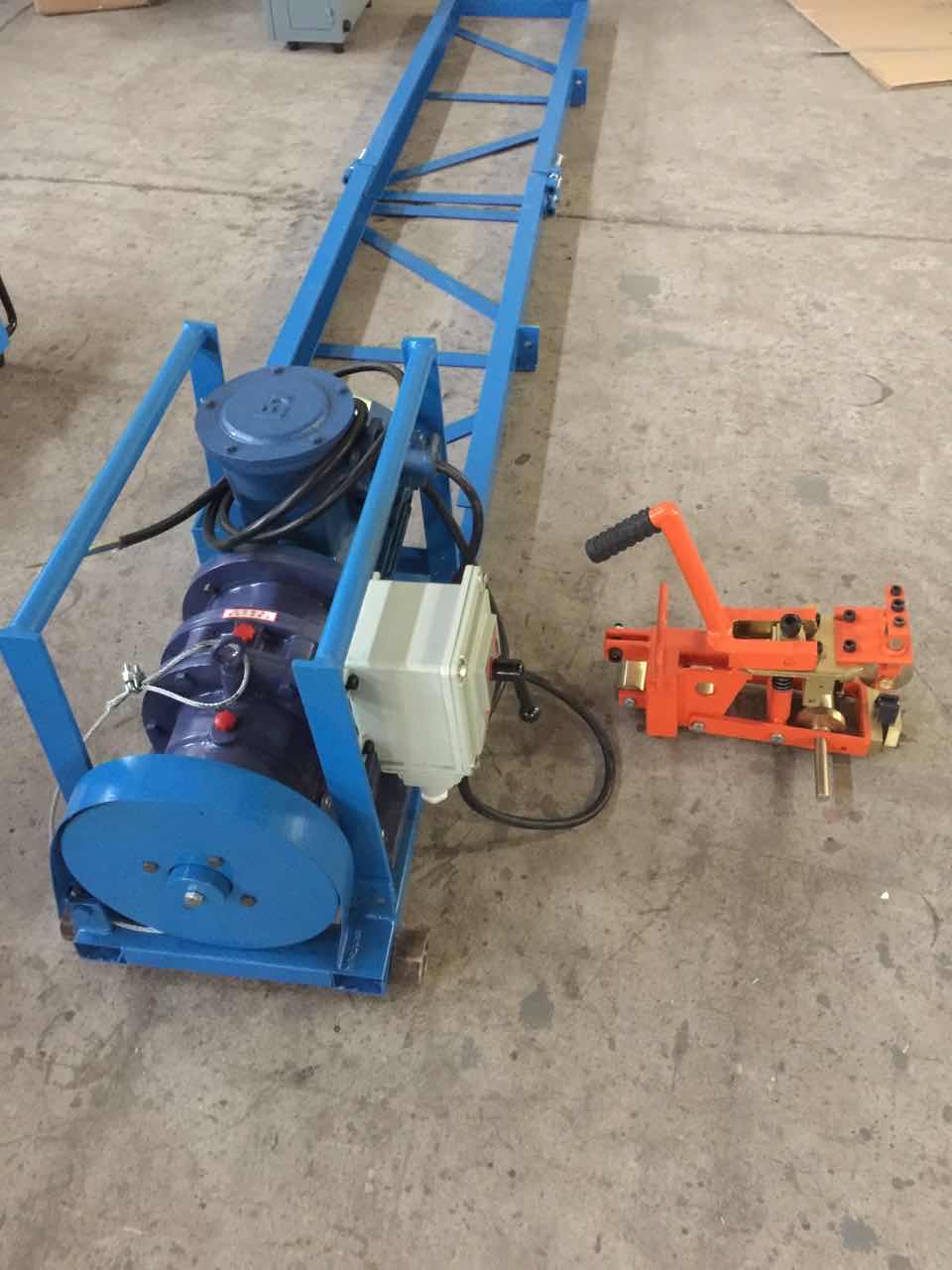

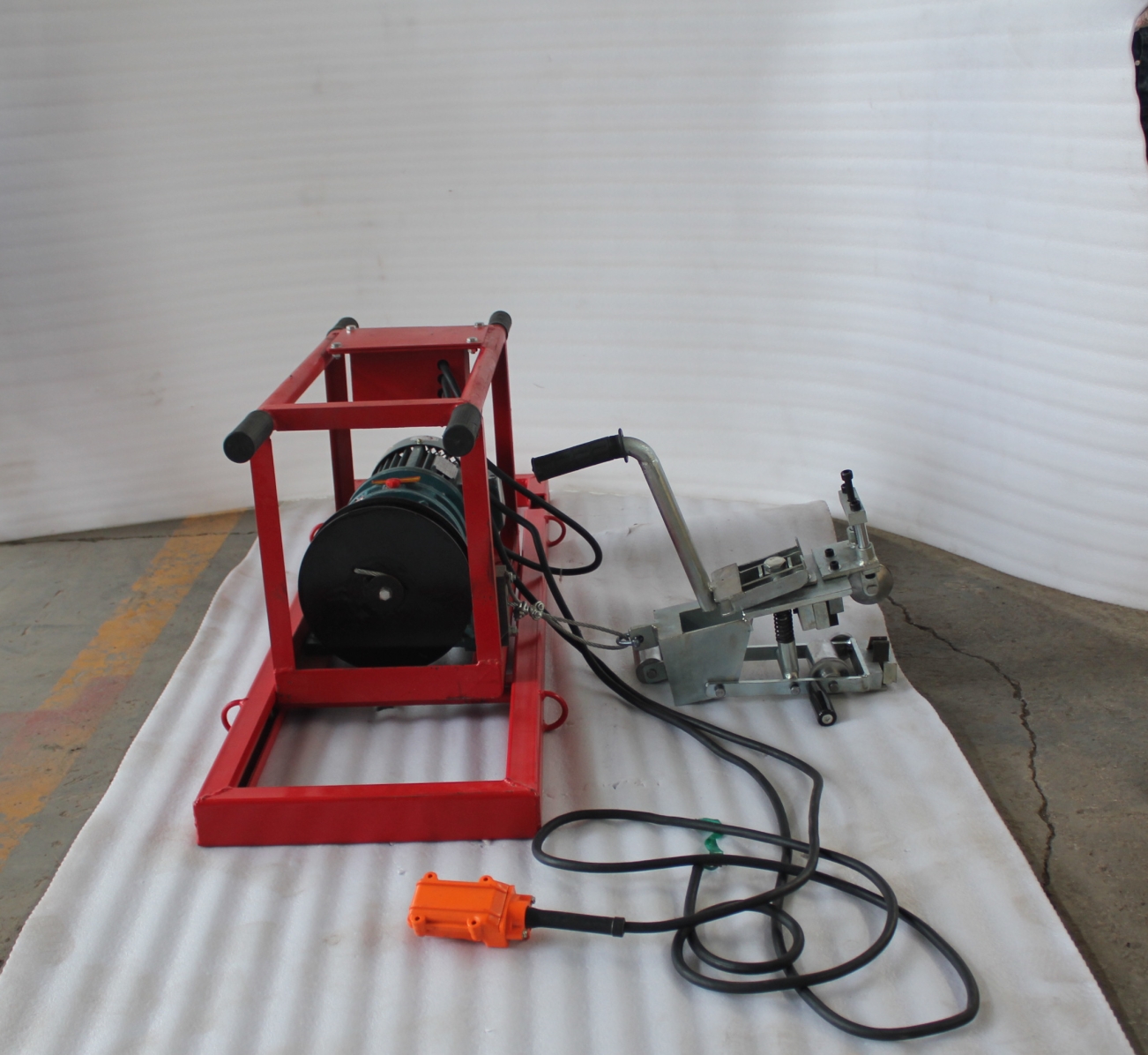

       XLP-200Type Electric Peeling Machine with handheld controller1) Motor (2), reducer (3), rope drum (4), rear fixed sleeve (5), robotic arm (6), handle (7) assembly. The motor outputs power, which is reduced through a meticulously designed reducer, driving the rope drum to move the robotic arm at one end in and out, accomplishing the stripping operation.

The total length of the wire rope is 6 meters. During the preparation for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine, which should not exceed 5.5 meters.

      Before peeling with the stripping machine, use a fixing sleeve to secure the stripping machine to a sturdy location. The stripping machine's tension can reach300Pounds, so it needs to be sufficiently sturdy. If this is not achievable on-site, reduce the width of each layer peeled to decrease the tension.

This剥layer machine can peel off the layer of the nylon belt in one go.180mmIn the case of fractures along both sides of the peeling line, the width of the mechanical arm is:160mm。
