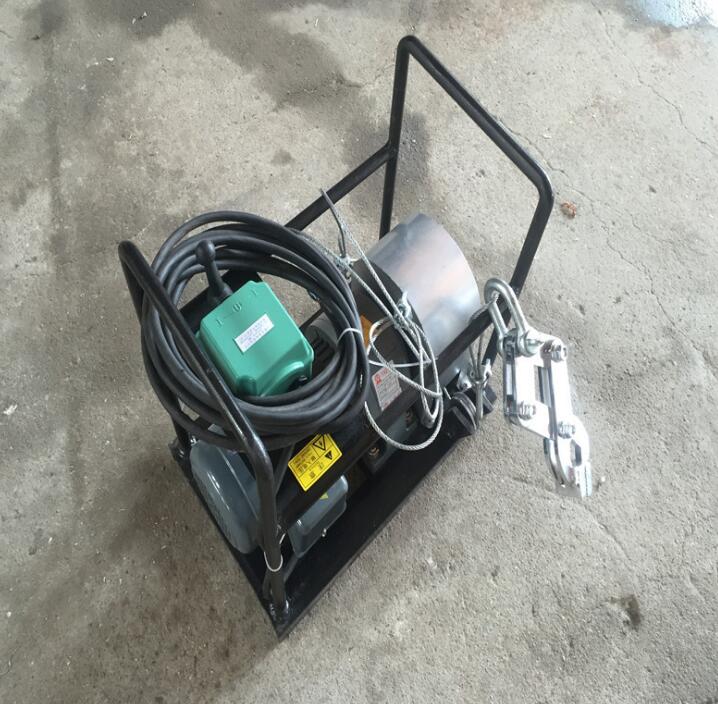

AY-BTJ Wire Rope Core Stripper, Explosion-proof Electric Peeler, Belt Stripping Machine

Product Description

Application:
Power plants, mining, steel mills, ports, petrochemical facilitiesAY-BPJ's stripping machine series is designed for securing and cleaning the adhesive layer on the leading edge of the conveyor belt during belt joint preparation, which can be used in various occasions and locations.

1. Large stripping area and fast speed significantly reduce labor intensity and minimize the time required for joints.
2. Lightweight for easy carrying and handling.
3. Stable operation.
Motor Power: 0.75 kW
2. Line Speed: 0.3 m/s
3. Strip Width: 200mm (Conveyor Belt & Steel Cord Conveyor Belt) 400mm (Standard Belt)
Instructions for Use:
1. Align the conveyor belt using standard methods, then cut and separate the corresponding joint by slicing through it.
2. Place the conveyor belt stripping machine in the appropriate position and secure it with steel wire ropes.
3. Power on.
4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离部分 at the appropriate location.
After removing the first layer, repeat the above steps to strip off the second, third layers, etc.
Cautionary Notes:
1. Power connection must be performed by a professional electrician.
2. Ensure the peeler is securely fastened during use to prevent sliding.
Do not exceed the specified width during stripping.
