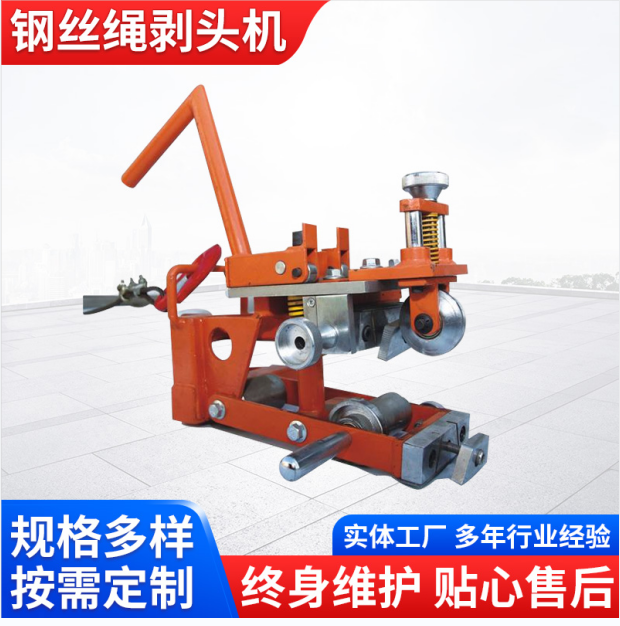

Tape jointing machine with stripping machine, AY-BTJ wire rope core tape stripping head, electric belt stripping machine

OneFeature Overview

    剥 layering material for conveyor belt joints, especially suitable for nylon and canvas belts.剥 layer width180mm. Enhance jointing efficiency and reduce labor intensity.

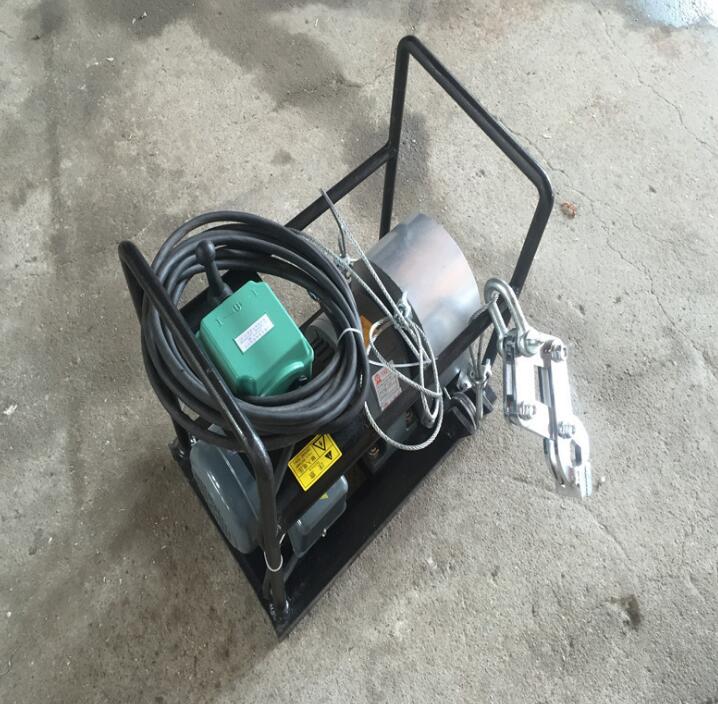

   The advantages of the XLP-200 electric stripping machine include its use of 220V voltage, which significantly reduces the electrical preparation required at the joint site. Additionally, the machine only35Weighing in at kilograms, equipped with a carry handle for easy portability.

Two  Composition

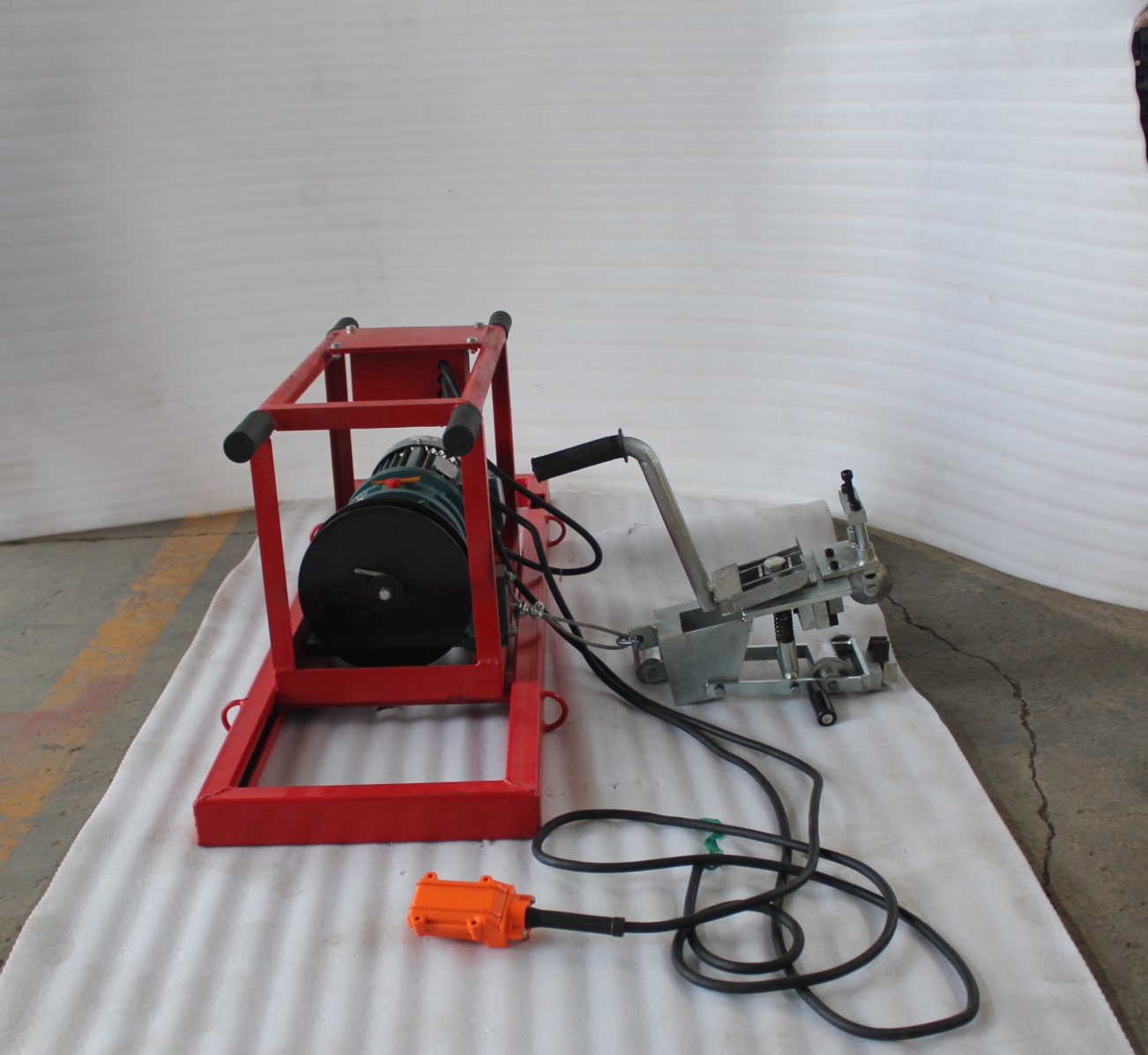

       XLP-200Type Electric Peeling Machine with handheld controller (1) Consists of an electric motor, a reducer, a rope drum, a rear sleeve, a robotic arm, a handle. The motor's output power is reduced through a meticulously designed reducer, driving the rope drum to move the robotic arm at one end in and out, completing the peeling operation.

The total length of the wire rope is 6 meters. When preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine, which should not exceed 5.5 meters.

      Before peeling with the peeler, use a fixed sleeve to secure the peeler to a sturdy location. The peeler's pulling force can reach300Pounds, so it needs to be sufficiently sturdy. If this cannot be achieved on-site, the width of each layer peeled off can be reduced to decrease the tension.

This stripping machine can strip off the layer from the nylon belt in one go.180mmIn the case of fractures along both sides of the stripping line. The width of the robotic arm is160mm。
