Stratified Peeling Machine_XLP-100 Electric Peeling Layer Machine_Mining Conveyor Belt Peeling Machine
The XLP-100 electric stripping machine's advantages include its use of 220V voltage, which reduces electrical preparation at the joint site. Additionally, the machine weighs only 21 kg and is equipped with a carrying handle for easy portability.
Two, Composition:

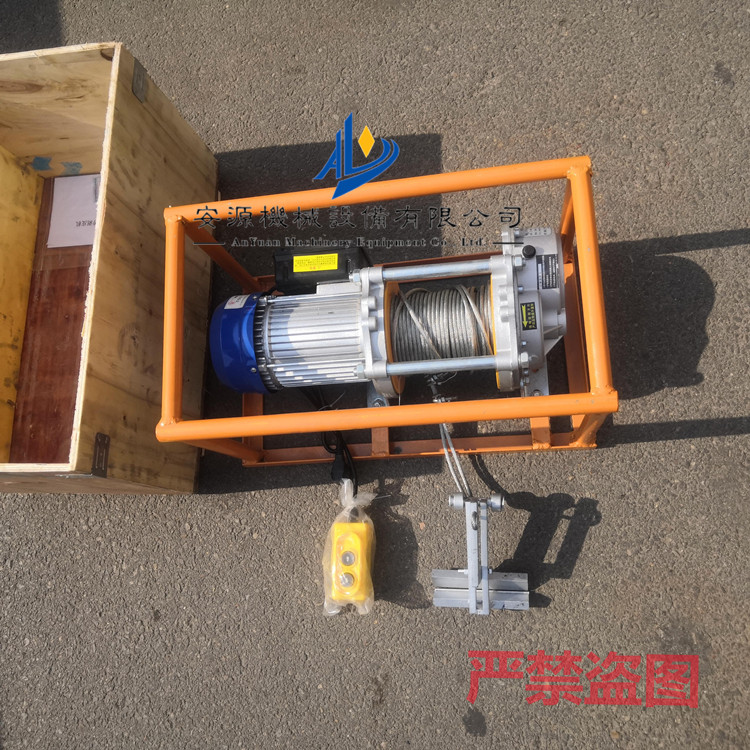

The XLP-100 electric stripping machine is composed of a handheld controller (1), motor (2), reducer (3), rope drum (4), rear fixing sleeve (5), handle (6), and mechanical arm (7). The motor's output power is reduced through a meticulously designed reducer, driving the rope drum to move the mechanical arm at one end in and out, completing the stripping operation.
Total length of steel wire rope:6 meters, when preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.
Before peeling with the stripper, use a fixing sleeve to secure the stripper in a sturdy location. Stripper machine... High tensile strength up to500 kg, so it needs to be sufficiently sturdy. If not achievable on-site, reduce the width of each剥层剥取 to decrease the tension.
Section 3: Strip work:
One operator operates the handheld controller Button, one person
Tighten the wire rope at the manipulator end until the manipulator reaches the stripping point.
The end of the belt. Tensioning the steel wire rope while uncoiling it is to prevent
Wire rope is loosely coiled on the drum.

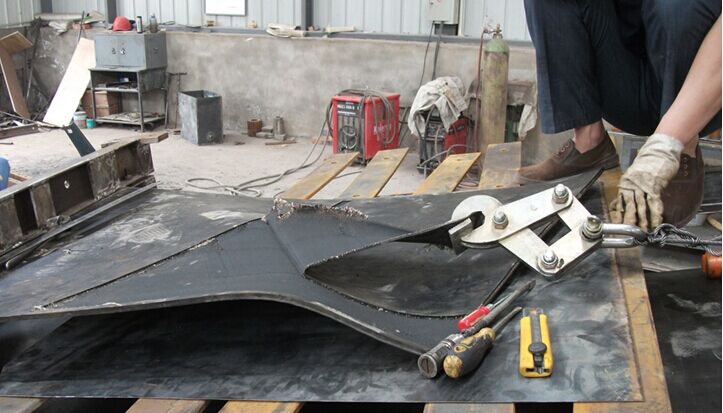

Clamp the end of the belt layer with the robotic arm and lift the arm
Handle, to separate the front panel from the movable panel. Fasten the belt layer
Push the end into the space between the two plates, press down the handle to clamp the belt. Hold down the handheld controller's Button to start peeling layers. The gripping force of the robotic arm on the belt is proportional to the tension of the steel wire rope. Therefore, once the steel wire rope is tightened, the operator can release the handle, allowing the robotic arm to move freely.
The剥layer machine can strip off one nylon belt at a time.350mm (with fractures on both sides along the stripping line). The width of the robot arm is 250mm.
Four, Important Notes and Troubleshooting:
1. This peeling machine operates on an intermittent basis and cannot be run continuously for extended periods.
2. In case of rope unwinding, the wire rope should be reorganized and properly coiled. Replace the wire rope if there is significant wear.
3. Maintenance should be scheduled based on usage frequency, typically once a year. Apply calcium-based grease to all moving parts such as rollers, reducers, and bearings.
