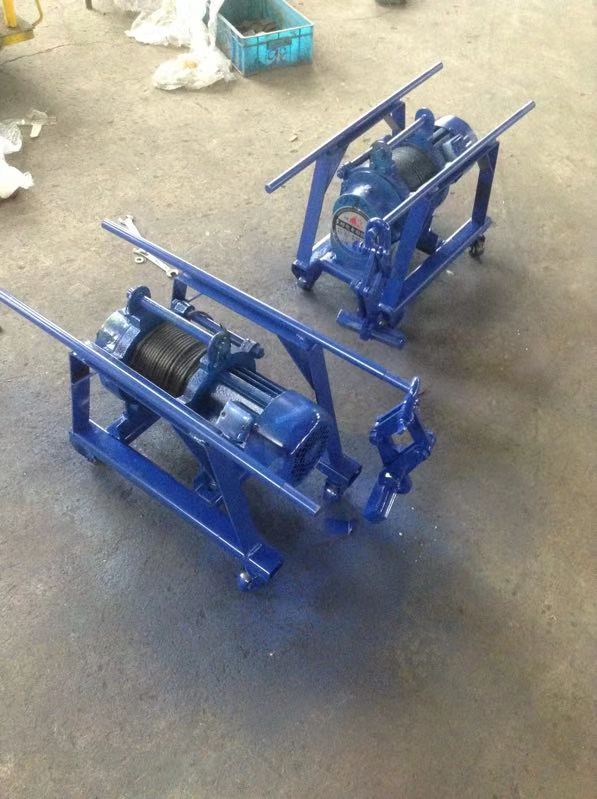

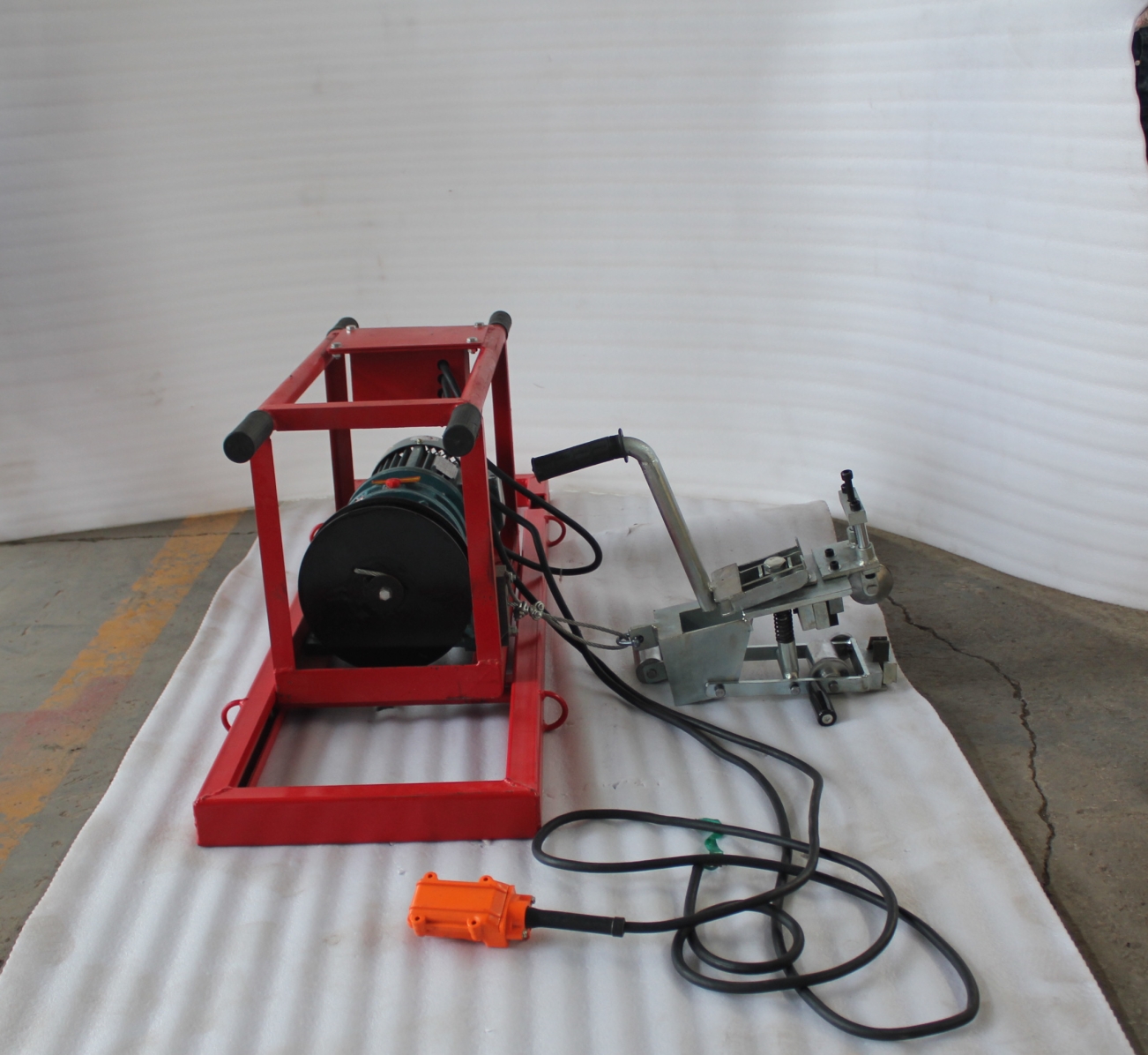

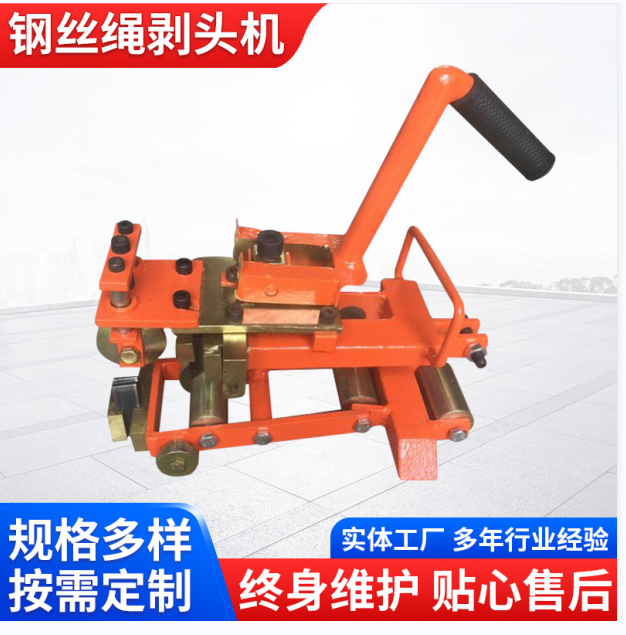

Electric Peel Layer Machine AY-BCJ, Conveyor Belt Peeling Machine, Steel Rope Core Belt Peeling Head Machine

Wire Rope Head Stripping Machine Application Range:

Separation of cover rubber from fabric core conveyor belts, cover rubber from steel wire rope cores, and between the fabric.

Wire Rope Head Stripping Machine Technical Specifications:

Power supply, voltage: 380V 50Hz

2. Power: 0.75 Kw, 1.1 Kw, 1.5 Kw, 3 Kw

3. Weight: 40KG, 45KG, 50KG, 55KG

4. Application Range: EP, NN, cotton duck, and various layered conveyor belts with joints, in widths ranging from 650mm to 2200mm.

Wire Rope Head Stripping Machine Features:

1. Large stripping area and fast speed, significantly reducing labor intensity and the time needed for joints.

2. Lightweight for easy carrying and handling.

3. Stable operation.

Wire Rope Head剥机操作指南:

1. Align the conveyor belt centerline by conventional methods, then cut and separate a layer at the corresponding joint with a knife.

2. Place the conveyor belt uncoiler in the appropriate position and secure it with a wire rope.

3. Power on.

4. Clamp the separated layer with a fixture, start the motor, and use a blade to cut the剥离部分 at the appropriate location.

After removing the first layer, repeat the above steps to strip off the second, third layers, etc.

Safety Precautions for Wire Rope Head Uncoiling Machine:

1. Power connection must be performed by a professional electrician.

2. Secure the剥头机 during use to prevent slippage.

3. Do not exceed the specified width during stripping.
