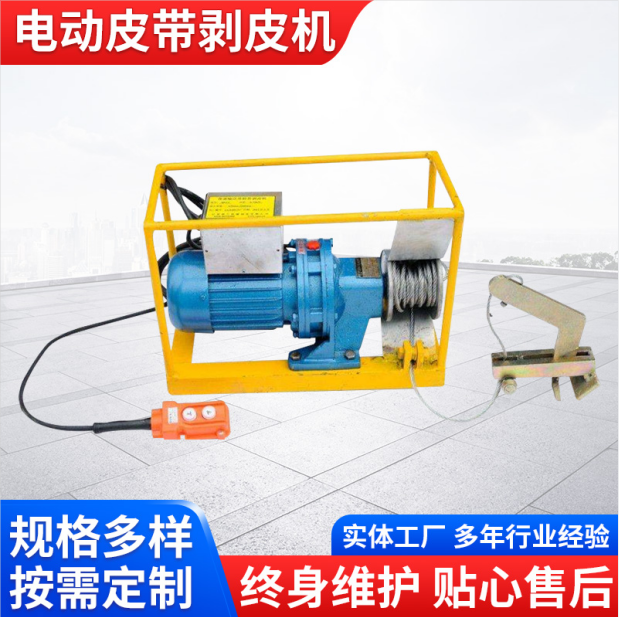

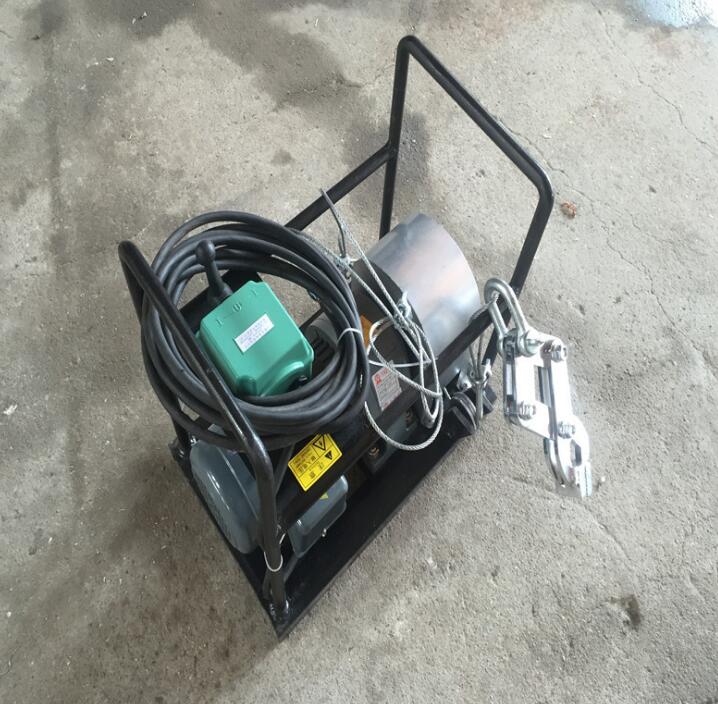

Belt Steel Core Stripper Machine BTJ-(4.9mm-12.9mm) Laminated Belt Peeling Machine

Separation of coverings for conveyor belts, such as fabric cores, steel wire rope cores, between the coverings and canvas, between the coverings and steel wire rope, and between the canvas.

Standard Conveyor Belt Peeling Machine Technical Specifications:

Power supply, voltage: 380V, 50Hz

2. Power: 0.75 Kw, 1.1 Kw, 1.5 Kw

3. Weight: 32 Kg

4. Application Range: EP, NN, cotton duck, and various layered conveyor belts with joints, in widths ranging from 650mm to 2200mm.

Features of Standard Conveyer Belt Peeling Machine:

1. Large stripping area and high speed significantly reduce labor intensity and minimize the time needed for connections.

2. Light in weight, easy to carry and transport.

3. Stable operation.

How to Use a Standard Conveyor Belt Peeling Machine:

1. Align the conveyor belt centerline as per standard procedures; the corresponding joint should be cut and separated layer by layer.

2. Place the conveyor belt uncoiler in the proper position and secure it with a steel wire rope.

3. Power on.

4. Clamp the separated layers with a fixture, start the motor, and use a blade to score the剥离 section at the appropriate location.

5. After layer stripping, repeat the above steps, stripping separately
