Used for stripping layers during conveyor belt splicing, especially suitable for nylon belt and canvas belt stripping. The stripping width for a nylon belt can reach350mm. Enhance joint efficiency and reduce labor intensity.

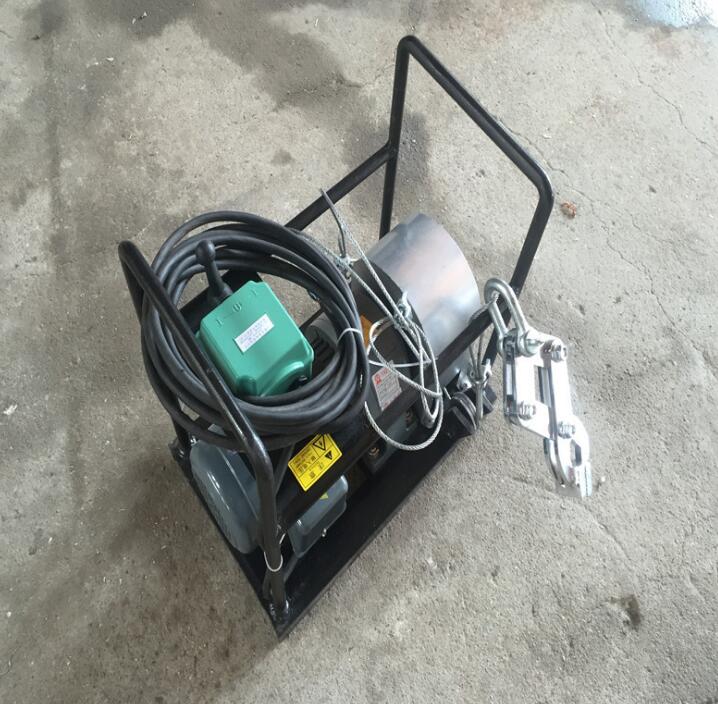

The XLP-100 electric stripping machine boasts the advantage of using a 220V voltage, which reduces the electrical preparation needed at the joint site. Additionally, the machine weighs only 21 kg and is equipped with a carry handle for easy portability.
II. Composition:

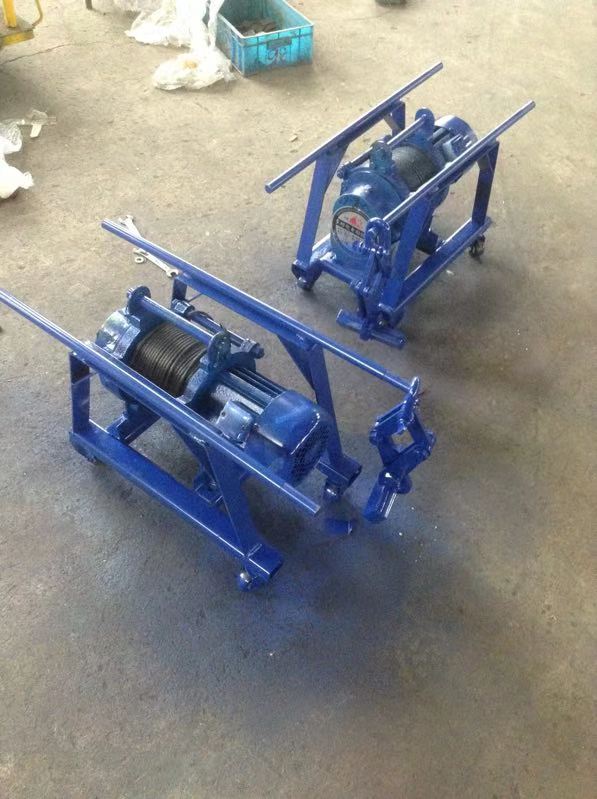

The XLP-100 electric peeling machine consists of a handheld controller (1), motor (2), reducer (3), wire rope drum (4), rear fixed sleeve (5), handle (6), and robotic arm (7). The motor's output power is reduced through a meticulously designed reducer, driving the wire rope drum to move the robotic arm at one end in and out, completing the peeling operation.
The total length of the wire rope is 6 meters. When preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.
Before peeling with the stripping machine, use a fixed sleeve to secure the machine to a sturdy location. The stripping machine's maximum pulling force is up to 500 kg, so it needs to be sufficiently strong. If this is not possible on-site, reduce the width of each strip to decrease the pulling force.Section 3: Peeling Operation
One person operates the handheld controller Button, one person
Tighten the wire rope at the robot's end until the robot reaches the stripping point
At the end of the belt. Tensioning the steel wire rope when unwinding is to prevent
The steel wire rope is loosely coiled around the drum.

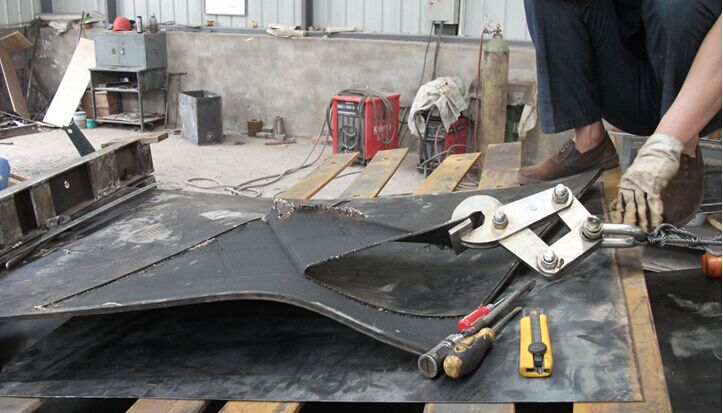

Grasp the end of the belt layer with a robotic arm and lift the arm.
Handle, separating the front and moving plates. Place the belt layer
Insert the end between the two clamps, press down the handle to clamp the belt. Hold the button on the handheld controller to start peeling layers. The gripping force of the robotic arm on the belt is proportional to the tension of the钢丝绳. Therefore, once the rope is tightened, the hand can release the handle, allowing the robotic arm to move freely.
This剥层机can peel off the layer from nylon tape in one go.350mm (in the case of fracture along both sides of the stripping line). The width of the mechanical arm is 250mm.
Four Caution and Troubleshooting:
1. This剥层machine operates on an intermittent basis and is not designed for continuous, long-term operation.
2. In case of rope slack, the wire rope should be reorganized and properly coiled. If there is significant wear, it should be replaced.
3. Maintenance should be conducted at regular intervals based on usage frequency, typically once a year. Apply calcium-based grease to all moving parts such as drums, reducers, and bearings.
