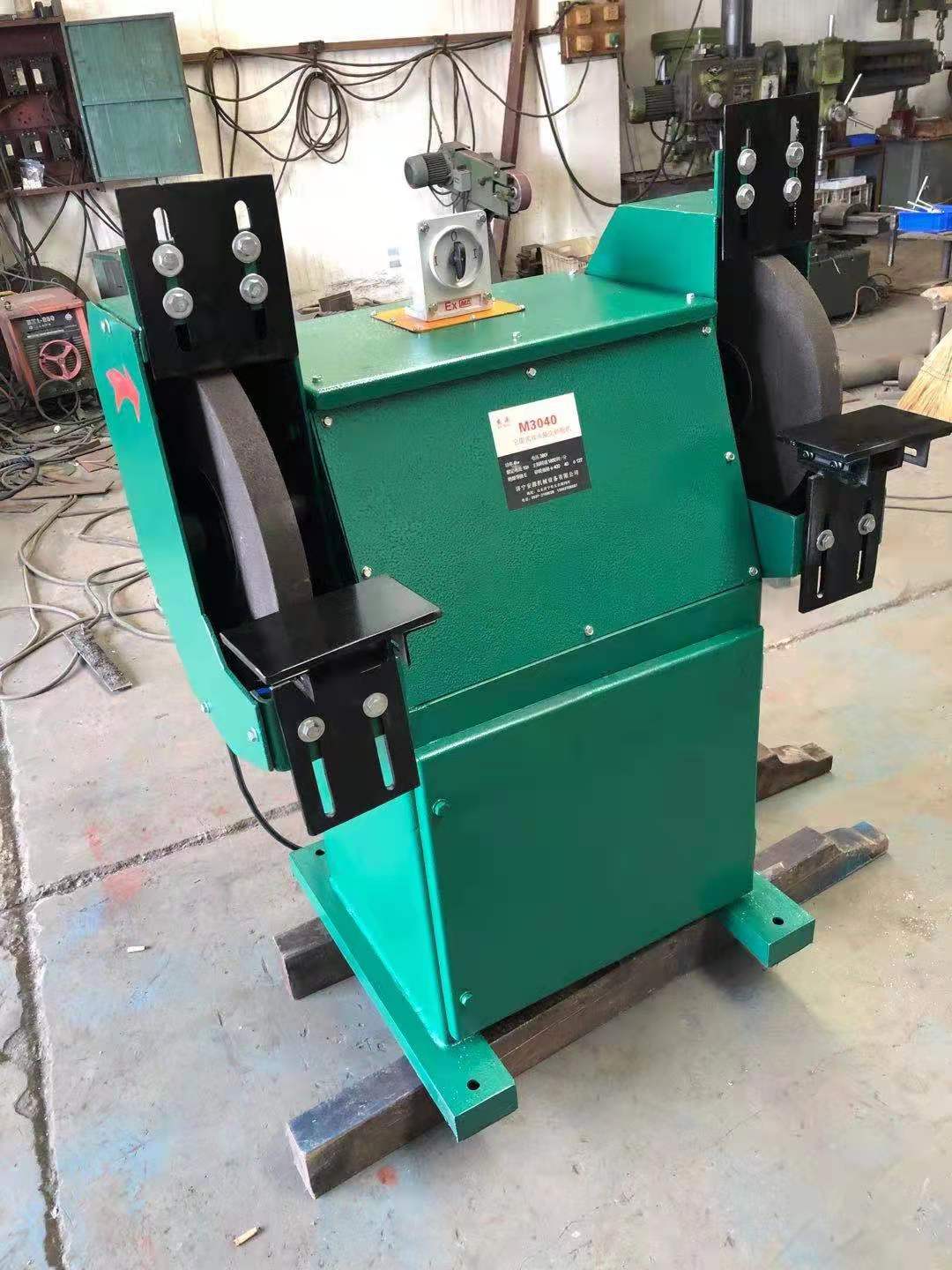

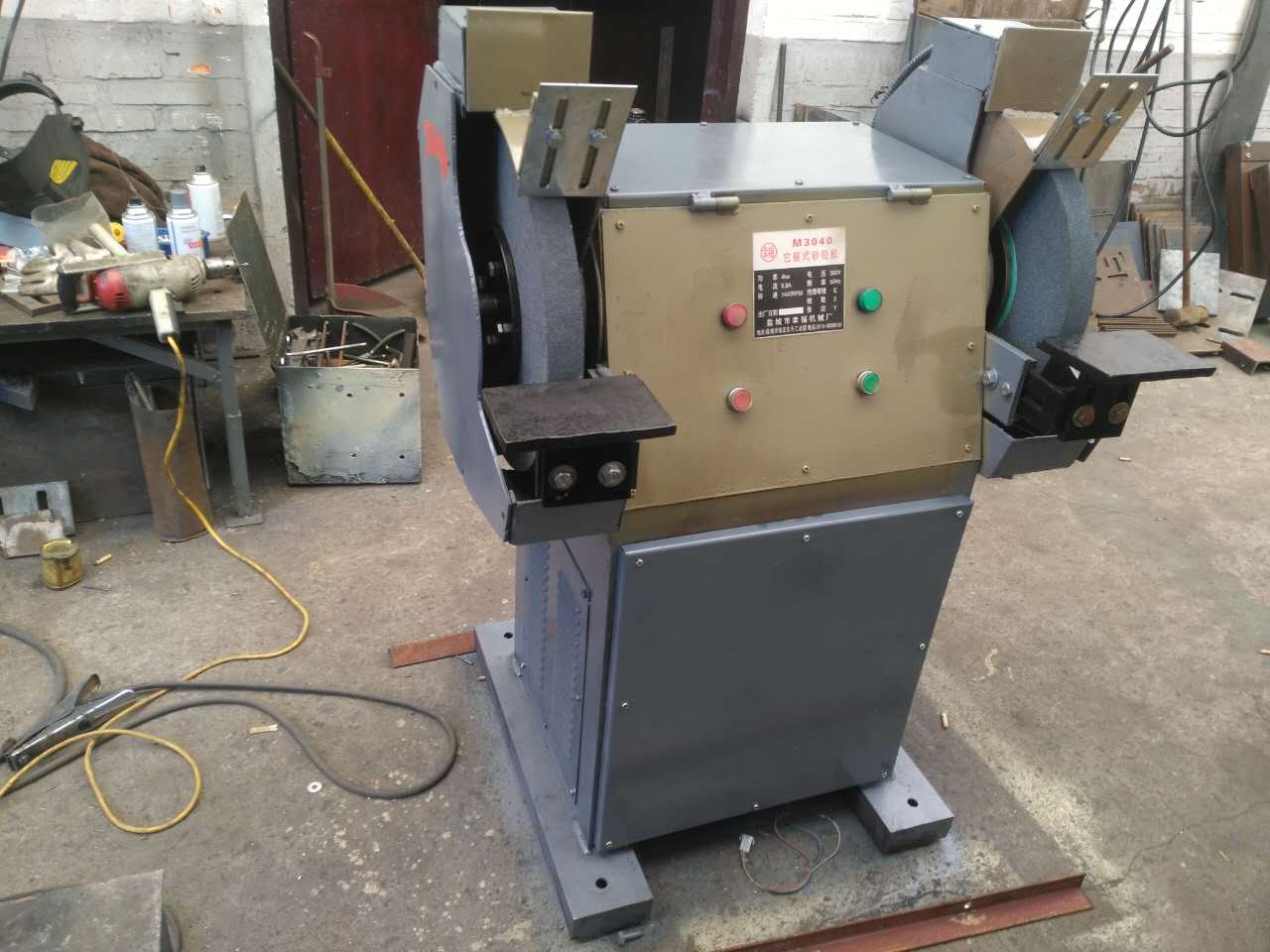

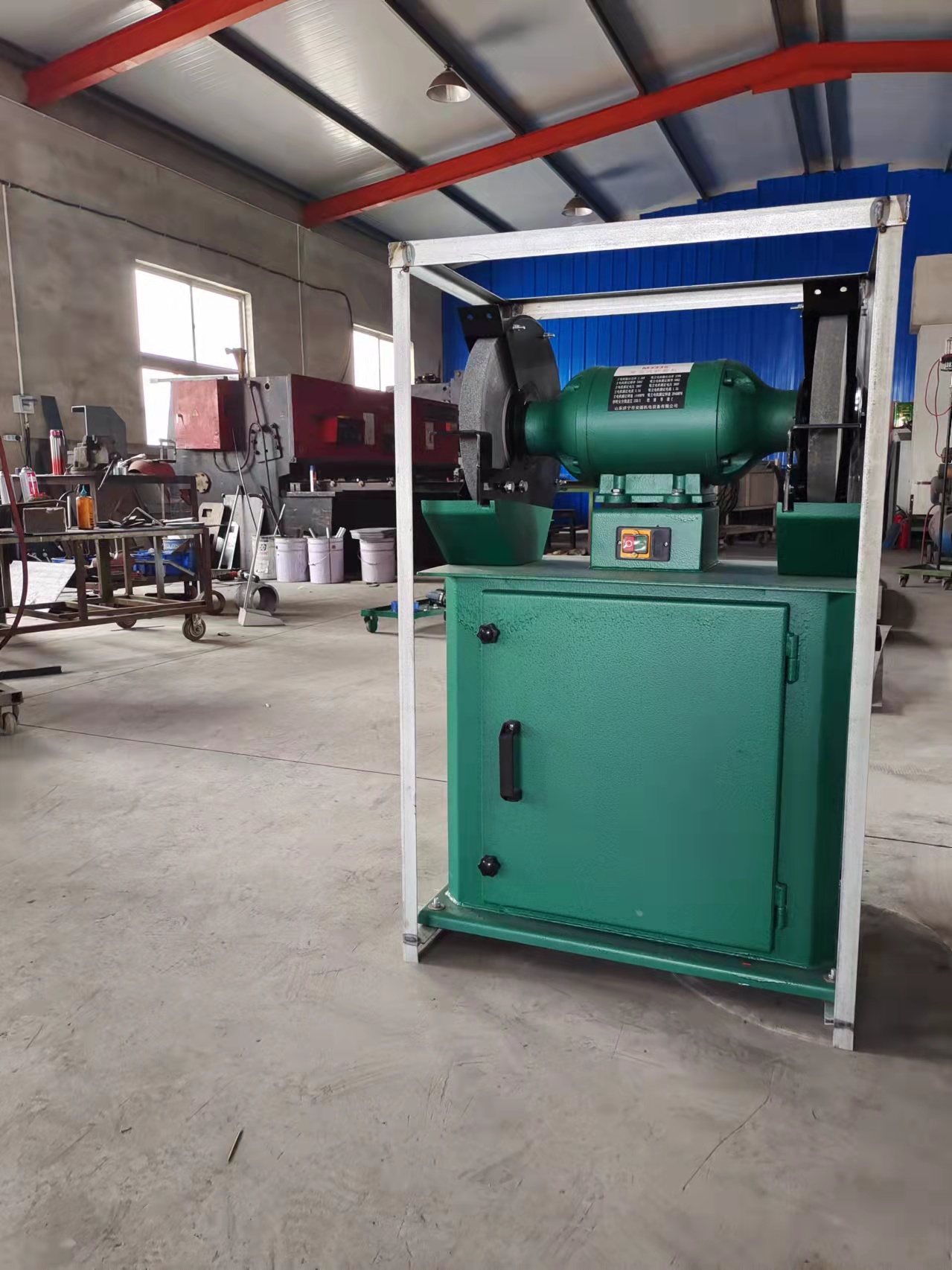

Dust-removing Grinding Wheel Machine, Diamond Grinding Wheel Machine, M3040 Driven Grinding Wheel Machine

Dust-extracting type grinding wheel machine, also known as a vacuum grinding wheel machine, is a safety and environmentally friendly type of grinding wheel machine.It can be divided into two types: bag-type and filter plate-type..

The M33 series dust-extraction grinding wheel machine is a new dust-extraction grinding wheel machine improved upon the original top-quality product, the MC30 series dust-extraction grinding wheel machine.

The dust-removing grinding wheel machine is primarily used by general industrial and mining enterprises for sharpening cutting tools and can also grind small parts, deburr, and clean up.

2. Dust-extracting grinding wheels are suitable for use in humid tropical regions up to an altitude of 1,000 meters, with surrounding air relative humidity not exceeding 90%, and ambient temperatures not higher than +40℃.

3. This unit employs bag dust collection, achieving an efficiency of over 98%, with dust concentration less than 10 mg/m³. It complies with the safety regulations of the National Ministry of Labor and Human Resources and the Ministry of Environmental Health, offering excellent dust collection performance, improving the working environment, and protecting operators from dust exposure.

4. Dust removal grinding wheels are not resistant to chemical corrosion and must not be used outdoors.

Instructions for Use:

The grinding wheel machine must be tested with a megohmmeter of over 500 volts before use, and its insulation resistance must be no less than 0.5 megohms.

2. Before use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and check for loose fasteners. Any issues should be repaired and tightened. Pay special attention to the absence of cracks in the grinding wheel. A light tap with a wooden mallet should produce a clear, crisp sound before it can be used.

3. Prior to use, the grinding wheel machine should be manually rotated to check for smooth and quick movement, and listen closely for any rubbing or grinding sounds.

4. The direction of rotation for grinding wheels and fans should match the direction indicator.

5. During operation, do not allow the workpiece to collide with the grinding wheel. Apply pressure gradually to prevent shock to the grinding wheel, avoiding explosion and accidental incidents.

6. The abrasive wheel machine guard is strictly prohibited from being removed except for the replacement of the abrasive wheel and maintenance repairs.

7. Two grinding wheels on medium grit wheel machine, the difference in their wear diameter does not exceed 20%.
