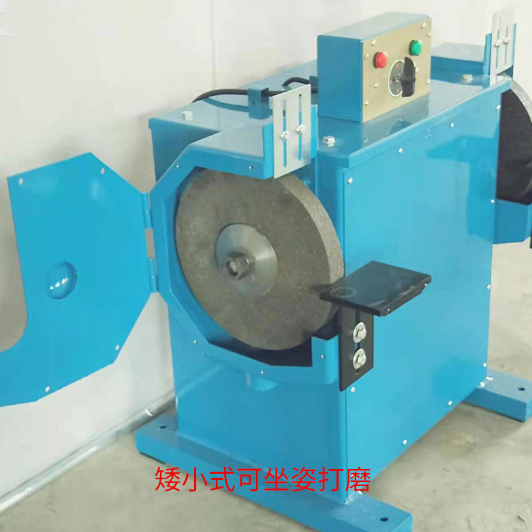

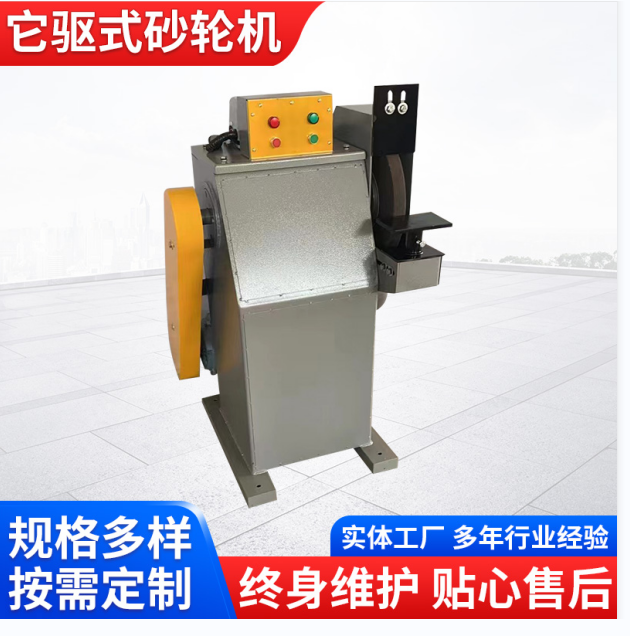

Self-Driven Floor-Mounted Grinding Wheel Machine, MTF3040 Electric Grinding Wheel Machine, Drive-Type Grinding Wheel Machine
Composed mainly of the drive mechanism, sanding belt tensioning mechanism, contact wheels (grinding wheels), supports, feet, casters, sanding belts, and hand push rods. The motor transmits power directly to the drive wheel, which drives the sanding belt to rotate at high speed. The sanding belt is tensioned by the tensioning mechanism, and grinding is performed using the contact wheels. Depth adjustment devices are set on both sides of the contact wheels to control the grinding depth, ensuring that the weld seam is flattened without damaging the base material.
Primarily used for grinding flat seam joints, this machine can also be used for polishing flat surfaces.
Main Technical Parameters:
1. Sanding Belt Specifications (Width): 150mm
2. Sanding Belt Grain Size: 36-320#
3. Belt Speed: 33 m/s
4. Motor Power: 4 kW, Speed: 2880 rpm
5、Overall Weight:120kg
