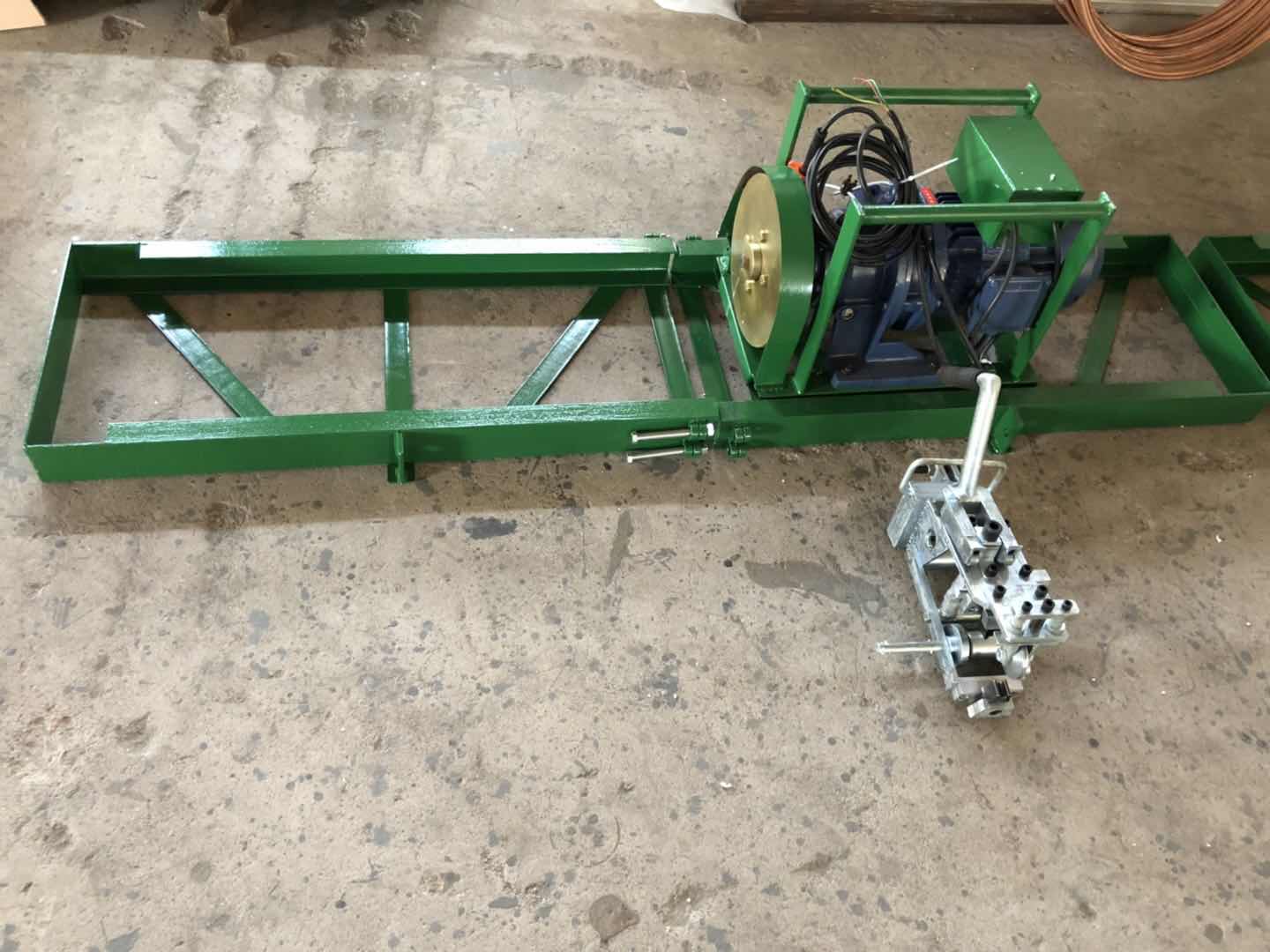

AY-BPJ Electric Peel Machine (Belt Peeling Machine) Steel Wire Rope Core Stripper

For stripping layers during conveyor belt splicing, especially suitable for nylon and canvas belt stripping. The nylon belt can strip layers up to a width of350mm. Enhance jointing efficiency and reduce labor intensity.

The XLP-100 electric stripping machine boasts the advantage of using a 220V voltage, which eases the electrical preparation at the joint site. Additionally, the machine weighs only 21 kg and comes with a handle for easy portability.II. Composition:

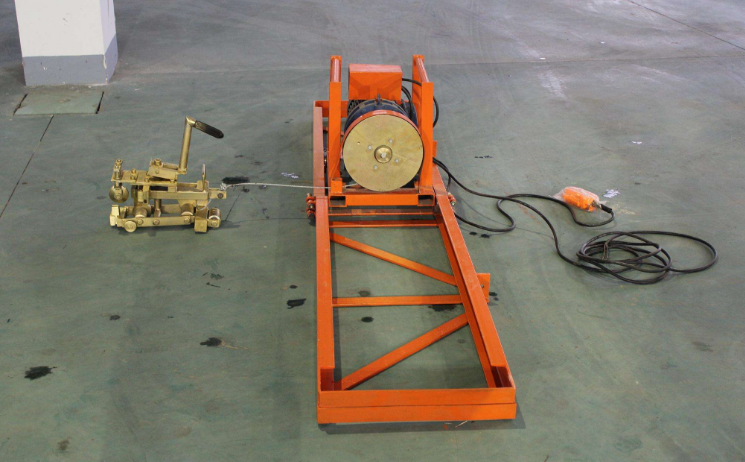

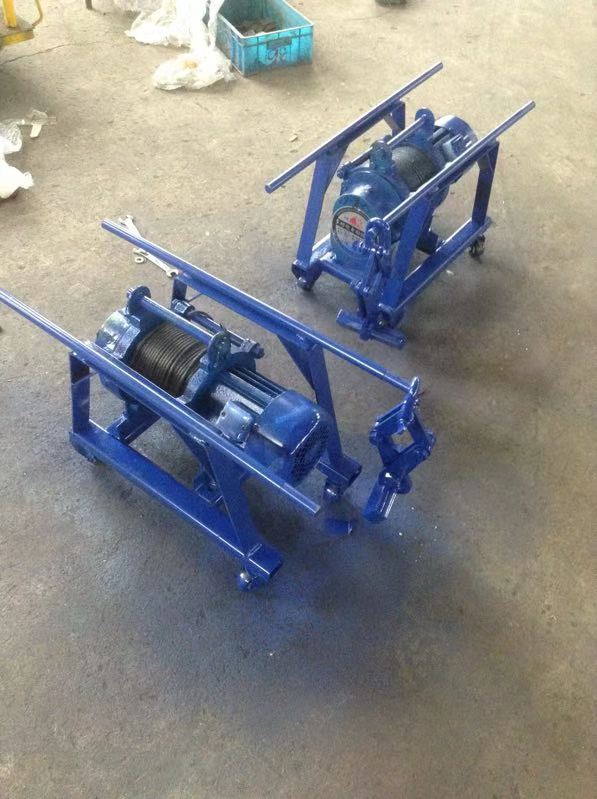

The XLP-100 Electric Peeler is composed of a handheld controller (1), an electric motor (2), a reducer (3), a rope drum (4), a rear fixed sleeve (5), a handle (6), and a robotic arm (7). The electric motor outputs power, which is then reduced by a carefully designed reducer to drive the rope drum. This movement causes the robotic arm at one end of the rope to extend and retract, thus completing the peeling operation.

The total length of the wire rope is 6 meters. When preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.

Before peeling with the stripping machine, use a fixed sleeve to secure the machine to a sturdy location. The stripping machine's maximum pulling force is up to 500 kg, so it needs to be sufficiently strong. If this is not possible on-site, reduce the width of each strip to decrease the pulling force.

剥层 Operation

One person operates the handheld controller button, while another

Tighten the wire rope at the manipulator end until the manipulator reaches the stripping point.

The belt end. Tensioning the steel wire rope when unwinding is to prevent

The steel wire rope is loosely coiled around the drum.

 Clamp the end of the belt layer with the mechanical arm and lift the arm.

Handle; separate the front board from the movable board. Fasten the belt layer

 Insert the end into the space between the two clamps, press down the handle to grip the belt. Hold the button on the handheld controller to start peeling layers. The gripping force of the mechanical arm on the belt is proportional to the tension of the steel wire rope. Therefore, once the wire rope is tightened, the hand can release the handle, allowing the mechanical arm to move freely.

 The剥layer machine can peel off one nylon belt at a time.350mm (with the two sides of the stripping line already fractured). The width of the robot arm is 250mm.
