OneFeature Overview

    剥 layering for conveyor belt joints, especially suitable for nylon and canvas belts.剥 layering width180mm. Enhance joint efficiency and reduce labor intensity.

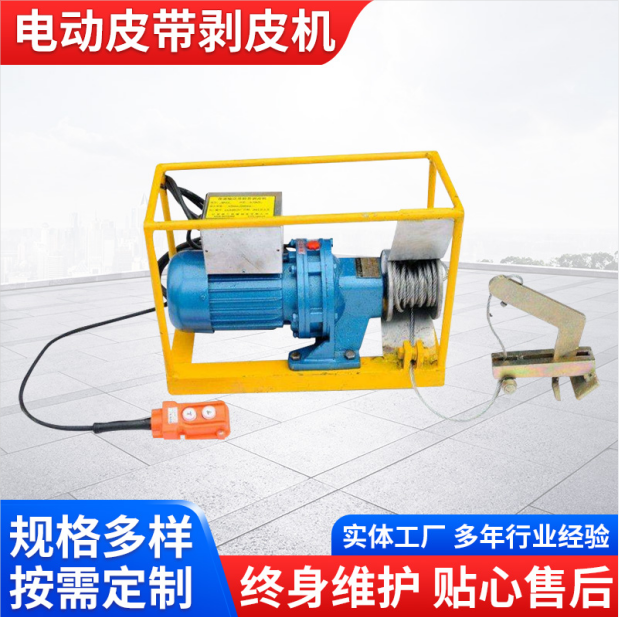

   The advantages of the XLP-200 electric剥皮machine include its use of a 220V voltage, which significantly reduces the electrical preparation required at the joint site. Additionally, the machine is only35Weighing in at kilograms, equipped with a carry handle for easy portability.

Two  Composition

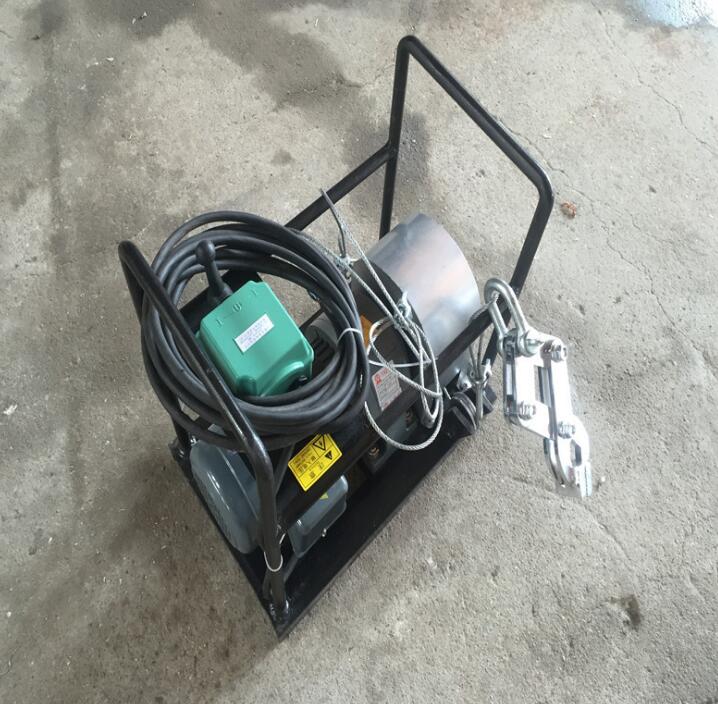

       XLP-200Type Electric Peel Layer Machine with handheld controller (1) Motor (2), Gearbox (3), Rope Drum (4), Rear Retainer (5), Robotic Arm (6), Handle (7) constitute. The motor's output power is reduced through a meticulously designed gearbox, driving the rope drum to move the robotic arm at one end in and out, completing the stripping operation.

Total length of wire rope is 6 meters. During preparation for stripping, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 5.5 meters.

      Before peeling with the剥层机, it can be secured in place using a fixed sleeve on a sturdy support. The剥层机的tension can reach300Kilograms, so it needs to be sufficiently sturdy. If not achievable on-site, reduce the width of each layer peeled to decrease the tension.

This剥层机can peel off one layer of nylon tape at a time.180mm(With the two sides of the stripping line already fractured). The width of the robotic arm is160mm。
